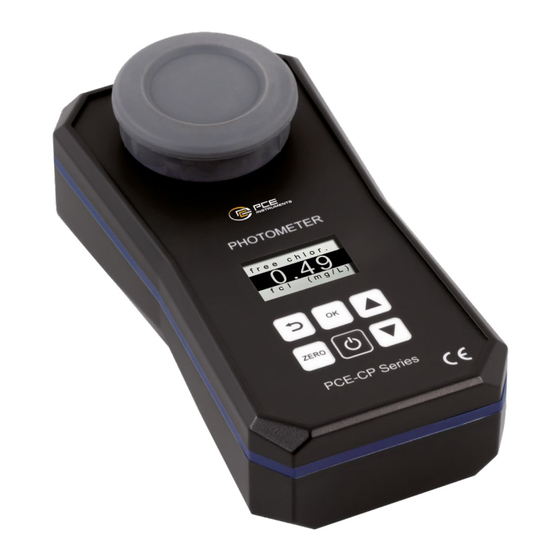

PCE Instruments PCE-CP Series User Manual
  1. Manuals
  2. Brands
  3. PCE Instruments Manuals
  4. Measuring Instruments
  5. PCE-CP Series
  6. User manual
PCE Instruments PCE-CP Series User Manual

PCE Instruments PCE-CP Series User Manual

Hide thumbs Also See for PCE-CP Series:

Advertisement

Quick Links

Download this manual
USER MANUAL
PHOTOMETER
PCE-CP SERIES
User manuals in various languages (français, italiano, español, português, nederlands,
türk, polski) can be found via our product search on:
www.pce-instruments.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the PCE-CP Series and is the answer not in the manual?

Questions and answers

Related Manuals for PCE Instruments PCE-CP Series

Summary of Contents for PCE Instruments PCE-CP Series

  • Page 1 USER MANUAL PHOTOMETER PCE-CP SERIES User manuals in various languages (français, italiano, español, português, nederlands, türk, polski) can be found via our product search on: www.pce-instruments.com...

  • Page 2: Safety Notes

    After using the PHMB reagent, be sure to follow the instructions in section 10.12 PHMB as otherwise, discolouration of the cuvette may occur, which will falsify later measurement results. The photometers of the PCE-CP series are also suitable for salt water pools / pools with salt electrolysis.

  • Page 3: System Description

    SYSTEM DESCRIPTION Device The photometers of the PCE-CP series are suitable for the determination of water quality on the basis of up to thirteen different parameters. The field of application ranges from maintenance and servicing of pool systems to more complex series of measurements in a laboratory environment. For the latter, the automatic storage of measured values which can be read out and documented via a Bluetooth interface using the provided software or app is of particular interest.

  • Page 4: Specifications

    Function keys Description Function ON/OFF Meter on/off, stop countdown ZERO Start ZERO measurement BACK Back Confirm, start measurement Navigate up DOWN Navigate down SPECIFICATIONS Technical specifications Light source 530 nm / 570 nm / 620 nm LED Light detector Photodiode Calibration Zero point calibration Standard unit...

  • Page 5: Battery Replacement

    Delivery contents The delivery contents are the same for all meters of the PCE-CP series 1 x Photometer PCE-CP 04 / 10 / 11 / 20 / 21 / 22 / 30 incl. cuvette 1 x Replacement cuvette 1 x Light protection cover...
  • Page 6 ZERO When the start screen appears, the display shows „ZERO“. Before you can enter the main menu, the ZERO procedure must be performed once. Proceed as follows: » Before filling the cuvette, make sure that it is clean and that there are no reagent residues on it. »...

  • Page 7: Measured Parameters

    MEASURED PARAMETERS Reagents marked with a superscript ‚!‘ are not included in the starter kit and therefore not part of the standard version. pH value (all devices of the PCE-CP series) 6.50 … 8.40 pH Reagent: PCE-CP X0 Tab Phenol Red The alkalinity value must be at least 50 mg/l to ensure a correct pH measurement.
  • Page 8 Chlorine (PCE-CP 10, PCE-CP11, PCE-CP 20, PCE-CP 21, PCE-CP 30) Free chlorine 0.00 … 8.00 mg/l Reagent: PCE-CP X0 Tab DPD 1 » Clean the instrument as described in „General information“ and, if desired or necessary, perform the ZERO procedure. »...
  • Page 9 Alkalinity (PCE-CP 04, PCE-CP 10, PCE-CP 20, PCE-CP 30) The unit in which the alkalinity is indicated can be set in the settings menu „Hardness Unit“, see chapter Hardness Unit. 0 … 200 mg/l CaCO3 Reagent: PCE-CP X0 Tab Alkalinity »...
  • Page 10 Chlorine dioxide (PCE-CP 30) 0.00 … 11.40 mg/l Only if the water sample contains chlorine in addition to chlorine dioxide (e. g. if both disinfectants (chlorine and chlorine dioxide) are used), procedure A with the Glycine tablet must be followed. If the sample contains only chlorine dioxide and no chlorine, follow procedure B.
  • Page 11 Bromine (PCE-CP 21, PCE-CP 30) 0.0 … 13.5 mg/l Only if the water sample contains chlorine as well as bromine (e. g. if both disinfectants (chlorine and bromine) are used), procedure A with the Glycine tablet must be followed. If the sample contains only bromine and no chlorine, follow procedure B.
  • Page 12 Ozone (PCE-CP 30) 0.00 … 4.00 mg/l Only if the water sample contains chlorine in addition to ozone (e. g. if both disinfectants (chlorine and ozone) are used), procedure B, using the Glycine tablet, must be followed. If the sample contains only ozone and no chlorine, follow procedure A.
  • Page 13 Hydrogen peroxide (PCE-CP 30) Hydrogen peroxide low range 0.00 … 2.90 mg/l Reagent: PCE-CP X0 Tab Hydrogen Peroxide LR » Clean the instrument as described in „General information“ and, if desired or necessary, perform the ZERO procedure. » Navigate through the main menu until the parameter H LR is displayed.
  • Page 14 Water hardness The unit in which the water hardness is indicated can be set in the settings menu „Hardness unit“, see chapter Hardness Unit. Total hardness 0 … 500 mg/l Reagents: PCE-CP X0 Tab Kit Total Hardness » Clean the instrument as described in „General information“ and, if desired or necessary, perform the ZERO procedure.
  • Page 15 Urea (PCE-CP 22, PCE-CP 30) 0.1 … 2.5 mg/l Reagents: PCE-CP X0 Tab PL Urea N°1 , PCE-CP X0 Tab PL Urea N°2 , PCE-CP X0 Tab Ammonia N°1 PCE-CP X0 Tab Ammonia N°2 or PCE-CP X0 Tab Kit Urea »...
  • Page 16 PHMB (PCE-CP 30) 5 … 60 mg/l Reagent: PCE-CP X0 Tab PHMB » Clean the instrument as described in „General information“ and, if desired or necessary, perform the ZERO procedure. » Navigate through the main menu until the parameter PHMB is displayed. »...
  • Page 17 Nitrate (PCE-CP 22) 1 … 100 mg/l NO Reagent: PCE-CP X0 Tab Kit Nitrate » Clean the instrument as described in „General information“ and, if desired or necessary, perform the ZERO procedure. » Navigate through the main menu until the parameter NO is displayed.
  • Page 18 Ammonia (PCE-CP 22) 0.00 … 1.21 mg/l NH Reagents: PCE-CP X0 Tab Ammonia N°1 , PCE-CP X0 Tab Ammonia N°2 » Clean the instrument as described in „General information“ and, if desired or necessary, perform the ZERO procedure. » Navigate through the main menu until the parameter NH is displayed.
  • Page 19 Copper (PCE-CP 22) 0.00 … 5.00 mg/l Cu Reagent: PCE-CP X0 Tab CU » Clean the instrument as described in „General information“ and, if desired or necessary, perform the ZERO procedure. » Navigate through the main menu until the parameter Cu is displayed. »...

  • Page 20: Troubleshooting

    TROUBLESHOOTING OR-UR / dilution OR = Overrange / UR = Underrange The test result is outside the measurement range of this method. OR results can be brought into the mea- surement range by dilution. Use the dispensing pipette to take a 5 ml (or 1 ml) sample. Fill the sample into the cuvette and add 5 ml (9 ml) of distilled water.
  • Page 21 ACCESSORIES Reagents Order code Description PCE-CP X0 Tab DPD 4 50 DPD N° 4 Tablets active oxygen PCE-CP X0 Tab Alkalinity 50 Tablets for alkalinity m value PCE-CP X0 Tab Cyanuric Acid 50 Tablets for cyanuric acid PCE-CP X0 Tab DPD 1 50 Tablets DPD N°...
  • Page 22 App for Android: App for iOS: Connect a meter of the PCE-CP Series to the app or software before using it for the first time, after repla- cing the batteries and after each update to set the date and time automatically.
  • Page 23 Structure and navigation The structure of the software and the app only differs in a few details. After starting the software / app, you will see the LabCom logo and the software version in the main screen. In the software, you will find the main menu on the left-hand side in the form of a navigation column.
  • Page 24 There is one calculator each for the RSI/LSI index, for active chlorine and for different water care products. Furthermore, there is a list of the ideal ranges of all parameters measurable by the PCE-CP Series. Settings In the settings, you can change the language of the application. You can also reset the database here, which means that all measurements and accounts are deleted.
  • Page 25 In the main menu item Support, you will find two tabs. The first tab, marked by an open book, contains a download link for this manual. The second tab which shows a stylized globe, contains links which lead you to the product and support websites of PCE Instruments. SPECIFICATIONS OF PARAMETERS...
  • Page 26 Calcium hardness Measurement range (mg/l) Accuracy ± Resolution 0 … 25 8 mg/l 25 … 100 22 mg/l 1 mg/l 100 … 300 34 mg/l 300 … 500 45 mg/l Chlorine (free / total) Measurement range (mg/l) Accuracy ± Resolution 0.00 …...
  • Page 27 Hydrogen peroxide – (LR) Measurement range (mg/l) Accuracy ± Resolution 0.00 … 0.50 0.05 mg/l 0.50 … 1.50 0.12 mg/l 0.01 mg/l 1.50 … 2.00 0.36 mg/l 2.00 … 2.90 0.48 mg/l Hydrogen peroxide – (HR) Measurement range (mg/l) Accuracy ± Resolution 0 …...
  • Page 28 PHMB Measurement range (mg/l) Accuracy ± Resolution 0 … 30 3 mg/l 1 mg/l Total hardness Measurement range (mg/l) Accuracy ± Resolution 0 … 30 3 mg/l 30 … 60 5 mg/l 60 … 100 10 mg/l 1 mg/l 100 … 200 17 mg/l 200 …...
  • Page 29 Nitrate Measurement range (mg/l) Accuracy ± Resolution 0 … 20 2 mg/l 20 … 40 4 mg/l 1 mg/l 40 … 60 6 mg/l 60 … 100 10 mg/l Phosphate Measurement range (mg/l) Accuracy ± Resolution 0.00 … 0.40 0.04 mg/l 0.01 mg/l 0.40 …...
  • Page 30 Copper Measurement range (mg/l) Accuracy ± Resolution 0.00 … 2.00 0.20 mg/l 0.01 mg/l 2.00 … 3.00 0.31 mg/l 3.00 … 5.00 0.44 mg/l Potassium Measurement range (mg/l) Accuracy ± Resolution 0.8 … 3.0 0.3 mg/l 3.0 … 7.0 0.4 mg/l 0.1 mg/l 7.0 …...
  • Page 31 We either re-use them or give them to a recycling company which disposes of the devices in line with law. For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments. PCE INSTRUMENTS CONTACT INFORMATION...
