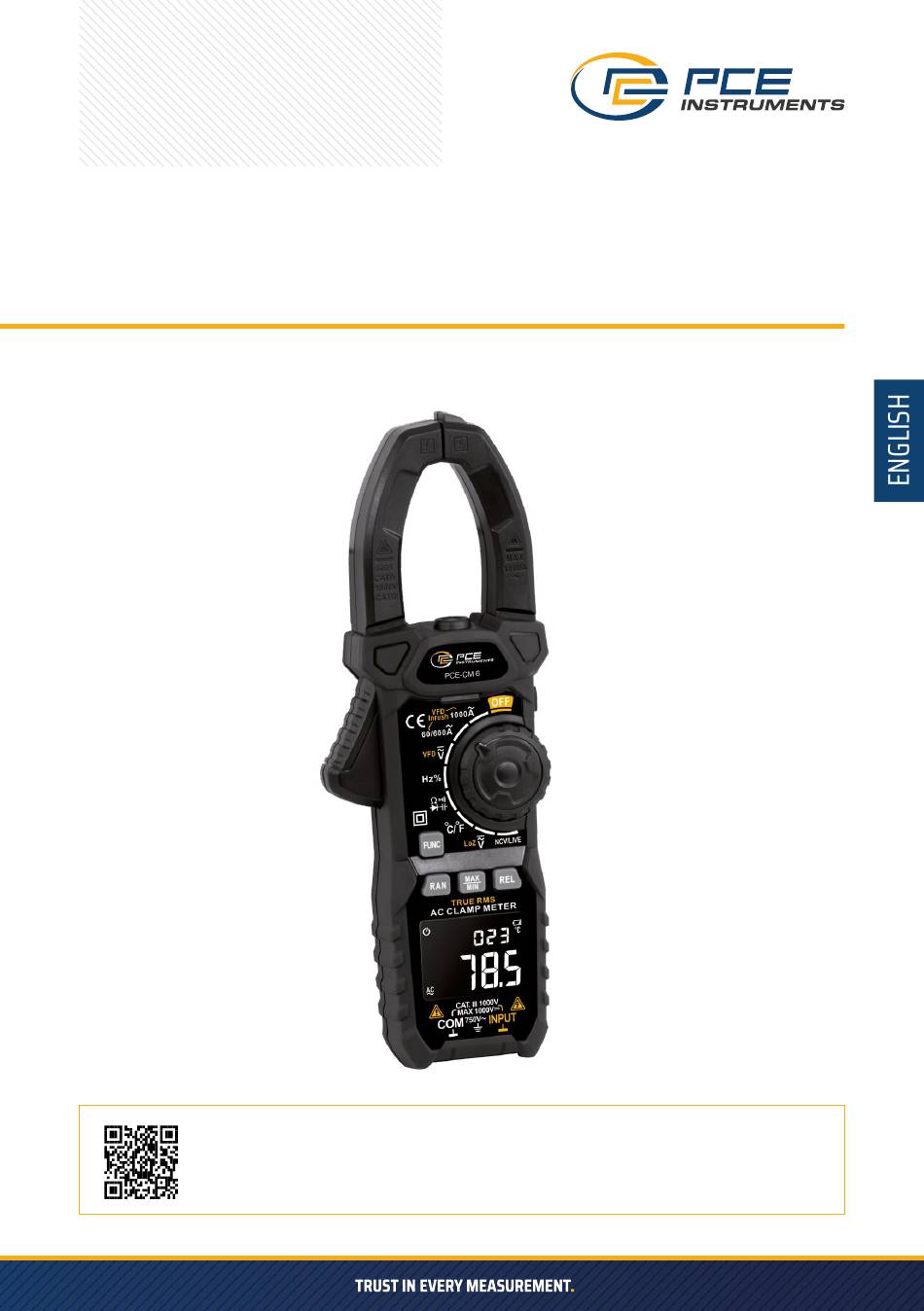

- Page 1 USER MANUAL DIGITAL CLAMP METER PCE-CM 6 User manuals in various languages (français, italiano, español, português, nederlands, türk, polski) can be found via our product search on: www.pce-instruments.com...
-
Page 2: Safety Information
INTRODUCTION This meter is a double impedance high performance true RMS digital clamp meter, which integrates multip- le functions, makes your work easier, more efficient and safer. It can measure AC/DC voltage, AC/DC current, frequency, duty, resistance, capacitance, temperature, diode, NCV, VFD, inrush current, etc. -
Page 3: Safety Symbols
» Do not use the instrument around explosive gas, steam or in wet environment. » When using the probe, please put your fingers behind the finger protector of the probe. » When measuring, please connect the neutral wire or the ground wire firstly, then connect the live wire; When disconnecting, please disconnect the live wire firstly, then disconnect the neutral wire and ground wire. -
Page 4: Panel Description

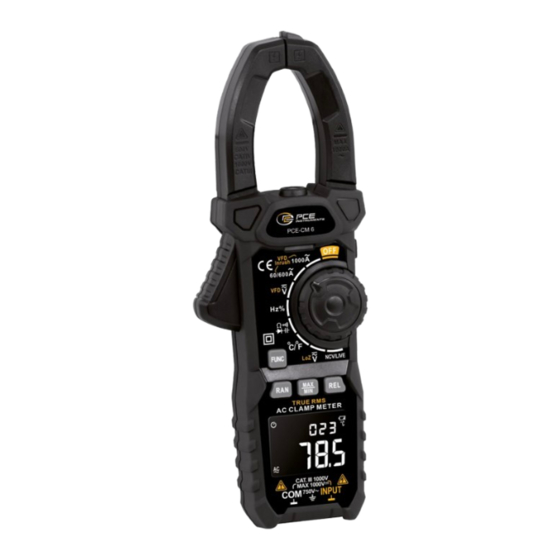

PANEL DESCRIPTION 1. N CV senser 2. Clamp 3. Flashlight 4. Knob switch 5. Function key 6. Display 7. Measuring input jack 8. Trigger FUNCTION OPERATION Function selection key When there are multiple functions in one position, press this key to switch. Range selection key When the meter is turned on, the meter defaults to the AUTO range mode and displays the „auto“... - Page 5 Relative Value Key In the current, voltage, resistance, capacitance and temperature, this key is the relative value key. Press this key to turn on relative value measurement, the display screen will display „REL“, and press it again to exit the relative value measurement function. Data Hold/Flashlight Key Press this key to turn on data hold, and the display screen displays „H“...
- Page 6 VFD current measurement » Turn the knob to Ã, and select Proper range (60/600A or 1000A), Press „FUNC“ key until the „VFD“ character is displayed. » Then press the trigger to open the clamp, clamp the conductor to be tested, and then slowly release the trigger until the clamp are completely closed, and determine whether the conductor to be tested is clamped in the center of the pliers, if the conductor is not in the center of the pliers, additional errors will occur.
- Page 7 VFD Voltage measurement » Turn the knob to V or LoZ V , Press „FUNC“ key until the „VFD“ character is displayed. » Insert red probe to “INPUT” jack, insert black probe to “COM” jack. » Connect the probe with voltage source or both ends of load in parallel for measurement. »...
- Page 8 Frequency/duty measurement » Turn the knob to Hz% » Insert red probe to “INPUT” jack, insert black probe to “COM” jack. » Connect the probe with voltage source or both ends of load in parallel for measurement. » Read the measurement results on the display. WARNING »...
- Page 9 Diode test » Turn the knob to , Press key „FUNC“ until the Symbol is displayed. » Insert red probe to “INPUT” jack, insert black probe to “COM” jack. » Connect the red probe to diode anode and connect the black probe to diode cathode. »...
- Page 10 Non-contact AC Voltage (NCV) Detection » Turn the knob to NCV/LIVE , the “NCV” symbol is displayed » Then NCV sensor gradually approaches the detected point. » When a weak electromagnetic field signal is sensed, the „---L“ character is displayed, the buzzer emits a slow beep sound, and the green LED indicator light is on.
-
Page 11: General Technical Specifications
GENERAL TECHNICAL SPECIFICATIONS » Environment condition of using: Safety: IEC 61010-1, Pollution level 2 IEC 61010-2-032: CAT III 1000V / CAT IV 600V IEC 61010-2-033: CAT III 1000V / CAT IV 600V Altitude < 2000m. Working environment temperature and humidity: 0 ... - Page 12 DC voltage Range Resolution Accuracy 600mV 0.1mV 0.001V ±(0.5%reading+5) 0.01V 600v 0.1V 1000V ±(0.8%reading+5) Input impedance: 10MΩ (LoZ:300kΩ) Overload protection: AC750V / DC1000V Maximum input voltage: AC750V / DC1000V Note: In the small voltage range, when the probe is not connected to the measuring circuit, the meter display reading may not be zero, which is normal and will not affect the normal measurement.
- Page 13 Resistance Range Resolution Accuracy 600Ω 1Ω 6KΩ 0.001 KΩ ±(1.0%reading+5) 60KΩ 0.01 KΩ 600KΩ 0.1KΩ 6MΩ 0.001 MΩ 60MΩ 0.01 MΩ Overload protection: 250V Diode/Continuity <approx. 30Ω, the buzzer sounds Test Voltage Approx. 1V and the LED light on Overload protection: 250V It displays the approximate for- Forward DC current is about 1.5mA ward voltage value of the diode...
- Page 14 Frequency/duty Range Resolution Accuracy 10Hz 0.001Hz 100Hz 0.01Hz ±(1.0%reading+3) 1000Hz 0.1Hz 10KHz 0.001KHz 100kHz 0.01kHz 1000kHz 0.1kHz 10MHz 0.001MHz ±(3.0%reading+3) 1~99% 0.1% Overload protection: 250V; Hz/Duty: Range: 0 ... 10MHz Voltage sensitivity: 0.5 ... 10V AC (As the frequency increases, the voltage should increase accordingly.) Through mode V: Range: 10Hz ...
-
Page 15: Maintenance
MAINTENANCE To avoid electric shock, remove the probe before opening the battery cover or back cover. General maintenance. » Maintenance and service of this instrument must be carried out by professional qualified maintenance personnel or maintenance department. » Use wet cloth or mild detergent regularly to clean the shell. Do not use abrasives or solvents. Wipe the contacts in the socket with a clean cotton swab soaked in alcohol. - Page 16 We either re-use them or give them to a recycling company which disposes of the devi- ces in line with law. For countries outside the EU, batteries and devices should be disposed of in accordan- ce with your local waste regulations. If you have any questions, please contact PCE Instruments. PCE INSTRUMENTS CONTACT INFORMATION...
