Manual

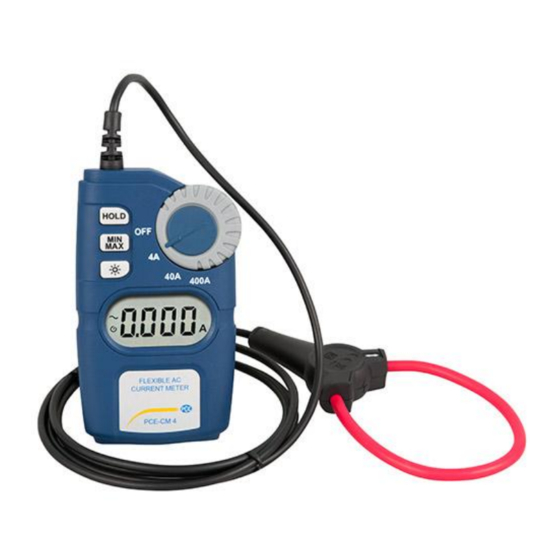

Flexible Clamp Meter PCE-CM 4
Version 1.0
Date of creation: 04.08.2015
Date of last change: 05.08.2015
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PCE Instruments PCE-CM 4
Summary of Contents for PCE Instruments PCE-CM 4

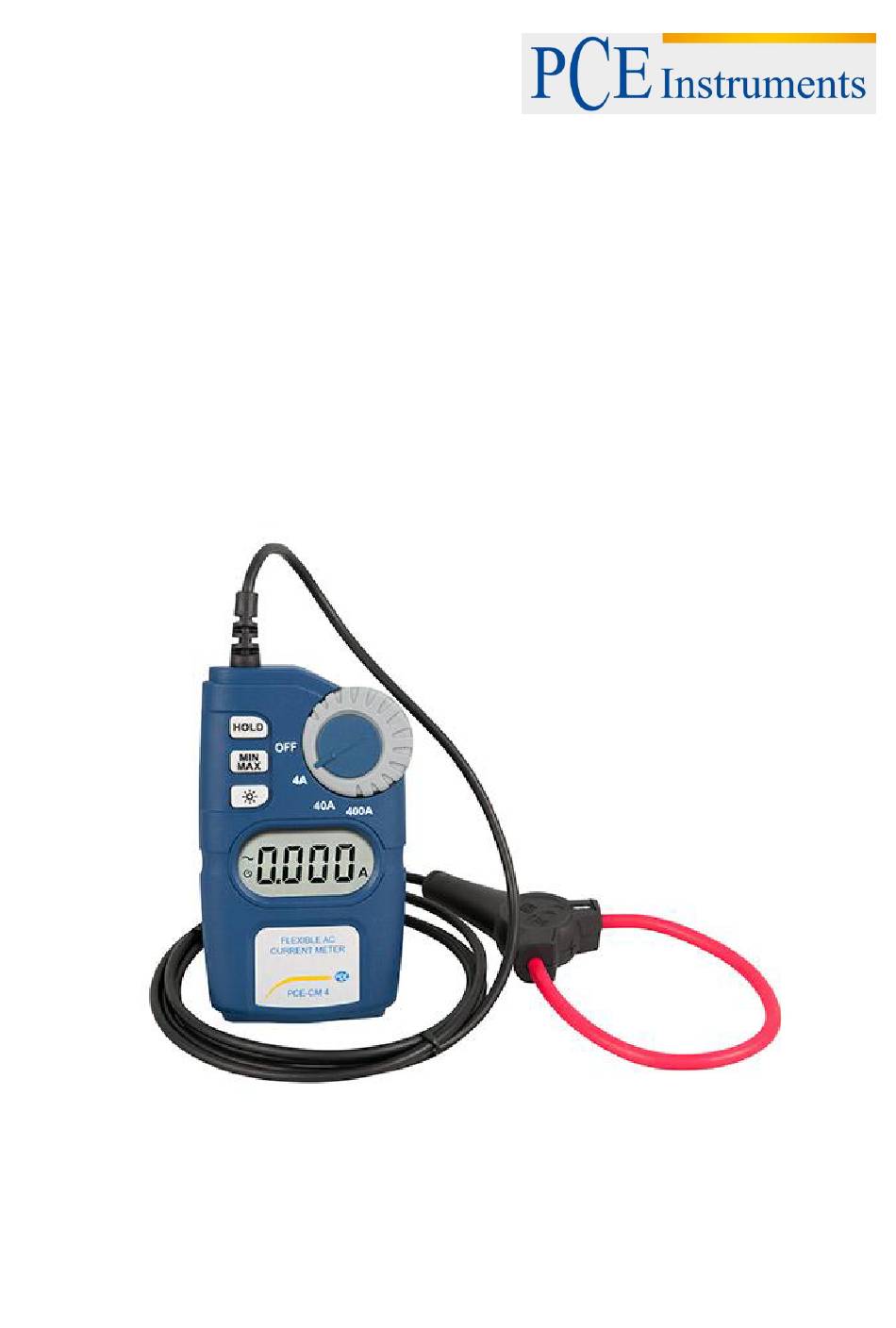

- Page 1 From outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0 Fax: (561) 320-9176 Fax: (0) 2380 98703 9 info@pce-americas.com info@pce-instruments.com www.pce-instruments.com/english www.pce-instruments.com Manual Flexible Clamp Meter PCE-CM 4 Version 1.0 Date of creation: 04.08.2015 Date of last change: 05.08.2015...
-
Page 2: Table Of Contents
Position sensivity ........................6 Button description ........................6 5.3.1 Backlight button ..........................6 5.3.2 Hold button ............................. 6 5.3.3 MAX/MIN button ..........................6 Replacing the Battery ......................... 7 Contact ........................8 PCE Instruments UK ........................8 PCE Americas ..........................8... -
Page 3: Introduction
Thank you for purchasing a flexible clamp meter PCE-CM 4 from PCE Instruments. The flexible clamp meter PCE-CM 4 is a high quality meter for the measuring of current: It’s possible to measure current at inaccessible electric conductors. The flexible clamp meter PCE-CM 4 has a measuring range up to 400 A. -
Page 4: Specification
Manual Specification Electrical Specification Measuring Ranges 4A / 40A / 400A Resolution 0,001A / 0,01A / 0,1A Accuracy (45 … 500Hz) ±3 % Power Supply 2 x AAA oder 2 x UM-4; 1,5 V Battery Life 120 Std. Temperature Coefficients 0,1 deviation over 28 and under 18 °C General Technical Data Display... -
Page 5: System Description
Manual System description Meter discription 1. Flexible current probe 2. Probe coupling 3. Range switch 4. Data hold button 5. MIN/MAX button 6. Backlight button 7. LCD display 8. Battery compartment cover Display discription... -
Page 6: Operation
Manual Operation Measuring instruction To activate unit, move the rotary switch from the “off” position to the required measuring range. Select the desired range. If the value of current being measured is unknown, first select the highest range and then reduce accordingly. Connect the flexible probe around the conductor. -
Page 7: Replacing The Battery
Manual Replacing the Battery 1. When the battery voltage drops below proper operation range the battery symbol will appear on the LCD display and the battery needs to be replaced. 2. Remove the flexible current probe from any measuring object. 3. -
Page 8: Contact
Contact If you have any questions about our range of products or measuring instruments please contact PCE Instruments. PCE Instruments UK By post: PCE Instruments UK Ltd. Units 12/13 Southpoint Business Park Ensign Way, Southampton Hampshire United Kingdom, SO31 4RF...
