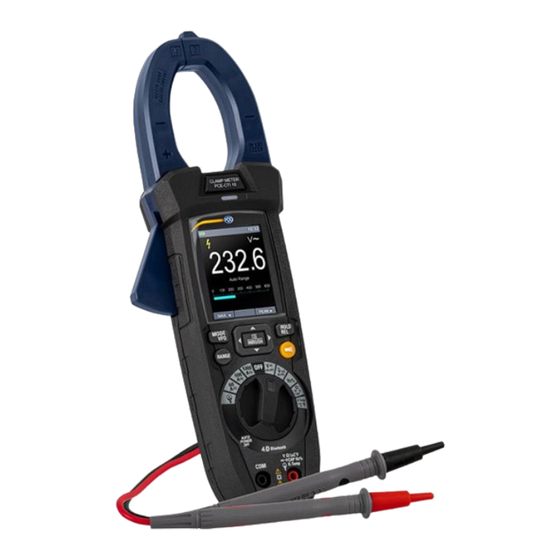

- Page 1 User Manual PCE-CTI 10 Clamp Meter User manuals in various languages (français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be found by using our product search on: www.pce-instruments.com Last change: 27 May 2024 v1.0 © PCE Instruments...
-
Page 2: Table Of Contents
Set language ............................18 Settings ..............................18 Set system time and date ........................19 Device information ........................... 19 Call up screenshots ..........................19 Restore factory settings ........................... 20 Bluetooth connection ..................20 Contact ......................21 Disposal ......................21 © PCE Instruments... -
Page 3: Safety Notes
Please read this manual carefully and completely before you use the device for the first time. The device may only be used by qualified personnel and repaired by PCE Instruments personnel. Damage or injuries caused by non-observance of the manual are excluded from our liability and not covered by our warranty. -
Page 4: Specifications
±(3.0 % of Rd + 8 digits) ±600.0 A 0.1 A ±1000 A Overload protection: 1000 A AC/DC Alternating current (50 ... 60 Hz) Measurement range Resolution Accuracy 0.00 ... 60.00 A 0.01 A ±(2.5 % of Rd + 5 digits) © PCE Instruments... - Page 5 1 µF ±(3.5 % of Rd + 20 digits) 0.00 ... 60.00 mF 0.01 mF for reference only 0.0 ... 600.0 mF 0.1 mF for reference only Diode test Test current <1.5 mA Maximum voltage 3.3 VDC © PCE Instruments...
-
Page 6: Delivery Scope
275 x 100 x 45 mm / 10.8 x 3.9 x 1.7" Weight 481 g / 16.9 oz Delivery scope 1 x clamp meter PCE-CTI 10 1 x K-type thermocouple with adaptor 1 x pair of test leads 1 x carrying case... -
Page 7: Device Description
Display "MODE / VFD" key "RANGE" key "INRUSH / Menu" key "HOLD / REL" key Light key Rotary selector switch Connection for test leads (-) Connection for test leads (+) Lock of the battery cover Battery cover © PCE Instruments... -
Page 8: Key Description
INRUSH / Menu Starting inrush current measurement Open menu 4.1.2 Virtual keys The virtual keys are shown on the display. These are actuated by the real arrow keys. The virtual keys change their functions depending on the setting. © PCE Instruments... -
Page 9: Display Description
Display description Description Battery status display Measured value Automatic or manual selection of the measurement range Bar chart in relation to the set measurement range Virtual key System time Unit of meaurement © PCE Instruments... - Page 10 Measurement via the existing Continuity test current clamp Measured value in relation Diode test Function: measurement on a Unit symbol for ohm frequency inverter Function: inrush current Measurement with measurement impedance Time of the high edge © PCE Instruments...
-
Page 11: Rotary Selector Switch
Alternating or direct current measurement up to 60 A Alternating or direct current measurement up to 600 A Alternating or direct current measurement up to 1000 A Alternating current measurement with external current clamp up to 3000 A © PCE Instruments... -
Page 12: Making A Measurement
Frequency measurement and duty cycle measurement For a frequency measurement, turn the rotary selector switch to . The "MODE VFD" key can now be used to select between frequency measurement and duty cycle. © PCE Instruments... -
Page 13: Resistance, Capacitance Measurement, Diode Test And Continuity Test
To carry out a temperature measurement, set the rotary selector switch to Connect the temperature adaptor for thermocouples to the device. Then connect a suitable thermocouple to the adaptor. The measurement is carried out immediately. Use the "MODE VFD" key to select between °C and °F. © PCE Instruments... -
Page 14: Current Measurement
To carry out this measurement, press and hold the "INRUSH/Menu" key for at least two seconds. You can then switch on the device under test. The measurement starts immediately and the inrush current is shown on the display. © PCE Instruments... -
Page 15: Current Measurement With External Current Clamp
To freeze the measured value, briefly press the "HOLD/REL" key once. Press the key again to resume normal measurement. If the value is frozen, the displayed image can be saved using the virtual "Save" key. The screenshots can be recalled and deleted in the "Memory" menu item. © PCE Instruments... -
Page 16: Highest And Lowest Measured Value
5.12 Peak values To display the peak value, press the virtual "PEAK" key. The highest and lowest peak values are displayed next to the normal measurement. To reset the display, exit the mode and open it again. © PCE Instruments... -
Page 17: Non-Contact Voltage Verification (Ncv)
Press the left arrow key to go back one level. Menu Function Recording Data recording Language Set language Setup Further settings Time/Date Date and time Memory Retrieving screenshots of the "Hold" function Information Device information Factory Set Reset meter © PCE Instruments... -
Page 18: Data Logger
If you press the zoom key repeatedly, you will return to the overall view. 6.1.3 Set storage interval To set the storage interval, go to "Sample Interval" in the "Recording" menu item. Here, you can set the storage interval in minutes and seconds. © PCE Instruments... - Page 19 There you can see how much memory space is already in use. 6.1.6 Clear memory To clear the entire memory, select "Delete all Recordings" in the "Recording" menu item. You will be asked whether you really want to clear the memory. Confirm this if you do. © PCE Instruments...
-
Page 20: Set Language
Settings To make settings, go to the "Setup" menu. Menu Function Key Sound Key sound Bluetooth Switching Bluetooth on and off Brightness Setting the display brightness Auto Power Off Setting the automatic power-off time © PCE Instruments... -
Page 21: Set System Time And Date
"Information" menu item. Call up screenshots To retrieve the screenshots of the "Hold" function, go to "Memory" in the settings. The screenshots can be called up and deleted from there. Note: Up to 16 screenshots can be saved. © PCE Instruments... -
Page 22: Restore Factory Settings
Store or Play Store. Activate the Bluetooth connection of the clamp meter and your mobile device. Then open the app and connect to the meter via the app. Note: The connection must not be established via the Bluetooth setting on your mobile end device. Android © PCE Instruments... -
Page 23: Contact
For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments. © PCE Instruments... - Page 24 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 26 23, rue de Strasbourg Calle Mula, 8 D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17...
