Truflo — UltraFlo
®
Clamp-On Ultrasonic Flow Meter Sensor

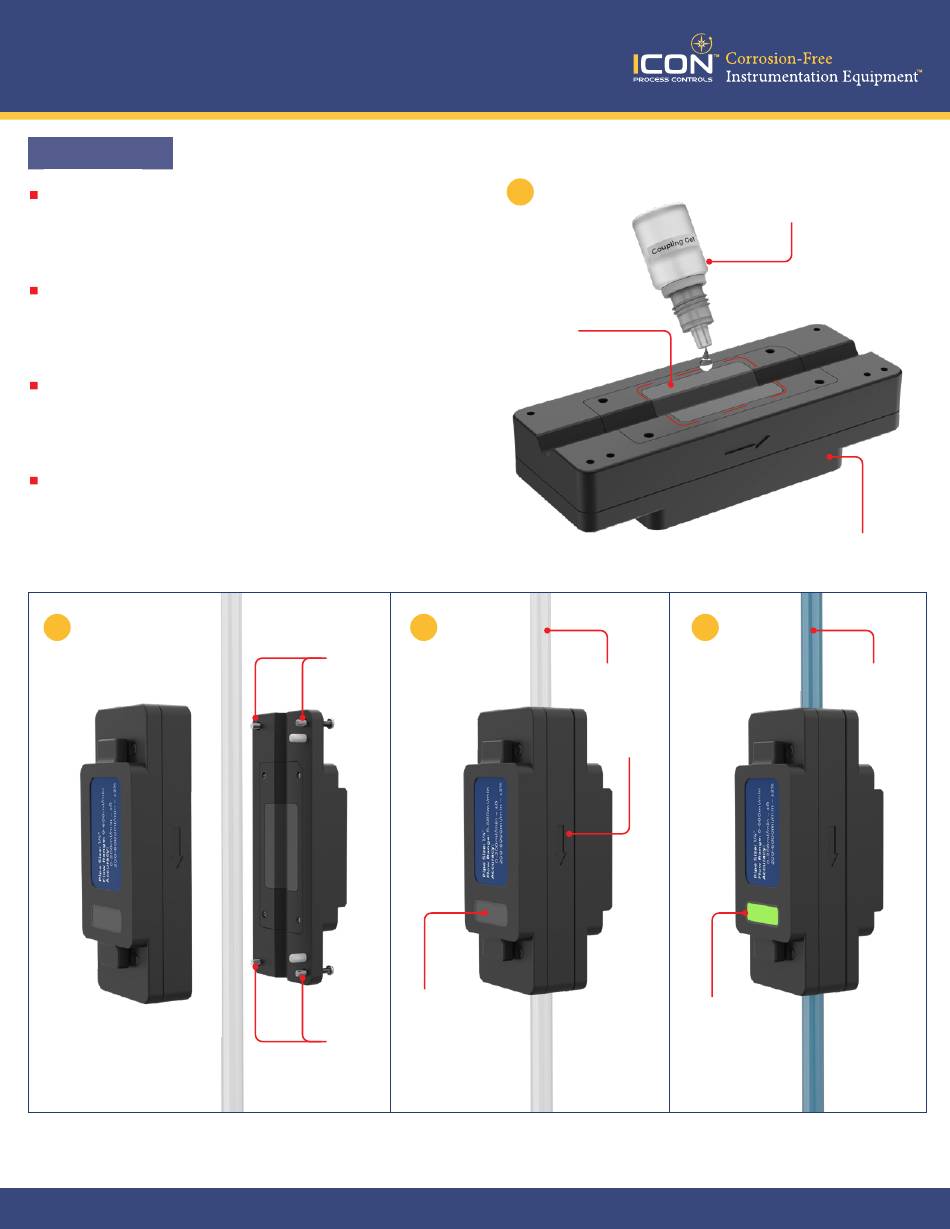

Installation
Step 1 : Apply Coupling Gel
Evenly apply coupling gel to the transducers of both
clamps. Ensure the gel covers the entire surface for optimal
signal transmission.
Step 2 : Clamp the Transducers
Secure the transducers onto the designated positions
on the pipe. Align them correctly according to the flow
direction.
Step 3 : Tighten the Bolts
Fasten the screws on the clamps to ensure the transducers
are firmly attached to the pipe. Avoid over-tightening to
prevent damage.
Step 4 : Check the Indication Light
Power on the flow meter and verify that the indication light
turns on. The light confirms proper alignment and full-pipe
flow conditions.
2
25-0613 © Icon Process Controls Ltd.
UF-500S
®
3
Clamp
Screws
Indication
Light OFF
Clamp
Screws
1
Transducer
Evenly apply coupling gel
to the transducer.
Empty Pipe
Flow
Direction
Coupling Gel
(Included in the package)
Transducer Clamps
4
Full Pipe
Indication
Light ON
5
