Icon Process Controls Truflo TKM Series Quick Start Manual

In-line paddle wheel flow meter sensor

Advertisement

Quick Links

Truflo
Truflo
— TKM Series
— TKM Series
®
®

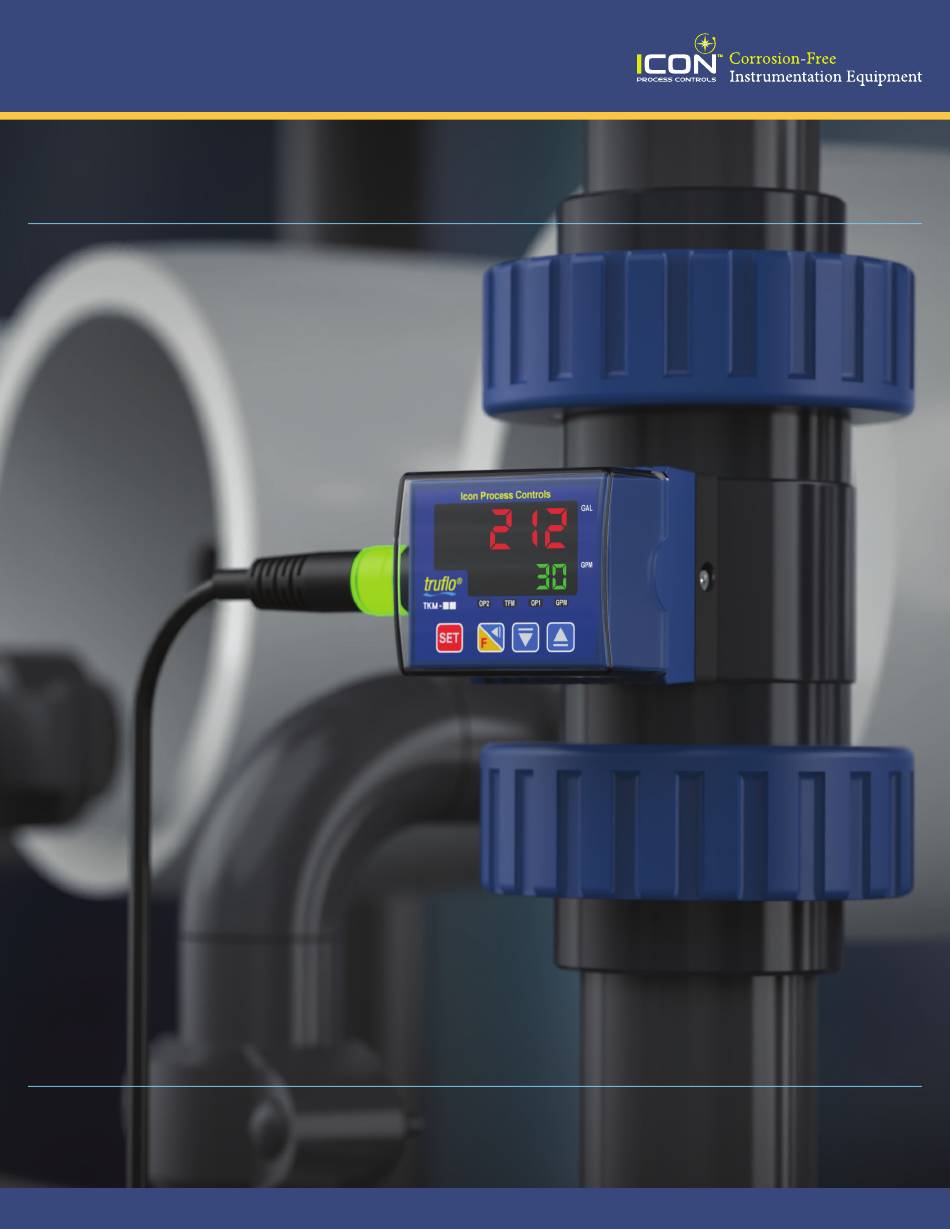

In-Line Paddle Wheel Flow Meter Sensor
In-Line Paddle Wheel Flow Meter Sensor
Read the user's manual carefully before starting to use the unit.
Producer reserves the right to implement changes without prior notice.
24-0317
24-0200
© Icon Process Controls Ltd.
© Icon Process Controls Ltd.
Quick Start Manual
1
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Truflo TKM Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Icon Process Controls Truflo TKM Series

  • Page 1 In-Line Paddle Wheel Flow Meter Sensor Quick Start Manual Read the user's manual carefully before starting to use the unit. Producer reserves the right to implement changes without prior notice. 24-0200 24-0317 © Icon Process Controls Ltd. © Icon Process Controls Ltd.
  • Page 2: Safety Information

    10% Particle Size - Not to Exceed .5mm Cross Section or Length. Please do not flush the pipe after the Flow Meter is installed with compressed air this may damage the ceramic shaft and will void warranty. 24-0317 © Icon Process Controls Ltd.
  • Page 3 Regular Ceramic Integral Rotor Bushings Reduce Wear and Fatigue Stress ShearPro Through-Pin Design ® Eliminates Finger Spread No Lost Paddles Increased Temp. Rating TK3M 360° Housing Protects Rotor Finger Spread Unprotected Rotor vs. Competitor ‘A’ 24-0317 © Icon Process Controls Ltd.
  • Page 4: Technical Specifications

    PVDF -40°F to 240°F -40°C to 115°C Outputs TKM Series 4-20mA | NPN Pulse | 0-5V* Standards and Approvals CE | FCC | RoHS Compliant *Optional **See Temperature and Pressure Graphs for more information 24-0317 © Icon Process Controls Ltd.
  • Page 5: Exploded View

    Grey Meter Yellow Yellow + 4-20mA | 0-5V* Output 4-20 5V DC Flow Rate Grey Circuit White Totalizer Pulse Output Grey Black - 4-20mA | 0-5V* Pulse Output -VDC Blue Blue -VDC * Optional 24-0317 © Icon Process Controls Ltd.
  • Page 6: Totalizer Reset

    Factory Default: oSt = 0.000 (Offset : Actual Output - Expected Output) Totalizer Reset STEPS DISPLAY OPERATION Home Screen ▶ Home Screen �� 3 Sec . Totalizer Reset ▶ Totalizer Value will Reset to Zero 24-0317 © Icon Process Controls Ltd.
  • Page 7: Setting Output Limits

    Totalizer Pulse Output (OP2) Limit Totalizer Pulse Output (OP2) ▶ CV ≥ SV : Totalizer Output (OP2) ON CV < SV : Totalizer Output (OP2) OFF Note: Refer Totalizer Output (OP2) Control Settings (Pg 8) 24-0317 © Icon Process Controls Ltd.
  • Page 8 [SV - Hys] — ▶ Relay OFF: CV > [SV + Hys] or CV < [SV - HyS] — ▶ Relay ON Hys = Hysteresis — Acts like a buffer ± around (OP1) pulse output CV: Current Value (Flow Rate) | SV = Set Value 24-0317 © Icon Process Controls Ltd.
  • Page 9: Min/Max Flow Rates

    Butt Fused End Connections for PP or PVDF 1” 1” TKM-25-PP TK3M-25-SS ▶ Flange ANSI 150lb - Consult Factory 1 ½” 1 ½” TKM-40-PP TK3M-40-SS 2” TKM-50-PP 2” TK3M-50-SS 3” 3” Flanged TKM-80-PP TK3M-80-SS 4” Flanged TKM-100-PP 4” TK3M-100-SS 24-0317 © Icon Process Controls Ltd.
  • Page 10 Pull the Screws | Do Not Remove located on either side of the display Lift the Display Tighten the Allen Screws | Snug Tight Rotate Display - 90 Degrees Lower Display Do Not Over-Tighten 24-0317 © Icon Process Controls Ltd.
  • Page 11 fibers - max 10% Particle Size - Not to Exceed .5mm Cross Section or Length. Please do not flush the pipe after the Flow Meter is installed with Compressed Air this may damage the ceramic shaft and will Void Warranty 24-0317 © Icon Process Controls Ltd.
  • Page 12 Icon Process Controls Ltd for a period of one year from the date of sale of such products. Icon Process Controls Ltd obligation under this warranty is solely...
