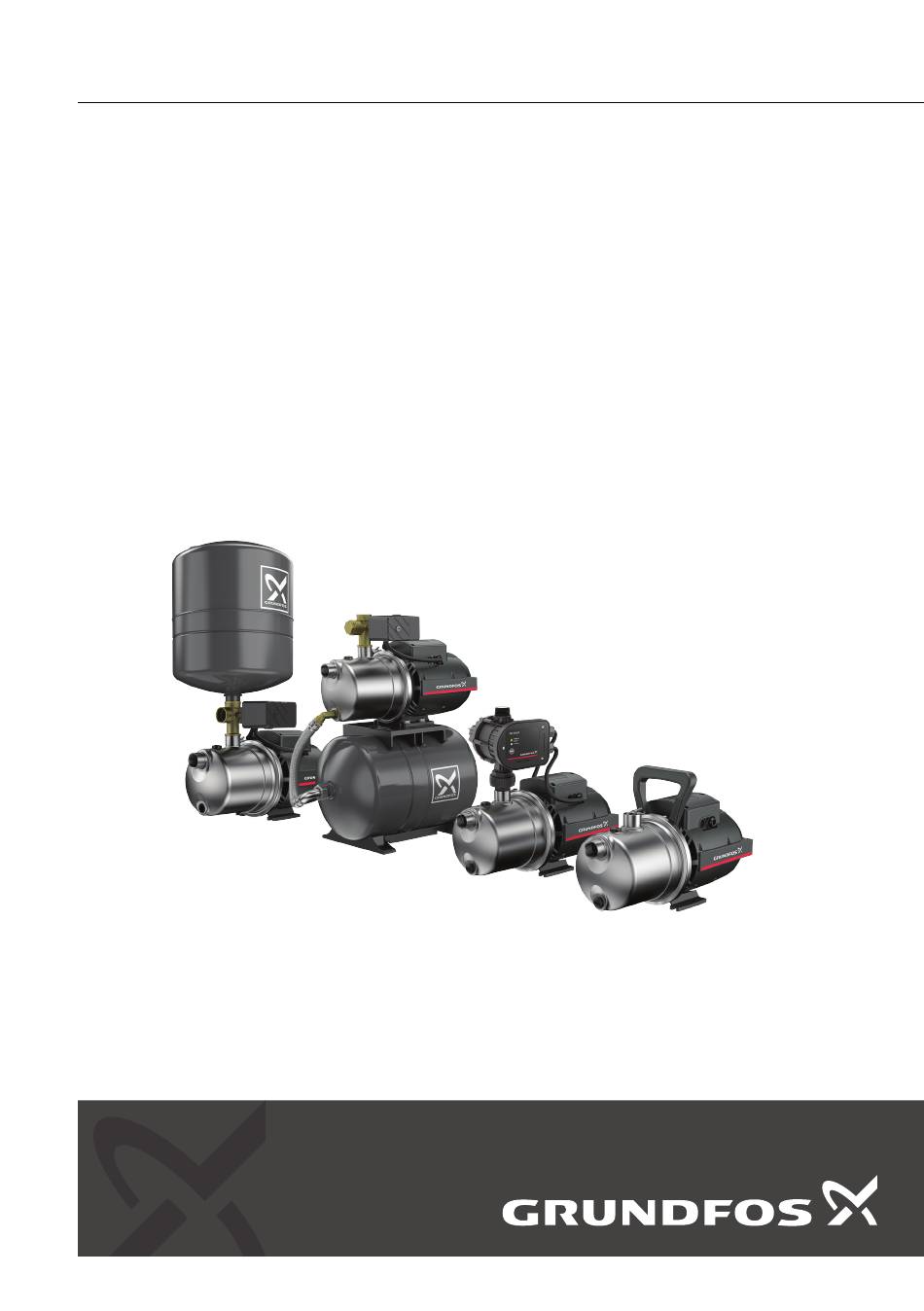

GRUNDFOS INSTRUCTIONS JP and JP Booster Installation and operating instructions...
Page 3
JP and JP Booster English (GB) Installation and operating instructions ........4...
Page 4
Inspecting the product ..Scope of delivery, JP ... . . 9 Document quality feedback ..22 Scope of delivery, JP Booster .
Page 5
1.1 Hazard statements 1.3 Target group The symbols and hazard statements below may These installation and operating instructions are appear in Grundfos installation and operating intended for professional as well as non-professional instructions, safety instructions and service users. instructions. DANGER...
Page 6
Lifting handle • JP PT-H: a jet pump with a horizontal pressure Terminal box and cable connection tank and a pressure switch. Base plate Drain plug G1 inlet connection Left to right: JP PT-V, JP PT-H, JP PM and JP...
Page 7
Impurities in the water Minor or moderate personal injury ‐ Do not use the product for drinking water. The AISI 316 variant of the JP pump is especially suitable for pool-cleaning and saltwater applications. 2.4 Pumped liquids WARNING Flammable material Death or serious personal injury ‐...
Page 8
2.5.2 Type key, JP pump and booster Example: 2.5.1 Nameplate example for JP and JP Booster JP . 3- . 42 . PT- . V . 1x230 V . 50 Hz . 2m . SCHUKO . HU Description DK - 8850 Bjerringbro, Denmark...
Page 9
1 safety instructions booklet. ON: 20 min ON: 20 min JP 4-54 OFF: 40 min OFF: 40 min 3.3 Scope of delivery, JP Booster ON: 20 min ON: 30 min The box contains the following items: JP 5-48 OFF: 40 min OFF: 30 min •...
Page 10
5. Mechanical installation 5.3.2 Inlet and outlet pipes Please follow these general precautions when WARNING connecting the inlet and outlet pipes. Electric shock Death or serious personal injury Do not let the pump support the pipes. Use pipe hangers or other supports at proper ‐...
Page 11
Valves are not supplied with the pump. 5.4.1 Suction from a tank This installation example shows JP PM, but it applies to all variants of the JP range. Correct pipe sizing for connection to the pump inlet or outlet Pos.
Page 12
6. Electrical connection 5.4.2 Suction from a well This installation example shows the JP PM, but it WARNING applies to all variants of the JP range. Electric shock Death or serious personal injury ‐ Switch off the power supply before you start any work on the product.
Page 13
6.2 Wiring diagram, JP WARNING Electric shock Death or serious personal injury ‐ Connect the product to protective earth and provide protection against indirect contact in accordance with local regulations. ‐ Power cables without a plug must be connected to a supply disconnecting device incorporated in the fixed wiring according to the local wiring rules.
Page 14
3. Fit the operating panel securely with all four mounting screws to maintain enclosure class IP65. Wiring diagram for three-phase pumps Pump model Recommended cable type JP 3-42 and JP 4-47 H05 RN-F JP 4-54 and JP 5-48 H07 RN-F 6.4.2 Wiring diagrams Wiring diagram for one-phase pumps...
Page 15
Related information 2.3 Intended use 2.4 Pumped liquids 7.2.1 Startup of JP PM For JP pumps with pressure manager, see the PM START quick guide for instructions on how to start the product.
Page 16
Before the pump is used for supplying drinking water, flush the pump thoroughly with clean water. ‐ Use spare parts approved by Grundfos. Only qualified persons are allowed to service the pump. 8.1 Maintenance The product is maintenance-free during normal...
Page 17
8.3 Service kits 9.3 Storage of the product For further information on service kits, WARNING see Grundfos Product Center at www.product- Electric shock selection.grundfos.com. Death or serious personal injury ‐ Switch off the power supply before you start any work on the product. Make sure that the power supply cannot be switched on accidentally.
Page 18
10. Fault finding the product 10.2 The pump stops unexpectedly during operation and starts again after a while WARNING The thermal switch in the motor has tripped due Electric shock to overheating and runs intermittent operation. The Death or serious personal injury thermal switch will cut in automatically when the ‐...
Page 19
Find more information in the service instructions at https:// product- selection.grundfos.com Pos. Description Function The green indicator light is Power on permanently on when the power 10.4.4 The "Pump on" indicator light is on, but the is on.
Page 20
Find more information down. in the service instructions at https:// product- 10.6 Fault finding the pressure switch selection.grundfos.com 10.6.1 The motor does not start Cause Remedy 10.4.6 The pump does not stop Problem with the • Check that the...
Page 21
Increase Max. sound pressure level of the the setting value pump: incrementally until the JP 3-42: 68 dB(A) Sound pressure problem is resolved. level JP 4-47: 70 dB(A) Do not forget to reset the minimum JP 4-54: 74 dB(A) intervention pressure.
Page 22
When a product marked with this symbol reaches its end of life, take JP 3-42: 1.5 bar / 0.15 MPa it to a collection point designated by JP 4-47: 1.0 bar / 0.10 MPa the local waste disposal authorities.
