Summary of Contents for Electrolux Professional Compass Pro Clean Room WB6-50

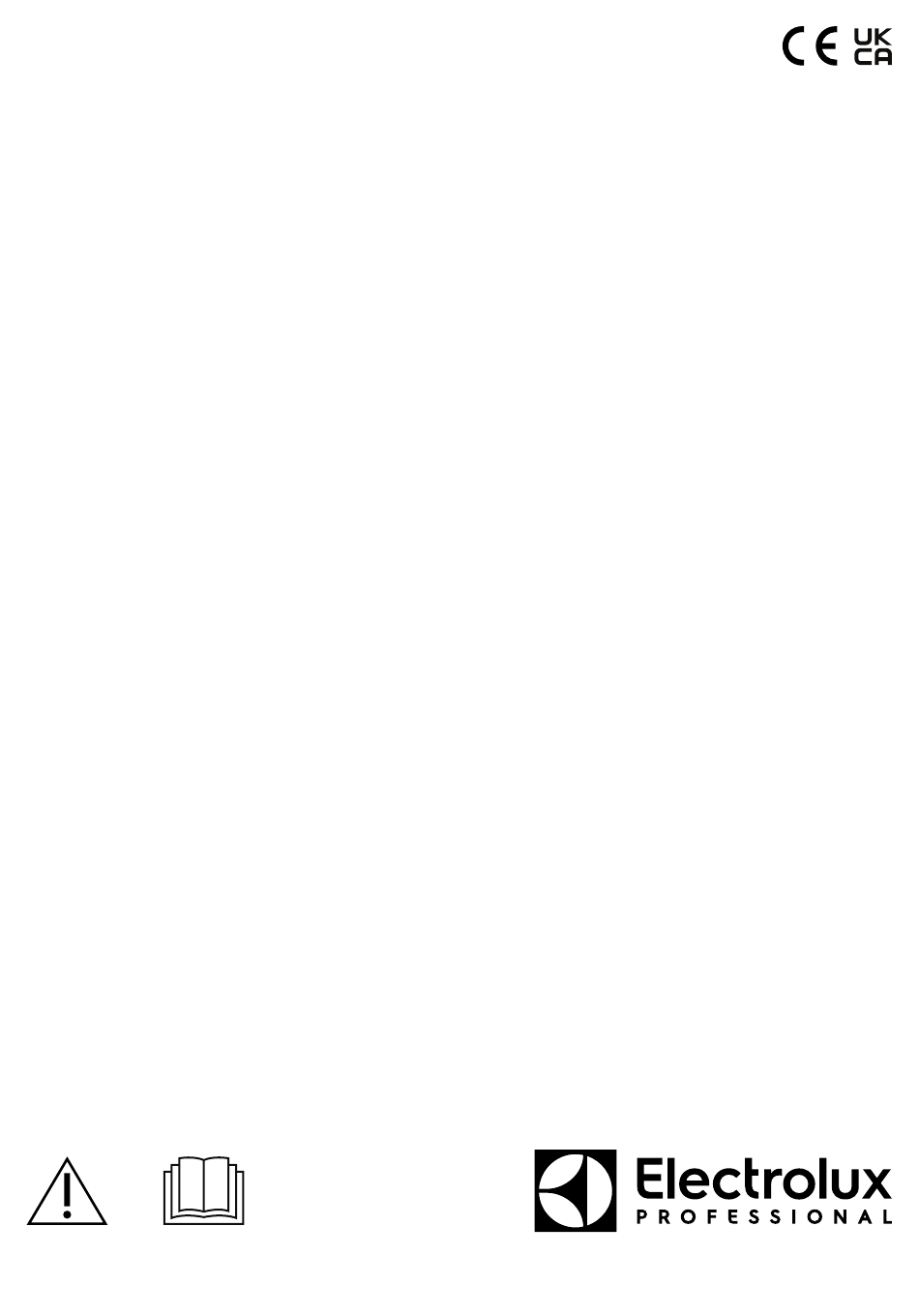

- Page 1 Installation manual Washer-extractors WB6–50 Clean Room Compass Pro 05201151/EN original instructions...
-
Page 3: Table Of Contents
Contents Contents 1 Safety precautions..........................5 Symbols..........................10 Personal protection equipment....................11 Preliminary instructions ......................11 Data plate explanation......................13 Warranty terms and exclusions ....................17 2 Environmental information .........................19 3 Locking and tagging procedure......................20 4 Handling ............................21 Lifting with a fork-lift truck ......................21 Lifting with handlings straps ......................21 5 Packing-Weight..........................23 Packing...........................23... - Page 4 Contents 25 Conversion of measurement units.......................67 The manufacturer reserves the right to make changes to design and component specifications.
-
Page 5: Safety Precautions
Installation manual 1 Safety precautions This machine should be installed in conformance to the health and safety regulations, and only used in a sufficiently aerated area. Check the instructions before installing or using the machine. CAUTION Before any use, remove all the parts from the inner drum necessary to install the ma- chine, please follow these steps 1. - Page 6 Installation manual CAUTION Before any use, it is compulsory to read the instruction handbook. Users must have learnt how the machine operates. This device must not be installed in places accessible to the public. The machine is only intended for water-wash use. Do not allow minors to use the machine.
- Page 7 Installation manual IMPORTANT The identification plate is located on the right side near the main switch. Never use the main switch as an emergency stop. Use it only when the machine does not work in progress. Instead of that, use the emergency stop buttons in both sides of the machine.
- Page 8 Installation manual CAUTION With AIDO(Automatic Inner Door Opening) option, Take care of the disc of the opening system above your head. Risk of cutting with the edge of the disc!! Take care also of the locking system on your side; risk of cutting with the edge of the plate!! CAUTION When you put your hands into the drum, take care of the edge of the outer drum doors...
- Page 9 Installation manual THINK OF THE ENVIRONMENT! The use and handling of chemical products such as detergent, chlorine, acids, desca- ling agents, etc may create hazards for health and environment ; the following precau- tions should be taken: • Do not breathe the dusts or steam; •...
-
Page 10: Symbols
Installation manual 1.1 Symbols Caution. Caution, presence of dangerous current. Read the instructions before using the machine. -
Page 11: Personal Protection Equipment
Installation manual 1.2 Personal protection equipment Given below is a summary table of the Personal Protection Equipment (PPE) to be used during the various phases of the machine’s service life. Phase Protection Safety Gloves Glasses Ear protectors Mask Safety helmet garments footwear Transport... - Page 12 Installation manual WARNING Risk of the upper door being raised quickly on loading WARNING After the installation, Send back the commissioning form ,signed document, to Electro- luxProfessional to validate the warranty of the product.
-
Page 13: Data Plate Explanation
Installation manual 1.4 Data plate explanation In this chapter, you will find the explanation of the different data input on the data plate of your product. • Commercial name : Usual name of your product ( i.e. WB6–50). • Type : Type of your product (you have the same on the Declaration of Conformity CE if delivered with CE certification). -
Page 14: Electric Heating
Installation manual Electric heating : • P.Max : maximum power installed of your product • Power of the motorization in kW and its isolation class (F) . • Heating power in W . - Page 15 Installation manual Gas heating : Left side • P.Max : maximum power installed of your product • Power of the motorization in kW and its isolation class (F) . • Heating power in W . • Gas approval number depending on your machine except ETL product (begin by1312/ ..) Right side •...
- Page 16 Installation manual Steam heating : Left side • P.Max : maximum power installed of your product • Power of the motorization in kW and its isolation class (F) . • Heating power in W . Right side • P.Maxi. (kPa) maximum pressure For additional information, do not hesitate to consult with our quality department.
-
Page 17: Warranty Terms And Exclusions
Installation manual 1.5 Warranty terms and exclusions If the purchase of this product includes warranty coverage, warranty is provided in line with local regulations and subject to the product being installed and used for the purposes as designed, and as described within the appropriate equipment documentation. Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance in accordance with user and maintenance documentation made available in paper or electronic format. - Page 18 Installation manual Check on website the list of authorized customer care.
-
Page 19: Environmental Information
Installation manual 2 Environmental information Concerned by providing the end user with useful and necessary environmental information, we wish to precise: • Data about energetic consumptions, wastes (atmospheric and liquid) and sound level are indicated in the para- graph «Technical characteristics». •... -
Page 20: Locking And Tagging Procedure
Installation manual 3 Locking and tagging procedure A red insert at the beginning of this instruction handbook schematically shows the locking and tagging procedure de- scribed below. If you wish, you can detach this insert and display it close to the machine to remind maintenance per- sonnel of the safety instructions. -
Page 21: Handling
Installation manual 4 Handling Important It is obligatory that all these operations are undertaken by handling specialists. Before any handling, check that the four transport locks fitted are still in place and well-tightened. To do so, remove the front and rear casings and check presence of four locks (B). 4.1 Lifting with a fork-lift truck Warning You should never handle the machine in its longitudinal side (any other than shown on the drawing below) with a... - Page 22 Installation manual Caution Make sure to place the straps correctly to avoid any bending of parts of the machine. Caution In order to avoid any bending of casings, you should never climb and stand on top of the machine.
-
Page 23: Packing-Weight
Installation manual 5 Packing-Weight 5.1 Packing Packing dimensions in mm/in Size A Size B Size C Washer extractor type WB6–50 1570 / 61.81 1520 / 59.85 1980 / 77.95 5.2 Weight Weight in kg/lb (machine + crate)* Washer extractor type WB6–50 1280 / 2822 * Precise weight depends on accessories fitted. -
Page 24: Technical Characteristics
Installation manual 6 Technical characteristics 6.1 Technical data Units WB6–50 Drum diameter Drum length Drum volume litre Opening inner drum doors (LxH) 670x470 Opening outer drum door (LxH) 645x738 G-factor, max. Specific load 1/10 Floor area m² 1.63 Max. unbalance Net weight 1170* Weight loaded (high level) -
Page 25: Connections
Installation manual 6.2 Connections Water Units WB6–50 Water valves connection mm-BSP DN20–3/4″ Capacity at 250 kPa l/min Functioning limits for water valve 50–300 Water consumption for a wash program Drain Units WB6–50 Drain connection, outer ⌀ Maximum drain flow rate l/min Waste water collector DN-mm... - Page 26 Installation manual Heating Units WB6–50 Installed heating power, electric heating Electric consumption for a standardized cycle, electric heating 10.7 Electric consumption for a standardized cycle, Indirect steam heating Floor load Units WB6–50 Frequency of the dynamic force 13.75 Max transmitted floor load 1808 +-75 Max.
-
Page 27: Dimensions - Wb6-50
Installation manual 6.3 Dimensions — WB6–50 WB6–50 1300 1265 1770 1385 1135 2330 Front view Left view Control panel not applicable Loading door Air vent connection Unloading door Electrical connection not applicable Compressed air inlet Cold hard water inlet Main switch not applicable Electric cable not applicable... -
Page 28: Sound Levels
Installation manual Back view Right view Drain connection Top view 7 Sound levels The sound power level of the machine is determined by using ISO 3747:2012. According to test code EN50571 : 2013 anex CC,the sound power level at extraction and during washing are accord- ing to the table: Washing dB(A) -
Page 29: Working Place Lighting
Installation manual 8 Working place lighting The lighting should be designed so as to avoid eye strain for the operator ; it should be uniform without any glare, and should be sufficient to detect any hazards. The average lighting value on the working place recommended by the clothing industry for inspecting linen is 500 lux. Whenever possible, the working place should be illuminated by daylight. -
Page 30: Installation
Installation manual 10.2 Installation The installation must be done by competent technicians in accordance with local codes and regulations. When there are not local codes and regulations, the installation must be comply with European standards applicable. The machine must be installed on a perfectly even surface, strong and horizontal, capable resisting to the efforts shown in the technical characteristics. -
Page 31: Instructions For Securing The Machine On The Ground
Installation manual 10.4 Instructions for securing the machine on the ground Caution Only for machines without weighing equipment. Place the machine on a perfectly even surface and horizontal. Control this using a water level (see drawing). Each point must be level. WB6–50 891 mm 720 mm... - Page 32 Installation manual Caution Only for machines with weighing equipment. Place the machine on a perfectly even surface and horizontal. Control this using a water level (see drawing). Each point must be level. Weighing equipment: P Water level: N Fixing dowels: C Flange safety locks: B Mark the place of the drilling hole for the fixing dowels (C) and drill the holes for fixing of flanges (holes ⌀...
-
Page 33: Remove Of The Transport Locks Fitted
Installation manual 11 Remove of the transport locks fitted Important Before putting the machine into service, it is compulsory to remove the 4 transport locks fitted. To do so, remove the front and rear casings, then the fixing screws of the transport locks (B). Keep the transport locks fitted with their screws and bolts to be able to assemble them again in case you would need to lift the machine. -
Page 34: Barrier Partition
Installation manual 12 Barrier partition Leave at least 1 m (40") (according to the recommendation in standard EN 60204) between the machine, a wall or any other machine at the sides. Aluminium Profile Rubber seal Barrier partition mm/in 30 / 1.18 WB6–50 1290 / 50.79 1770 / 69.69... - Page 35 Installation manual • The barrier partition shall be built after the installation of the machine. • Line up the barrier partition with the machine. Note that the barrier washer may, in worst cases, vibrate with a maximum amplitude of +/- 2mm at its top.
-
Page 36: Drain Connection
Installation manual 13 Drain connection The machine's exhaust sleeve outside diameter is of 75 mm (3″). It is located underneath the machine. The waste water collector diameter 150 mm (6″) (manufactured by customer) should have a 3 cm/m (3 %) slope and resist to a temperature of 90 °C (194 °F). -
Page 37: Drain Connection At The Left Of The Machine
Installation manual 13.1 Drain connection at the left of the machine All washers It is possible to connect the simple drain or the double drains on the left side of the washer extractor. Remove the casings from the washer for easy access to the drain valve. Adapt and connect the various hoses and their collars to the washer as show in the drawing above for one or two drain connection. -
Page 38: Drain Connection At The Right Of The Machine
Installation manual Code N/A for clean room machine 55015028 Replace the casings after taking care to remove the pre-cut of the left casing to allow the pass of the rubber hose. 13.2 Drain connection at the right of the machine All washers It is possible to connect the simple drain or the double drains on the right side of the washer extractor. - Page 39 Installation manual Code N/A for Clean room machine 55015027 Replace the casings after taking care to remove the pre-cut of the right casing to allow the pass of the rubber hose.
-
Page 40: Bath Inlet (Water + Detergents)Waters Connections
Installation manual 14 Bath inlet (water + detergents)Waters connections Washer extractors are assembled in standard execution with only one water inlet. The washer extractor is fitted with a DN 20 flange, a mating flange DN 20 and a seal for the bath inlet. The supply pipes to the machine should be fitted with manual shut-off valves to facilitate installation and service. -
Page 41: Connection Of External Water Supply
Installation manual 14.1 Connection of external water supply Electrical installation must be carried out by an authorized personnel All external equipment which is connected to the machine must be CE/EMC approved and connected using an approved shielded cable. Connect the electrical control of the water inlet valve on the J238 terminal of the A2 I/O card in the electric cabinet of the machine. -
Page 42: Liquid Detergents Connection
Installation manual 15 Liquid detergents connection Caution Liquid detergents are particularly aggressive. We advise you to use only products with pH lower than 9 in order to avoid the machine's rubbers from being attacked. Dilute imperatively all of your detergents before letting them flow into the machine. ADVISE IF USING LIQUID DETERGENTS After use, there is always chemical remaining in the liquid detergents' dosing pipes. -
Page 43: Electrical Liquid Detergents' Connection
Installation manual Multi-inlet dose controller with a compulsory rinsing device. 3 way valve Retention tank Pump Scoops + Rinsing Liquid detergents Water Water Washer extractor Soap box rinsing electrovalve Toward retention tank Dose controller Retention tank d2032 15.2 Electrical liquid detergents' connection Electrical installation must be carried out by an authorized personnel. -
Page 44: Indirect Steam Heating
Installation manual Connection on the A8 output relay card Common of signals Signal 1 Signal 2 Signal 3 Signal 4 Signal 5 Signal 6 Signal 7 Signal 8 Signal 9 Signal 10 Signal 11 Signal 12 Signal 13 Signal 14 (controlled by water level) Signal 15 (controlled by water level) Signal 16 (reserved) Supply voltage : 250 V~ maximum... - Page 45 Installation manual Barrier washer...
-
Page 46: Air Vent Connection
Installation manual 17 Air vent connection The air vent of the outer drum opens on the top of the machine. Connect the connection bellow ⌀ 60 to this opening. Connect the air vent, to the outside of the laundry in accordance with the legislation. The air vent should resist to 100 °C (212 °F) temperature and allow the condenses to return to the machine. -
Page 47: Air Vent Connection For Clean Room Installation
Installation manual 17.1 Air vent connection for clean room installation The air vent of the outer drum opens on the top of the machines. You may connect according to one of the 2 alterna- tives we recommend below. It is important that the machine is put at atmospheric pressure as the levelling of water depends on it. Alternative 1 : Pressurized HEPA (High Efficiency Particulate Air) filtered air When the machine drains water, clean air must go in... - Page 48 Installation manual When the machine fills with water, dirty air goes out and must trapped in the HEPA filter. The type of HEPA to be used must be so that it works both ways and traps the particles inside. It must not release the particles when the machine drains water.
-
Page 49: Note About The A.c. Power
Installation manual 18 Note about the A.C. power According to the EN 60204-1:2018 standard, the machine is provided for A.C. supplies corresponding to the ex- tracted characteristics below : 4.3.2 A.C. supplies Voltage: Steady state voltage: from 0.9 to 1.1 of nominal voltage. Frequency: from 0.99 to 1.01 of nominal frequency continuously. - Page 50 Installation manual 35 °C 1.08 40 °C 1.00 45 °C 0.91 50 °C 0.82 55 °C 0.71 60 °C 0.58 Table 3 (correction factors for different cable insulating materials) Insulating material Max. Working tempera- Correction factor ture range 70°C (158 °F) 1.00 Natural or Synthetic Rubber 760°C (140 °F...
- Page 51 Installation manual Table 4 (B2, C and correction factors for cable grouping) Number of cables Seated in Cable Duct Wall fixing or Cable trough Cable tray 1.00 1.00 1.00 0.80 0.85 0.87 0.65 0.75 0.78 0.57 0.72 0.75 0.50 0.70 0.73 The total current included for using Table 1 should be the maximum rated current for the machine divided by the product of the different correction factors.
-
Page 52: Electricity Power Supply
Installation manual 20 Electricity power supply Prior to use, the washer-extractor should be connected to a multi-pole switch prior to the machine to facilitate in- stallation and service operations. Caution The electrical installation of the machine must be undertaken by qualified personnel. Caution Ensure that the electrical voltage is correct and that the power of your supply is sufficient, before connecting the machine. - Page 53 Installation manual Pass the power supply cable of the machine through the stuffing box on the top of the machine. d2291 For each machine, install a fixed multipolar circuit breaker (or fuses protector) in the laundry main cabinet. d0466 Connect the power supply cable on the machine main switch. Connect the 3 phases on the main switch (see marks L1, L2, L3) and connect the earth wire on the earth terminal (PE) of this main switch.
- Page 54 Installation manual Machine Connection cable Heating Supply Voltage Rated Intensity Rated Power Protection type section 380/415 V 3+E ~ 50/60 Hz 8.6 kW 12 A 4 x 2.5 mm² 3 x 16 A Electric 380/415 V 3+E ~ 50/60 Hz 42 kW 57 A 4 x 16 mm²...
-
Page 55: Compressed Air Connection
Installation manual 21 Compressed air connection Caution The compressed air admitted to the distributors and jacks must be purified to the following values: • it must be free from solid particles larger than 5 µm. The filter present on our machines has a filtration of 5µm. •... - Page 56 Installation manual This standard shows the quality of the compressed depending on the particles inside it, the tolerance of these par- ticles give a classification of the required compressed air for our product. Show in the table below the classification : ISO 8573–...
-
Page 57: Connectivity Of The Barrier Washer
Harness RS232 Fuse IOT x 1 NETWORK OVERVIEW : To be able to use Electrolux Professional provided Connectivity and Management Software Tools, ELS network should be established. The Machine wireless board is a part of ELS Network, it should be installed on each machine with Compass Pro or Clarus Vibe control system and it be connected to the CPU RS232 port via a quick connection port behind or on top of the machine. -
Page 58: Process To Follow With A Pre Equiped Washer Machine
Installation manual < _ < _ fig.X02831A 22.1 Process to follow with a pre equiped washer machine Barrier washing machine: Installing the kit on a pre-equipped barrier washing machine. The connectivity box must be installed on the upper part of the machine on the water inlet side (on a small cap) as shown in the instruction 438907725 To do this, follow the following procedure: 1/ Remove the 4 yellow self-adhesive pads for fixing the box. -
Page 59: Connectivity Of The Barrier Washer With After Sales Kit
Installation manual 22.2 Connectivity of the barrier washer with after sales kit 22.2.1 Contents of the kit fig.X03239 490625001 Plate adapter x 1 471836901 Screw M4x11 x 2 490625501 Drilling fixture (paper) x 1 762910205 Cable tie x 4 413327497 Harness RS232 Machine to IOT x 1 22.2.2 Required tools fig.X03515... -
Page 60: 3Procedure To Follow To Connect The Barrier Washer With After Sales Kit
Installation manual 22.2.3 Procedure to follow to connect the barrier washer with after sales kit Caution Every barrier washer L6000 can be connectable to keep some datas of the production made by this product. Either the machine comes with the connectivity kit or you can order it to make your barrier washer connected. Process to install connectivity kit: Caution The pictures of this procedure show a WB6 Evolution with Compass Pro, it’s the same for the WB6 Hyvolution... - Page 61 Installation manual STEP 4 : Connect the cable to the RS232 Port of Compass Pro (loading side) STEP 5 : Put back the upper casings, STEP 6 : Connect the connectivity board to the wire . Please follow the instruction 438907725 STEP 7 : Place the cover of the connectivity board.
-
Page 62: Function Checks
Installation manual 23 Function checks Caution Before putting the machine into service, carry out the working tests. The operating inspection must be done by an approved technician. Manual operation The procedure for operating the various machine functions manually is described in the chapter "Machine operation" under the heading "Manual operation". - Page 63 Installation manual • Check the direction of rotation of the circulating pump and of the draught accelerator gas heating. The exchangers of the gas heated machines have a water circulating pump. Before the first start of the machine, you must check if this pump is priming well. Therefore, it is necessary to fill the machine with water and to run only the circulating pump, without heating, by pushing, with an isolated screwdriver, on the manual control of the exchanger's KM3 contactor.
-
Page 64: Explanation Of Washing Symbols
Installation manual 24 Explanation of washing symbols (ISO 3758:2005 standard) To overcome language barriers, the following are symbols used internationally to give you guidance and recommen- dations when washing different textiles. 24.1 Washing The tub symbolizes washing. Max. washing temperature Symbols Mechanical action in °C ( °F) -
Page 65: Drying
Installation manual Symbols Explanation Bleaching allowed (chlorine or oxygen). Bleaching allowed (only oxygen). Do not bleach. 24.3 Drying The circle in a square symbolizes tumble drying. Symbols Explanation Can be put in a tumble dryer. Normal temperature. Can be put in a tumble dryer. Lower temperature. - Page 66 Installation manual Mild dry cleaning with solvent of hydrocarbon. Do not dry clean. Normal water cleaning. Mild water cleaning. Very mild water cleaning.
-
Page 67: Conversion Of Measurement Units
Installation manual 25 Conversion of measurement units This following is a list of correspondences of the main frequency used units, to avoid the need to use measurement unit conversion table. 1 bar = 100 000 Pa British thermal unit 1 Btu = 1 055.06 J 1 bar = 1.019 7 kg/cm²... - Page 70 Electrolux Professional AB 341 80 Ljungby, Sweden www.electroluxprofessional.com...
