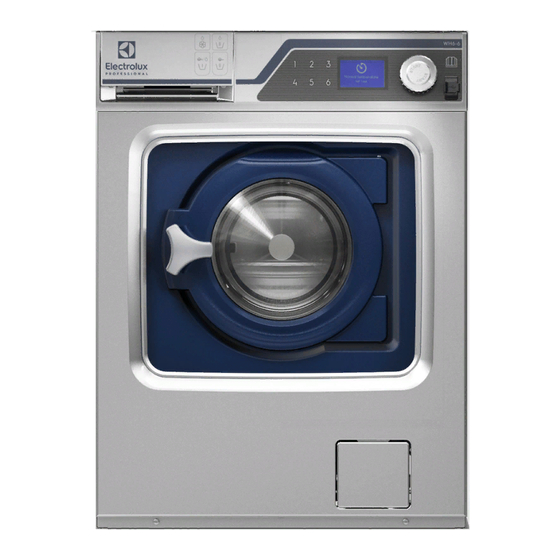

Electrolux Professional Lagoon WH6-6 User Manual
Hide thumbs
Also See for Lagoon WH6-6:
- Installation manual (28 pages) ,
- Installation manual (28 pages)
Related Manuals for Electrolux Professional Lagoon WH6-6
Summary of Contents for Electrolux Professional Lagoon WH6-6
- Page 1 User manual Washer extractor WH6–6 Lagoon Type W.55H.. 438917900/EN Original instructions 2022.08.10...
-
Page 3: Table Of Contents
Contents Contents 1 Safety Precautions ..........................5 General safety information......................6 Commercial use only........................6 Symbols............................6 2 Warranty terms and exclusions......................7 3 Program description ..........................8 Lagoon programs........................8 General programs........................9 4 Handling .............................9 Load ............................9 Detergent ..........................10 To start the machine......................... 11 Additional functions........................12 When program has ended ......................13 5 Timer..............................14 6 Error codes ............................15... -
Page 5: Safety Precautions
User manual 1 Safety Precautions • Servicing shall be carried out only by authorized personnel. • Only authorized spare parts, accessories and consumables shall be used. • Only use detergent intended for water-wash of textiles. Never use dry cleaning agents. •... -
Page 6: General Safety Information
User manual – This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 7: Warranty Terms And Exclusions
Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec- tronic format. Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling agents to obtain optimal results and maintain product efficiency over time. -
Page 8: Program Description
User manual 3 Program description 3.1 Lagoon programs The following table shows some examples of available programs and a short description of those: Program Description Extraction Garment to process: 3 min WOOL HIGH EXTRACT 400 g Wool coat Jumper Heavy suit jacket Trousers Garment to process: 4 min... -
Page 9: General Programs
User manual 3.2 General programs The following table shows some examples of available programs and a short description of those: Program Description Extraction NORMAL COLOUR Cotton and terry. 6 min Different temperatures can be selected. 30°C - 60°C. High speed Detergent without bleach should be used. -
Page 10: Detergent
User manual 4.2 Detergent For general programs the detergent compartment can be used. Add correct amount of detergent (chemicals) accord- ing to detergent manufactorers recommendation. For lagoon programs the automatic liquid detergent system shall be used. The automatic liquid detergent system can also be used for general programs. -
Page 11: To Start The Machine
User manual 4.3 To start the machine Select program by turning the control knob. Lagoon programs General programs WOOL NORMAL COLOUR HIGH EXTRACT WOOL NORMAL WHITE MEDIUM EXTRACT SILK HEAVY SOIL SYNTHETIC MIX MILD MEDIUM EXTRACT SYNTHETIC MIX RINSE LOW EXTRACT HIGH EXTRACTION TIES RINSE... -
Page 12: Additional Functions
User manual 4.4 Additional functions There is a menu with additional functions available for selection after start. When pressing the control knob / start but- ton (on machines without control knob) the menu will appear on the display. Select from the menu by turning the control knob / pressing the temperature button/-s and press the control knob / start button to activate. -
Page 13: When Program Has Ended
User manual Auto restarts Select AUTO RESTARTS and activate. Set the number of automatic restarts that the machine will perform of the selected program. Press the control knob / start button to confirm the settings. 4.5 When program has ended Leave the door open when ready and do not close the detergent container all the way in (it shall be a bit open). -
Page 14: Timer
User manual 5 Timer The timer is used to start a part of the program (for example the last rinse of the udder cloth program) after pause on a pre-set time. The time can be set for all days or for selected days. To program the timer you need to activate the machines service mode. -
Page 15: Error Codes
User manual 6 Error codes A fault in the program or in the machine is indicated by an error code on the display. Some of these error codes can be solved easily without contacting service personnel. Error Text Cause/Action code 11:1 NO WATER Water level acknowledgement not reached in time. -
Page 16: Maintenance
User manual 7 Maintenance 7.1 General It is the responsibility of the owner of the machine/the laundry manager to make sure that maintenance is periodically performed. Note! Lack of maintenance may deteriorate the performance of the machine and may cause damage to components. -
Page 17: Detergent Container
User manual 7.4 Detergent container Clean the detergent container at regular basis to avoid that it is being clogged by detergent residue. Remove the detergent container from the machine. Remove the siphons (A) and clean the detergent container and siphons with hot water and for example a small brush. Also clean the plastic parts in the space where the detergent container was placed in the machine. -
Page 18: Drain
User manual 7.5 Drain If the machine is equipped with a drain pump, check the drain pump at regular basis. Clean if necessary. Open the door to the drain pump and pull out the hose. Remove the plug (A) to empty the drain into for example a baking plate or similar. -
Page 19: Water Inlet
User manual At regular basis, check the drain connection, joints in the drain pipe etc and remove any lint and dust. Clean with for example a small brush. When remounting, make sure the connections are tight. 7.6 Water inlet At regular basis, check the filter at the water inlet. Clean if necessary. Demount the hose to the water inlet and pull out the filter (A). -
Page 20: Disposal Information
User manual 8 Disposal information 8.1 Disposal of appliance at end of life Before disposing of the machine, make sure to carefully check its physical condition, and in particular any parts of the structure that can give or break during scrapping. The machine’s parts must be disposed of in a differentiated way, according to their different characteristics (e.g. - Page 24 Electrolux Professional AB 341 80 Ljungby, Sweden www.electroluxprofessional.com...
