WilTec 65320 Operation Manual

Submersible pump

Advertisement

Quick Links

Operation Manual
Submersible pump
65320–65326, 65441

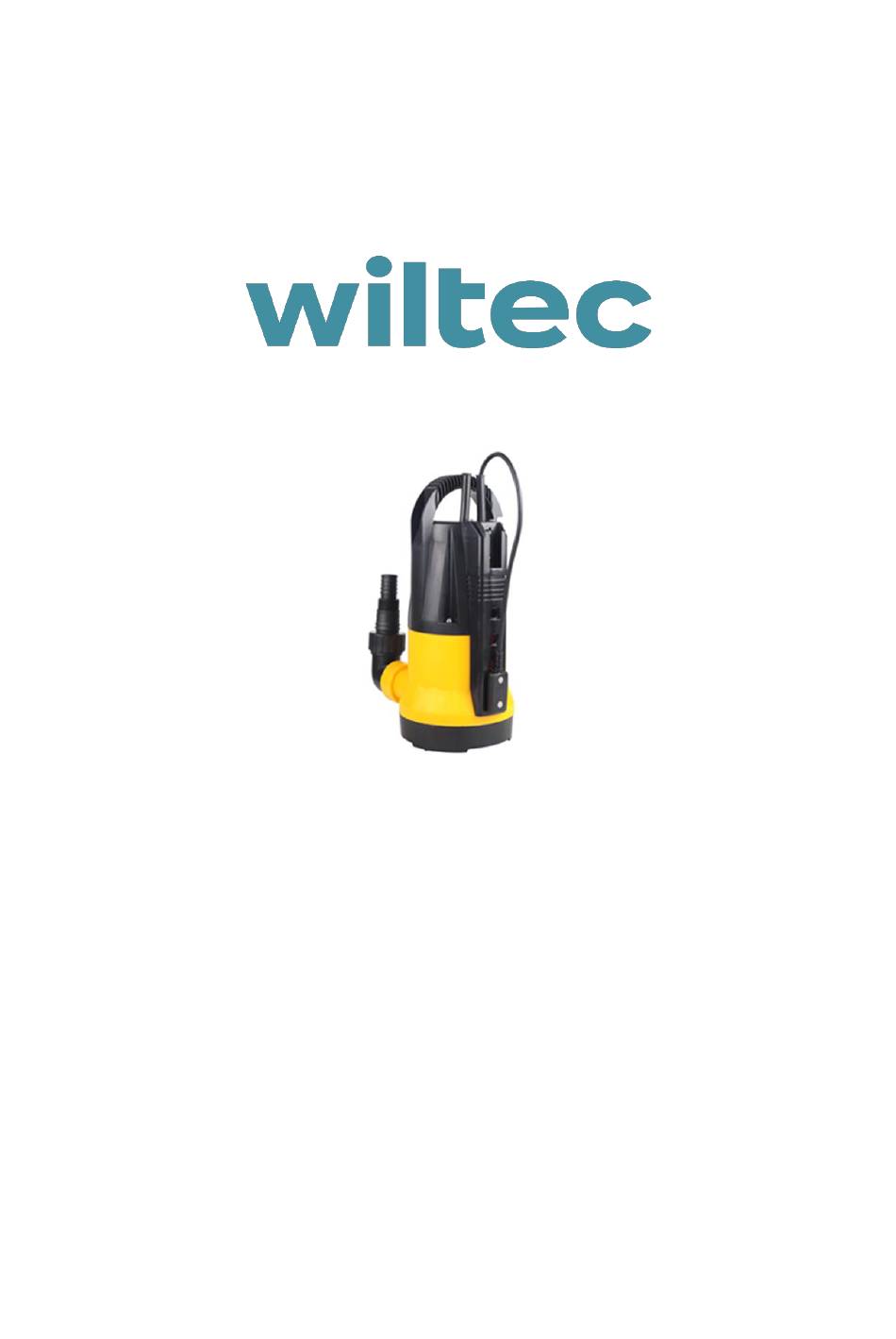

Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 65320 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for WilTec 65320

  • Page 1 Operation Manual Submersible pump 65320–65326, 65441 Illustration similar, may vary depending on model Read and follow the operating instructions and safety information before using for the first time. Technical changes reserved! Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.
  • Page 2 All rights re- served. The WilTec Wildanger Technik GmbH cannot be held accountable for any possible mistakes in this operating manual, nor in the diagrams and figures shown.
  • Page 3 • The electrical connection must be protected by a residual current device (RCD) with a rated residual current of no more than 30 mA. © by WilTec Wildanger Technik GmbH Item 65320–65326, 65441 Page 3 http://www.wiltec.de...
  • Page 4 Only use an approved extension cable that matches the power requirements of the machine. The wires must have a minimum cross-sectional area of 1.5 mm². If the cable is on a reel, it must be fully unwound. © by WilTec Wildanger Technik GmbH Item 65320–65326, 65441 Page 4 http://www.wiltec.de...
  • Page 5 Material of pump housing Plastic Cable length (m) (a) 1, 1¼, 1½ Hose size (″) (b) 1¼, 1½ 1¼, 1½ 1¼, 1½ 1¼, 1½ (c) 1¼, 1½ © by WilTec Wildanger Technik GmbH Item 65320–65326, 65441 Page 5 http://www.wiltec.de 03 2025-1...
  • Page 6 6. Attach a suitable rope (not included) to the carry handle (1) to lower the pump into deep water or lift it out of the water. The pump must never be lowered or lifted by the cable. © by WilTec Wildanger Technik GmbH Item 65320–65326, 65441 Page 6 http://www.wiltec.de...
  • Page 7 Fig. B1 Fig. B2 Fig. B3 Fig. B4 Fig. C © by WilTec Wildanger Technik GmbH Item 65320–65326, 65441 Page 7 http://www.wiltec.de 03 2025-1...
  • Page 8 (7) due to the decreasing water volume. 7. Unplug the power plug from the socket after use. 8. Lift the pump out of the water. Fig. D Fig. E © by WilTec Wildanger Technik GmbH Item 65320–65326, 65441 Page 8 http://www.wiltec.de 03 2025-1...
  • Page 9 Alternatively, you can try to reach the suspected blockage through the outlet (4) on the side of the pump. Caution! Always rinse with clean water after each use. © by WilTec Wildanger Technik GmbH Item 65320–65326, 65441 Page 9 http://www.wiltec.de...
  • Page 10: Troubleshooting

    2 min, and clear impeller if necessary (see “Blockages”). 4. Water too hot 4. Ensure that the water temper- ature does not exceed 35 ℃. © by WilTec Wildanger Technik GmbH Item 65320–65326, 65441 Page 10 http://www.wiltec.de 03 2025-1...
  • Page 11 This logo indicates that this electric equipment must not be disposed with the domestic waste. The company WilTec Technik GmbH has been registered in the German registry EAR under the WEEE- registration number DE45283704. Disposal of used electrical and electronic appliances...
