Operation Manual

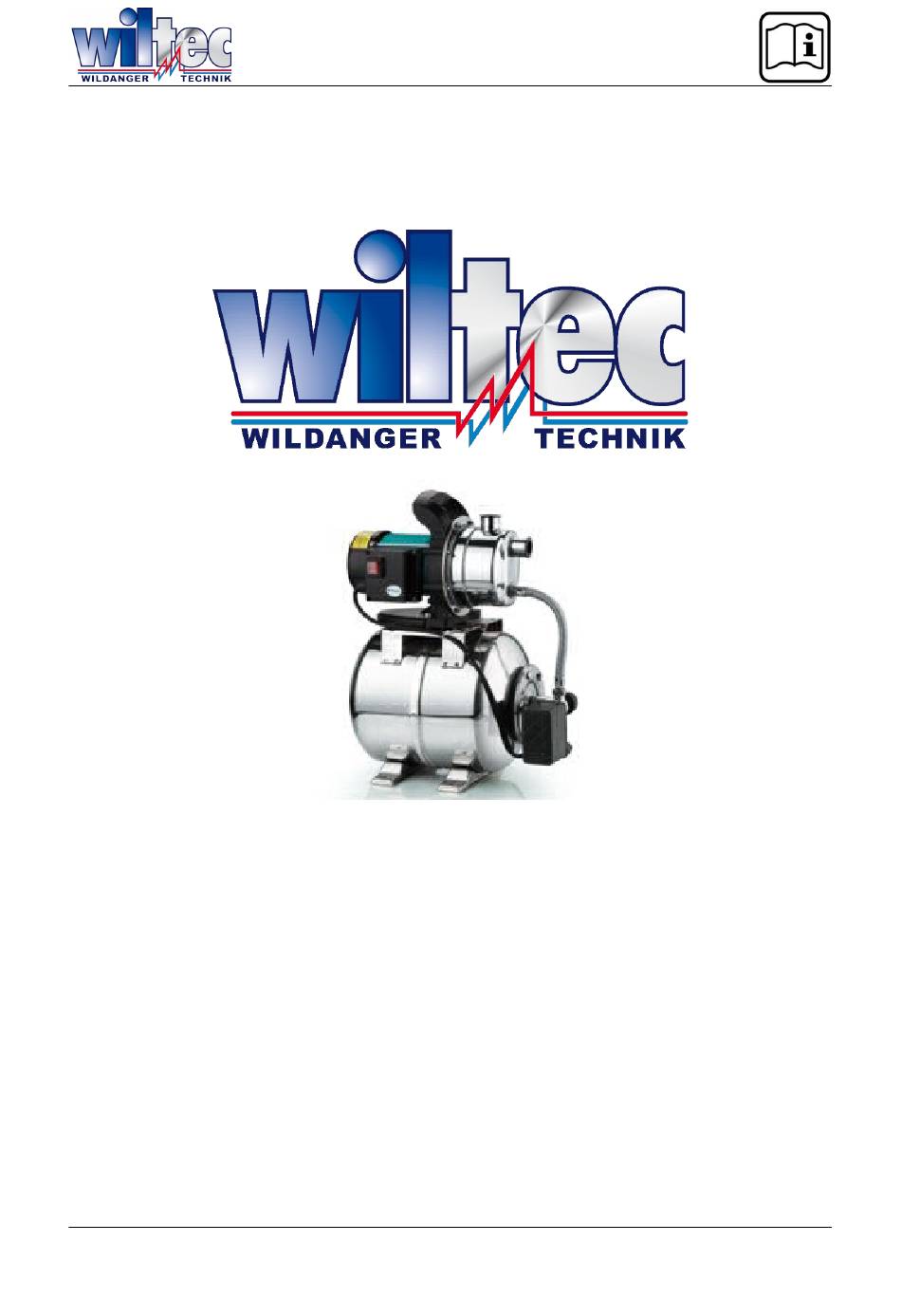

Garden Pump - 61543
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can differ
insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities please contact us.
© by WilTec Wildanger Technik GmbH
Seite 13
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 61543 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WilTec 61543

Summary of Contents for WilTec 61543

  • Page 1 Due to further developments, illustrations, functioning steps and technical data can differ insignificantly. Updating the documentation If you have suggestions for improvement or have found any irregularities please contact us. © by WilTec Wildanger Technik GmbH Seite 13 http://www.WilTec.de http://www.aoyue.eu...
  • Page 2 The information contained in this document is subject to change without prior notice. No part of this document can be copied or duplicated in another form without the prior written consent of WilTec Wildanger Technik GmbH. The WilTec Wildanger Technik GmbH assumes no liability for any errors in this user manual or the connection diagram.
  • Page 3 The information in these operating instructions is marked as follows: Danger! Warning of personal injury or environmental damage. Risk of electric shock! Warning against personal injury from electricity. Attention! Warning of material damage. Note: Supplementary information. © by WilTec Wildanger Technik GmbH Seite 15 http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de...
  • Page 4 Do not expose the appliance to rain. Never use the unit in a wet environment.  Do not use the device in potentially explosive areas or in the vicinity of flammable liquids or gases!  © by WilTec Wildanger Technik GmbH Seite 16 http://www.WilTec.de http://www.aoyue.eu...

  • Page 5: Before Commissioning

    When operating at garden ponds and swimming pools, the device must be installed in a flood-  proof manner and protected against falling in. Additional legal requirements must be taken into ac- count. © by WilTec Wildanger Technik GmbH Seite 17 http://www.WilTec.de http://www.aoyue.eu...
  • Page 6 All parts of the pressure line must be installed correctly.  Danger! Non-pressure-resistant parts and improper installation may cause the pressure line to burst during operation. Liquid escaping at high pressure can injure you! © by WilTec Wildanger Technik GmbH Seite 18 http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de...
  • Page 7 5) Open the pressure line (turn on the water tap or spray nozzle) so that air can escape during suc- tion. 6) Switch on the device (see "Operation"). 7) If water escapes evenly, switch off the appliance. © by WilTec Wildanger Technik GmbH Seite 19 http://www.WilTec.de http://www.aoyue.eu...

  • Page 8: Operation

    3) Make sure that the device and connected accessories are depressurized. Further mainte- nance or repair work other than that described here may only be carried out by qualified personnel. © by WilTec Wildanger Technik GmbH Seite 20 http://www.WilTec.de http://www.aoyue.eu...
  • Page 9 If no water is pumped after approx. 10 seconds, hold down the reset button until water emerges. No mains voltage.  Check cable, plug, socket and fuse. Mains voltage too low.  Use extension cable with sufficient wire cross-section. © by WilTec Wildanger Technik GmbH Seite 21 http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de...
  • Page 10 Replace mechanical seal. Pump blocked or defective.  see above Pressure too low: Suction line leaking or suction height too high.  See above Pump blocked or defective.  See above © by WilTec Wildanger Technik GmbH Seite 22 http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de...

  • Page 11: Technical Data

    Please describe the identified fault when sending in for repair. 9) Technical Data Technical Data Mains voltage/ frequency 230V /50Hz Nominal Power 1200W Flow rate max. 3800l/h Max. delivery head Inlet temperature max. © by WilTec Wildanger Technik GmbH Seite 23 http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de...
