Operation Manual
Submersible Pump
65328–65335
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for WilTec 65328
Summary of Contents for WilTec 65328

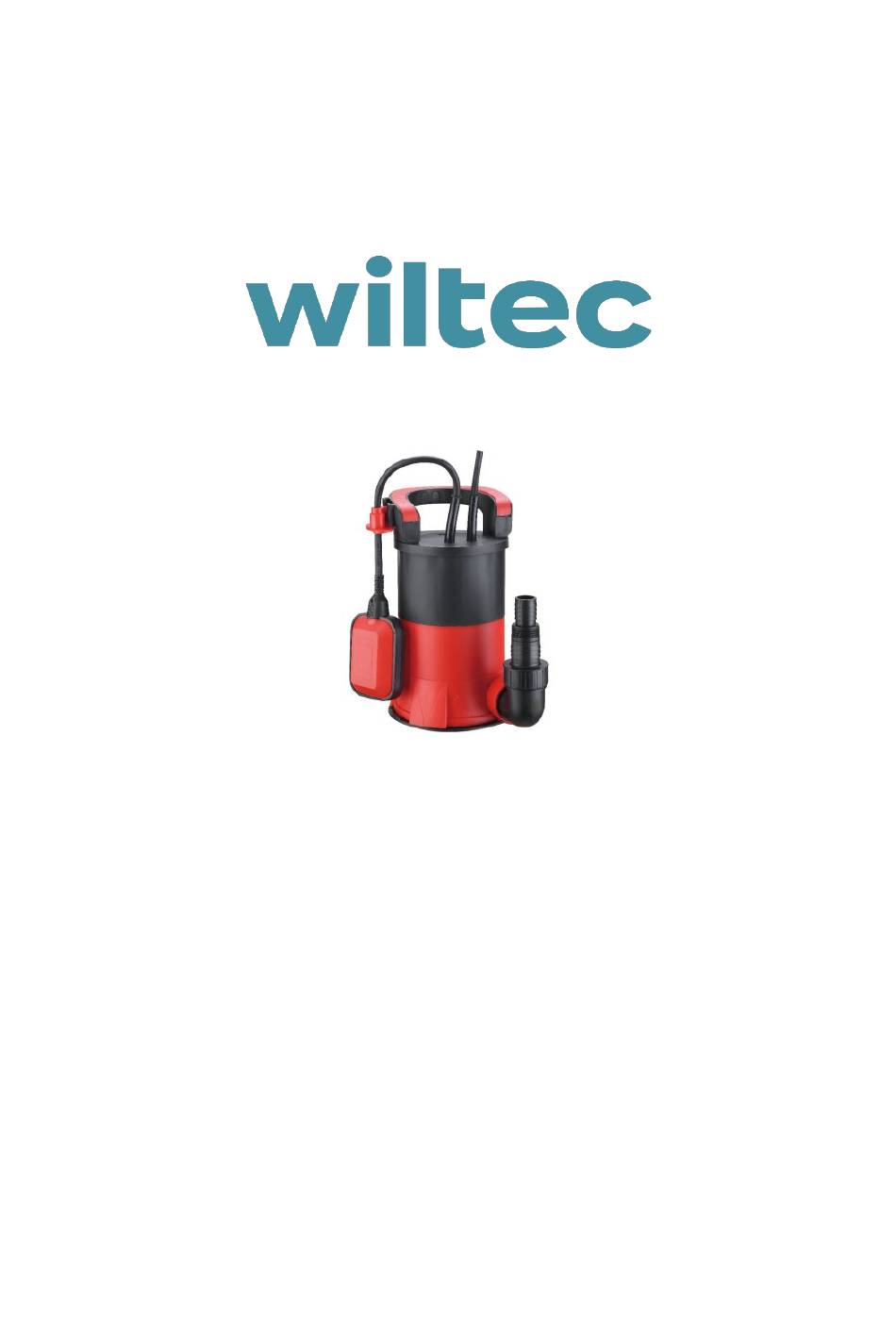

- Page 1 Operation Manual Submersible Pump 65328–65335 Illustration similar, may vary depending on model Read and follow the operating instructions and safety information before using for the first time. Technical changes reserved! Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.
- Page 2 All rights re- served. The WilTec Wildanger Technik GmbH cannot be held accountable for any possible mistakes in this operating manual, nor in the diagrams and figures shown.
- Page 3 Submerge pump at a slight angle This symbol indicates that the pump must be submerged into the water at a slight angle to allow the remaining air to escape. © by WilTec Wildanger Technik GmbH Item 65328–65335 Page 3 http://www.wiltec.de...
- Page 4 Never insert any objects or limbs into the device. • This device is not a toy! Keep it away from children and animals. Do not leave the device unat- tended during operation. © by WilTec Wildanger Technik GmbH Item 65328–65335 Page 4 http://www.wiltec.de...
- Page 5 Cleaning agents Fuels (e.g., petrol, diesel) Oils Greases Petroleum Nitro-cellulose thinner Wastewater from toilets and urinal installations • The device must not be used at freezing temperatures. © by WilTec Wildanger Technik GmbH Item 65328–65335 Page 5 http://www.wiltec.de 07 2024-1...
- Page 6 The illustrations in this operating manual feature the device by way of example. Some using or operating functions are similar or the same, but some appearance details will differ from the real device. Fig.1 Fig. 2 © by WilTec Wildanger Technik GmbH Item 65328–65335 Page 6 http://www.wiltec.de...
- Page 7 Transport • Hold onto the mains plug while pulling the power cable out of the socket. • Do not use the power cable to drag the device. © by WilTec Wildanger Technik GmbH Item 65328–65335 Page 7 http://www.wiltec.de 07 2024-1...
- Page 8 Note that the conveying capacity decreases with the increasing length of the water discharge line. Hose Line If necessary, you can cut the reducer (6) to the desired diameter. © by WilTec Wildanger Technik GmbH Item 65328–65335 Page 8 http://www.wiltec.de...
- Page 9 5. When using a hose with an internal thread (1″): Screw the hose connection onto the reducer (6) (see Fig. 6). 6. Alternatively, you can also screw a hose with an internal thread (1½″) directly onto the elbow (8). Fig. 6 Fig. 7 © by WilTec Wildanger Technik GmbH Item 65328–65335 Page 9 http://www.wiltec.de 07 2024-1...
- Page 10 When the cable clip is inserted into the float switch locking device (4) and the float switch cable is pulled to the correct position, the float switch will remain open unless manually removed or shut off (see Fig. 9). Fig. 8 Fig. 9 © by WilTec Wildanger Technik GmbH Item 65328–65335 Page 10 http://www.wiltec.de 07 2024-1...
- Page 11 The device will be switched on when the plug is inserted into the socket. • The device will be switched off when the plug is pulled out of the socket. © by WilTec Wildanger Technik GmbH Item 65328–65335 Page 11 http://www.wiltec.de...
- Page 12 Check whether the used hose diameter is too small. • Check whether the hose line is kinked or blocked. Remove kinks and/or blockages. • Check the reducer (6) and/or outlet for blockages. © by WilTec Wildanger Technik GmbH Item 65328–65335 Page 12 http://www.wiltec.de 07 2024-1...
- Page 13 (see Fig. 12) • Clean the bottom of the pump as well as the im- peller by means of a jet of water Fig. 12 © by WilTec Wildanger Technik GmbH Item 65328–65335 Page 13 http://www.wiltec.de 07 2024-1...
- Page 14 This logo indicates that this electric equipment must not be disposed with the domestic waste. The company WilTec Technik GmbH has been registered in the German registry EAR under the WEEE- registration number DE45283704. Disposal of used electrical and electronic appliances...
