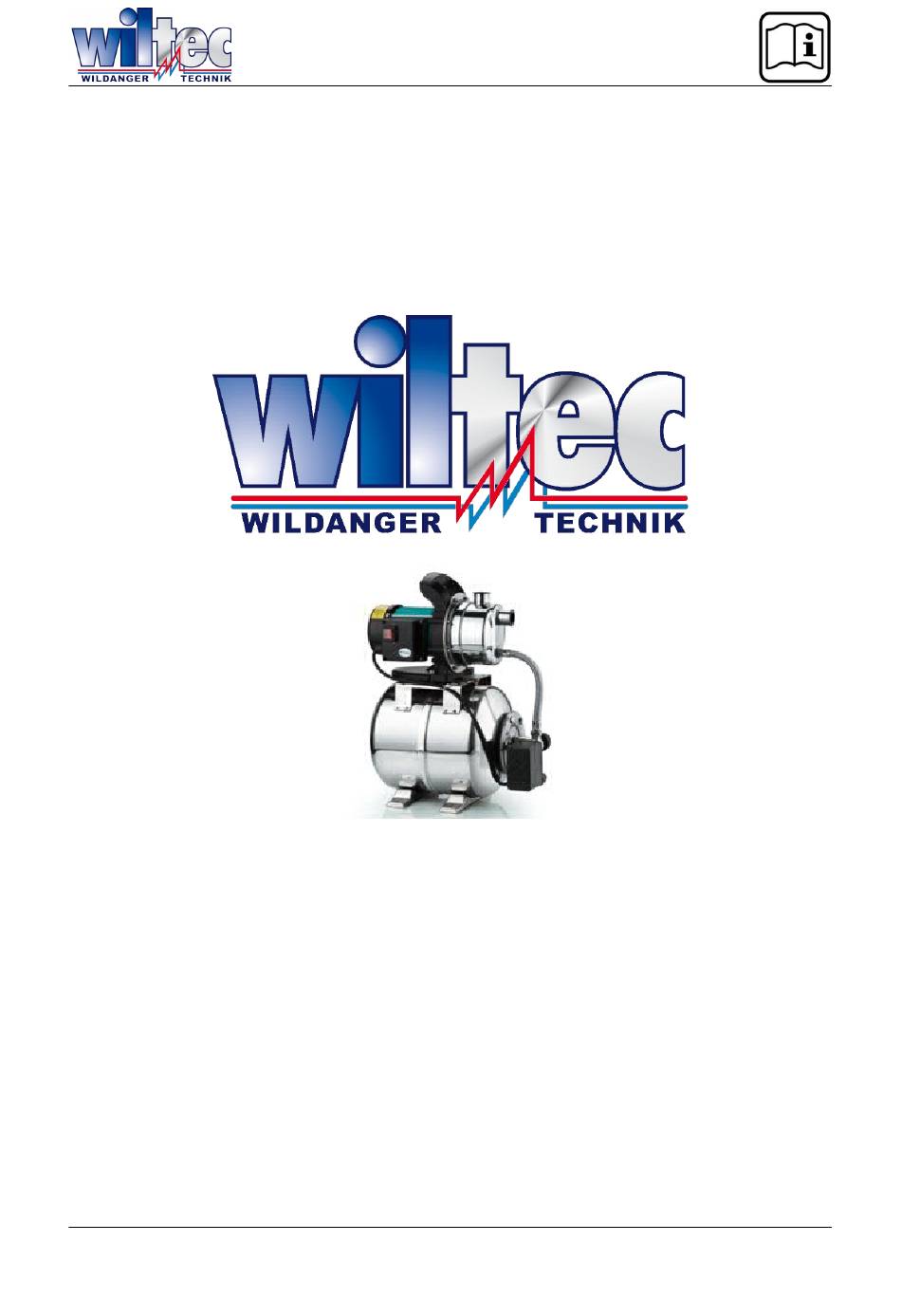

Operation Manual
Garden Pump
ARTICLE 61855
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can differ
insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities please contact us.
© by WilTec Wildanger Technik GmbH
Seite 12
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de
Advertisement
Table of Contents
Related Manuals for WilTec 61855
Summary of Contents for WilTec 61855
- Page 1 Due to further developments, illustrations, functioning steps and technical data can differ insignificantly. Updating the documentation If you have suggestions for improvement or have found any irregularities please contact us. © by WilTec Wildanger Technik GmbH Seite 12 http://www.WilTec.de http://www.aoyue.eu...
- Page 2 The information contained in this document is subject to change without prior notice. No part of this document can be copied or duplicated in another form without the prior written consent of WilTec Wildanger Technik GmbH. The WilTec Wildanger Technik GmbH assumes no liability for any errors in this user manual or the connection diagram.
- Page 3 for emptying swimming pools, garden ponds and water tanks. The maximum allowable tem- perature of the pumped medium is 35 °C. © by WilTec Wildanger Technik GmbH Seite 14 http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de...
-
Page 4: Intended Use
Do not expose the appliance to rain. Do not use the unit in a wet environment. Do not use the device in potentially explosive areas or in the vicinity of flammable liquids or gases! © by WilTec Wildanger Technik GmbH Seite 15 http://www.WilTec.de http://www.aoyue.eu... - Page 5 A damaged device may only be used again after it has been properly repaired. Do not repair the device yourself! Only specialists may carry out repairs on pumps and pressure vessels. © by WilTec Wildanger Technik GmbH Seite 16 http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de...
-
Page 6: Before Start-Up
The suction line should rise steadily towards the pump to prevent air entrapment. A sufficient water supply must be ensured and the end of the suction line must always be in the water. © by WilTec Wildanger Technik GmbH Seite 17 http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de... -
Page 7: Pressure Connection
5. Open the pressure line (turn on the water tap or spray nozzle) so that air can escape during suc- tion. 6. Switch on the device (see "Operation"). 7. If water is emitting evenly, switch off the appliance. © by WilTec Wildanger Technik GmbH Seite 18 http://www.WilTec.de http://www.aoyue.eu... -
Page 8: Operation
3. Empty the pump completely by unscrewing the water drain plug at the bottom of the pump. 4. Remove the suction and pressure lines from the unit. 5. Store the unit in a frost-free room (at least 5 °C). © by WilTec Wildanger Technik GmbH Seite 19 http://www.WilTec.de http://www.aoyue.eu... -
Page 9: Troubleshooting
With the motor switched off, insert a screwdriver or similar through the ventilation slots of the motor and turn the fan wheel. Pump blocked or defective. Dismantle and clean the pump. Clean diffuser, replace if necessary. Clean impeller, replace if necessary. © by WilTec Wildanger Technik GmbH Seite 20 http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de... -
Page 10: Specifications
SPECIFICATIONS Mains voltage / Frequen- 230 V ~ 50 Hz Rated Power 1200 W Delivery Rate max. 3800 l/h Delivery Head max. 50 m Inlet Temperature max. 35 °C © by WilTec Wildanger Technik GmbH Seite 21 http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de... -
Page 11: Disposal Regulations
All WilTec electric devices that fall under the WEEE regulations are labelled with the crossed-out wheeled waste bin logo. This logo indicates that this electric equipment must not be disposed with the domestic waste.
