- Page 1 Quick Start Guide 2-Port USB DisplayPort Cable KVM Switch GCS52DP PART NO. Q1485 www.iogear.com...
-
Page 2: Package Contents

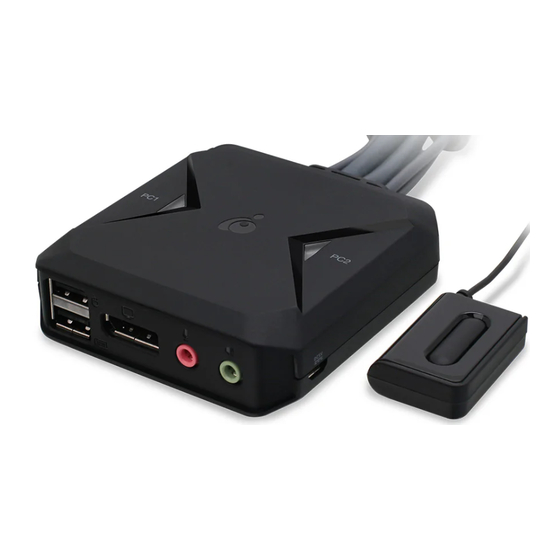

Package Contents 1 x GCS52DP 1 x Quick Start Guide 1 x Warranty Card System Requirements Console: • DisplayPort monitor • Standard wired USB keyboard • Standard 3-button wired USB mouse • Speakers and Microphones (optional) Computer: • DisplayPort port •... - Page 3 Overview 1. Port LEDs 8. KVM Cables - DisplayPort 2. USB port for keyboard and mouse 9. KVM Cables - USB 3. DisplayPort for monitor 10. KVM Cables - Speakers 4. 3.5 mm audio input 11. KVM Cables - Microphone 5.
- Page 4 Hardware Installation Step 1 Console section: Connecting to microphone, speakers, keyboard, mouse, DisplayPort monitor Step 2 Computer section: 2 DisplayPort computers (with the DP, USB, and audio cables connected) Switch between the two connected computers using the remote pushbutton. Micro USB port for optional power source.
-
Page 5: Emc Information
EMC Information Federal Communications Commission Statement (FCC) Statement: This equipment has been tested and found to comply with the limits for a Class B digital service, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 6: Limited Warranty
Important Product Information Product Model Serial Number Contact WE’RE HERE TO HELP YOU! NEED ASSISTANCE SETTING UP THIS PRODUCT? Make sure you: 1. Visit www.iogear.com for more product information 2. Visit www.iogear.com/support for live help and product support IOGEAR iogear.custhelp.com support@iogear.com www.iogear.com...
