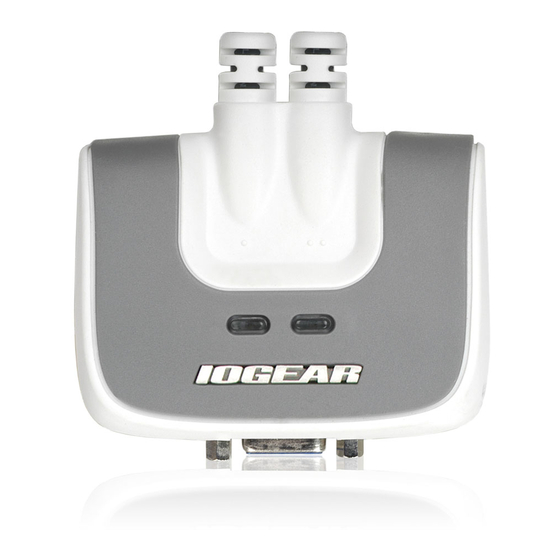

IOGear GCS632U User Manual

2-port usb kvm switch with audio
Hide thumbs Also See for GCS632U:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual

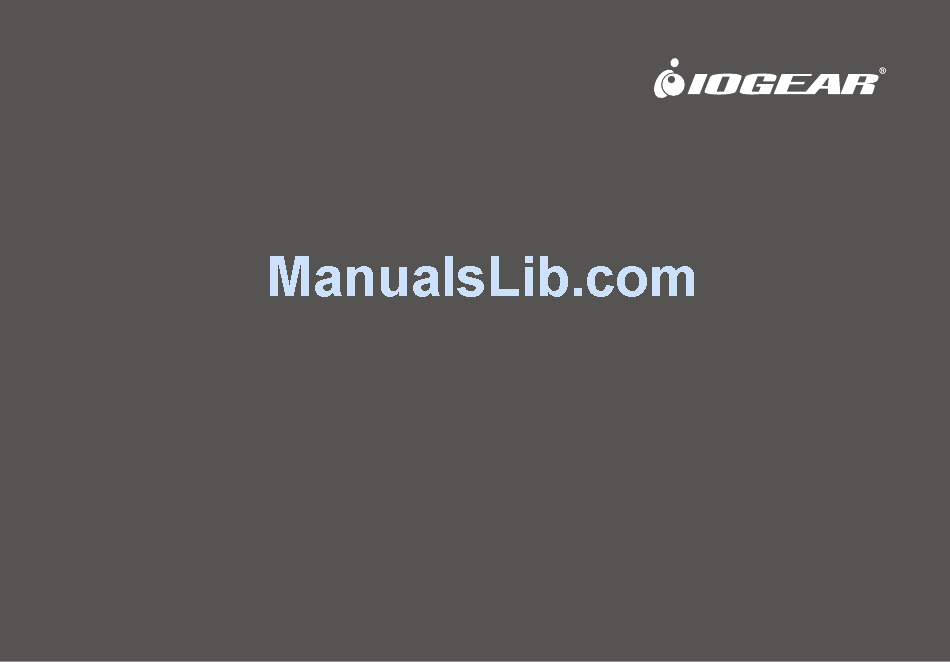

User Manual
2-Port USB KVM Switch with Audio
GCS632U
PART NO. M0104
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GCS632U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IOGear GCS632U

Summary of Contents for IOGear GCS632U

  • Page 1 User Manual 2-Port USB KVM Switch with Audio GCS632U PART NO. M0104...
  • Page 2 With the MiniView™ Micro USB PLUS by IOGEAR®, you can access two USB computers from a single USB console (USB keyboard, USB mouse and monitor). MiniView™ Micro USB PLUS allows you to change ports easily by entering Hot Key combinations from the keyboard.

  • Page 3: Table Of Contents

    Table of Contents Package Contents Overview Features Requirements Introduction Installation Operation Appendix Specification Technical Support Radio & TV Interference Statement Limited Warranty Federal Communications Commission (FCC) Statement CE Compliance Contact...

  • Page 4: Package Contents

    Package Contents This package contains: • 1 MiniView™ Micro USB PLUS 2 Port KVM Switch (cables built-in) 1 User Manual • 1 Quick Start Guide • • 1 Warranty Registration Card If any items are damaged or missing, please contact your dealer.

  • Page 5: Overview

    Overview Introducing the two port MiniView™ Micro USB PLUS KVM switch from IOGEAR® – A simple solution for those with more PCs than hands. Use one USB keyboard, one monitor and one USB mouse to control two USB computers. This self-powered KVM switch features the unique USB sniffing technology for USB mouse &...

  • Page 6: Features

    Features Use one USB keyboard, monitor and USB mouse to control two USB computers. • • 6’ long molded-in cables to simplify setup. Share your multimedia speakers among the two connected computers. • • Full support for Mac and Sun systems. Supports special keys on Mac and Sun keyboards.

  • Page 7: Requirements

    Requirements Console • A VGA, SVGA, or Multisync monitor capable of the highest resolution that you will be using on any computer in the installation A USB Keyboard • • A USB Mouse Computers The following equipment must be installed on each computer that is to be connected to the system: A VGA, SVGA or Multisync card •...

  • Page 8: Introduction

    Introduction 1. Port LEDs (Refer to Appendix for LED indications) 2. KVM Cables 3. Console Ports 4. Speaker Jack...

  • Page 9: Installation

    1. Plug your keyboard, monitor, mouse, into their respective ports on the GCS632U. The keyboard and mouse ports are labeled with an icon, located at the bottom of the switch, to indicate which is which.
  • Page 10 (see hotkey port selection). 2. Repeat the above step for your second computer. 3. Turn on the power to the computers and refer to Operations Instructions. NOTE: The GCS632U’s Power On default is to link to the first computer you turn on.

  • Page 11: Operation

    Operation Hotkey Operation key), refer to the section in the manual “Alternate Port Switching Keys” for information on The hotkey operations of the KVM assume the re-configuring the KVM’s hotkeys, and page 15 use of a PC-Compatible keyboard with the for Mac keyboard operation.
  • Page 12 Port Switching Hotkey Setting Mode (HSM) For all Hotkey operations, you must use the To toggle between the two computers, quickly number keypad on the right side of your tap the Scroll Lock key twice: keyboard [Scroll Lock], [Scroll Lock] To Invoke Hotkey Mode (PC-Compatible NOTE 1: Please make sure the keyboard Keyboard):...
  • Page 13 The KVM will now enter Hotkey mode, and If the KVM did not enter Hotkey mode, repeat the above procedure keeping in mind that this the Caps Lock and Scroll Lock LEDs flash in succession to indicate this. On PC-Compatible procedure must be done quickly and in the time-frame indicated.
  • Page 14 To Invoke Hotkey Mode (Mac Keyboard): The KVM will now enter Hotkey mode; indicated by blinking of the Caps Locks LED. On some Mac keyboards, this LED is on the Caps Lock 1. Press and hold Clear key for two seconds key itself.
  • Page 15 Mac keyboard Clear Minus...
  • Page 16 NOTE: Switching Ports If using the Num Lock and Minus key to invoke You may also switch ports on the KVM by doing Hotkey function is not optimal, refer to the next the following: page for instructions on changing the hotkey invocation keys.
  • Page 17 Auto Scan Mode Alternate Hotkey Invocation Keys You may also switch ports on the KVM by doing In case the default Hotkey Mode invocation keys the following: (Num Lock and Minus) are not optimal in your setup, you may change them to Ctrl and F12, 1.
  • Page 18 1. Invoke Hotkey Mode Restore Defaults 2. Press and release T To restore the GCS632U to its factory default settings, do the following: 1. Invoke Hotkey Mode 2. Press and release [R] key. 3. Press [Enter]...
  • Page 19 The GCS632U’s factory default settings are as follows: Hotkey Invocation [Num Lock] [ - ] Port Switching [Scroll Lock] [Scroll Lock] Keyboard Platform [Auto] Keyboard Language [English]...
  • Page 20 Multi Platform (Mac, Sun, Win) and Multi Operation Keyboard Language Setup Platform The default port settings are for a Windows Using a PC keyboard to control a Auto Compatible operating platform, and US English Window based PC keyboard language code (Refer to the previous Using a Mac keyboard to control Auto section).
  • Page 21 Keyboard Operating Platform 1. Bring the KVM focus to the desired port The GCS632U default configuration is for a PC- 2. Invoke Hotkey Mode Compatible keyboard operating platform. 3. Press and release the appropriate function key (see table): To change the keyboard operating platform, do...
  • Page 22 Using a PC keyboard to emulate a Sun Keyboard After you set up the appropriate Keyboard Platform, you will be able to use a PC (101/104) key keyboard to emulate the functions of the Sun keyboard when the Control key [Ctrl] is used in conjunction with other keys.
  • Page 23 Windows Keyboard Sun Keyboard Windows Keyboard Sun Keyboard [Ctrl] [T] Stop [Ctrl] [F9] Find [Ctrl] [F2] Again [Ctrl] [F10] [Ctrl] [F3] Props [Ctrl] [1] [Ctrl] [F4] Undo [Ctrl] [2] [Ctrl] [F5] Front [Ctrl] [3] [Ctrl] [F6] Copy [Ctrl] [4] [Ctrl] [F7] Open [Ctrl] [H] Help...
  • Page 24 Using a PC keyboard to emulate a Mac Keyboard After you set up the appropriate Keyboard Platform, you will be able to use a PC (101/104) key keyboard to emulate the functions of the Mac keyboard. The corresponding functions are shown in the table to the right.
  • Page 25 Windows Keyboard Mac Keyboard PC Keyboard Mac Keyboard [Shift] Shift [Alt] L Alt/Option [Control] Ctrl [Prt_Sc] [Win] [Scroll Lock] [Ctrl] [1] [Desktop Menu] [Ctrl] [2] [Enter] Return [Ctrl] [3] [Ins] Help [Ctrl] [4] [Ctrl] [Win] F 15...
  • Page 26 List Hotkey Settings USB Reset To see a list of the current hotkey settings, do If the USB loses focus and needs to be reset, the following: do the following: 1. Open a text editor (such as Notepad, 1. Invoke Hotkey Mode Textedit, or Word) 2.

  • Page 27: Appendix

    Appendix LED Display Table Activity Indication Port is not selected On (Steady) Port is connected to an active computer Flashing (On and Off Equal) Port is connected to an active computer and is being accessed in Auto Scan Mode...

  • Page 28: Specification

    Specification Function Specification Computer Connection Port Selection Hot Keys LEDs Selected Console Keyboard 1 x Type A USB port Connectors Mouse 1 x Type A USB port Video 1 x HDB-15 female Audio 1 x Stereo earphone jack KVM Cable Keyboard &...
  • Page 29 Function Specification Scan Interval 5 Seconds (Default) Operating Temperature 0 - 50° C Storage Temperature -20 - 60° C Humidity 0 - 80% RH Noncondensing Housing Plastic Weight 0.38 kg Dimensions (L x W x H) 8.1 x 6.9 x 2.6 cm...

  • Page 30: Technical Support

    Technical Support If you need technical support, please check out our IOGEAR Tech Info Library (T.I.L.) at www.iogear.com/support for the latest tips, tricks, and troubleshooting. The IOGEAR T.I.L. was designed to provide you with the latest technical information about our products. Most of the answers to your...

  • Page 31: Radio & Tv Interference Statement

    Radio & TV Interference Statement WARNING!!! This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause interference to radio communications. This equipment has been tested and found to comply with the limits for a Class B computing device pursuant to Subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment.

  • Page 32: Limited Warranty

    Limited Warranty WE’RE HERE TO HELP YOU! NEED ASSISTANCE SETTING UP THIS PRODUCT? Make sure you: 1. Visit www.iogear.com for more product information 2. Visit www.iogear.com/support for live help and product support Warranty Information This product carries a 3 Year Limited Warranty. For the terms and conditions of this warranty, please go to http://www.iogear.com/support/warranty...

  • Page 33: Federal Communications Commission (Fcc) Statement

    Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential setting.

  • Page 34: Ce Compliance

    CE Compliance This device has been tested and found to comply with the following European Union directives: Electro- magnetic Capability (89/336/EMC), Low Voltage (73/23/EEC) and R&TTED (1999/5/EC).

  • Page 35: Contact

    IOGEAR and the IOGEAR logo are trademarks or registered trademarks of IOGEAR, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. IBM is a registered trademark of International Business Machines, Inc. IOGEAR makes no warranty of any kind with regards to the information presented in this document.
  • Page 36 About Us About Us IOGEAR offers connectivity solutions that are innovative, fun, and stylish, helping people enjoy daily life using our high technology products. GREEN IOGEAR is an environmentally conscious company that emphasizes the importance of conserving natural resources. The use of our technology solutions helps reduce electronic waste.
