- Page 1 Quick Start Guide 2/4-Port 4K DisplayPort KVMP Switch with Dual Video Out and RS-232 GCS1932M/GCS1934M/GCS1932MX/GCS1934MX PART NO. Q1499/Q1500 www.iogear.com...
-
Page 2: Package Contents

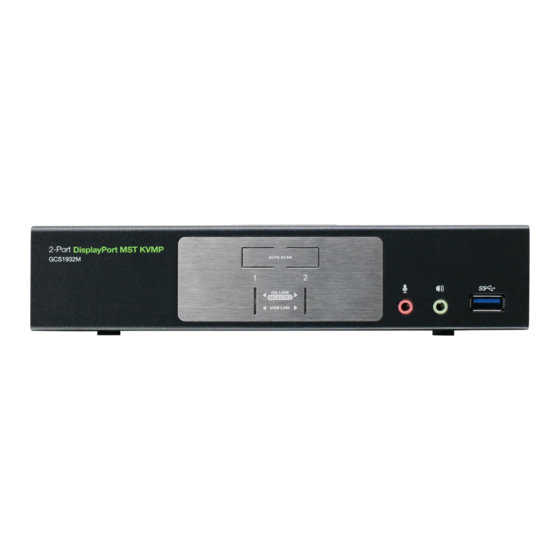

Package Contents GCS1932M / GCS1934M 1 x GCS1932M / GCS1934M 2 x DisplayPort 1.2 Cables / 4 x DisplayPort 1.2 Cables 2 x USB 3.0 Cables / 4 x USB 3.0 Cables 2 x Audio Cable Sets / 4 x Audio Cable Sets... - Page 3 Overview GCS1932M Front View GCS1932M Front View GCS1932M Rear View GCS1932M Rear View CONSOLE A. Port selection pushbuttons B. Port LEDs C. Analog 2.1 Audio (Speaker and Microphone) D. USB 3.0 Hub E. Console Ports F. KVM Ports G. Power Jack...
- Page 4 GCS1934M Front View GCS1934M Front View GCS1934M Rear View GCS1934M Rear View CONSOLE...
-
Page 5: Hardware Installation
Hardware Installation 1. Connect the USB keyboard and mouse to the GCS1932M/GCS1934M console ports 2. Connect the DisplayPort and/or HDMI monitor to the GCS1932M/GCS1934M console ports 3. Turn the monitor power to ON 4. Connect the main microphone and speakers into the GCS1932M/GCS1934M microphone and speaker jacks located on the front side panel. - Page 6 Hardware Installation GCS1932M Rear View CONSOLE GCS1932M Front View...
- Page 7 GCS1934M Rear View CONSOLE GCS1934M Front View...
-
Page 8: Operation
Switching between connected computer sources: a. Manual – involves pressing the port selection pushbuttons located on the GCS1932M/GCS1934M’s front panel. b. Hotkey – involves entering combinations from the keyboard (list of complete Hotkey Settings is available in the manual, located on our website). -
Page 9: Emc Information
EMC Information Federal Communications Commission Statement (FCC) Statement: This equipment has been tested and found to comply with the limits for a Class B digital service, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 10: Limited Warranty
Serial Number Contact WE’RE HERE TO HELP YOU! NEED ASSISTANCE SETTING UP THIS PRODUCT? Make sure you: 1. Visit www.iogear.com for more product information 2. Visit www.iogear.com/support for live help and product support IOGEAR iogear.custhelp.com support@iogear.com www.iogear.com © 2018 IOGEAR...
