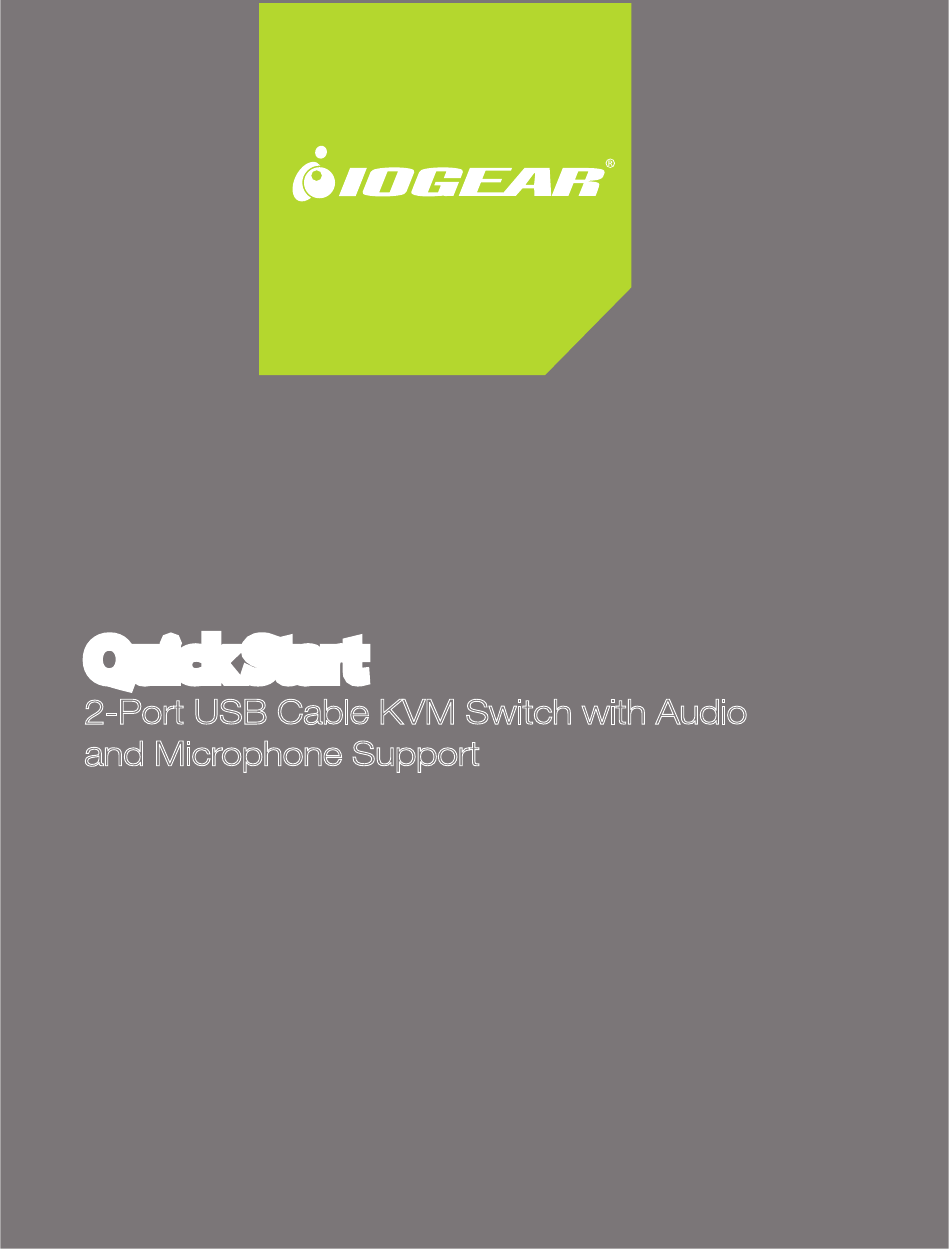

- Page 1 Quick Start Guide 2-Port USB Cable KVM Switch with Audio and Microphone Support GCS72U PART NO. Q1100-a...
-
Page 2: Package Contents
Package Contents 1 x 2-Port USB Cable KVM Switch 1 x Quick Start Guide 1 x Warranty Card System Requirements Operating System Computers - XP / Vista 32/64 - 2 Open USB Ports - Mac OS X or greater - A VGA (HDDB15) Connection - Sun Solaris Workstation - Linux, UNIX and other USB Supported Systems*... -
Page 3: Start Here
Overview Start Here! 1. Console USB Mouse Port 2. Console VGA Monitor Port 3. LEDs 4. Console USB Keyboard Port 5. Remote Switch Button 6. CPUs KVM Cables 7. Microphone Port 8. Audio Port... -
Page 4: Installation
Installation Step 1 Please make sure your computers and monitor are powered off before you start. Step 2 Connect the VGA cable from your monitor to the console VGA monitor port. Then connect your USB keyboard and mouse to the console USB keyboard port and console USB mouse port. -
Page 5: Port Switching
Installation Step 4 Connect a set of your molded KVM cable to each of your computers – VGA cable to the VGA output, USB cables to open USB ports from your computer, green audio cable to audio port and pink microphone cable to microphone port. -
Page 6: Federal Communications Commission (Fcc) Statement
Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential setting. -
Page 7: Warranty
WE’RE HERE TO HELP YOU! NEED ASSISTANCE SETTING UP THIS PRODUCT? Make sure you: 1. Use the live chat at www.iogear.com to try and solve any issues you may be having with the product 2. Visit the Tech Info Library/FAQ on www.iogear.com (under the Support tab) 3.
