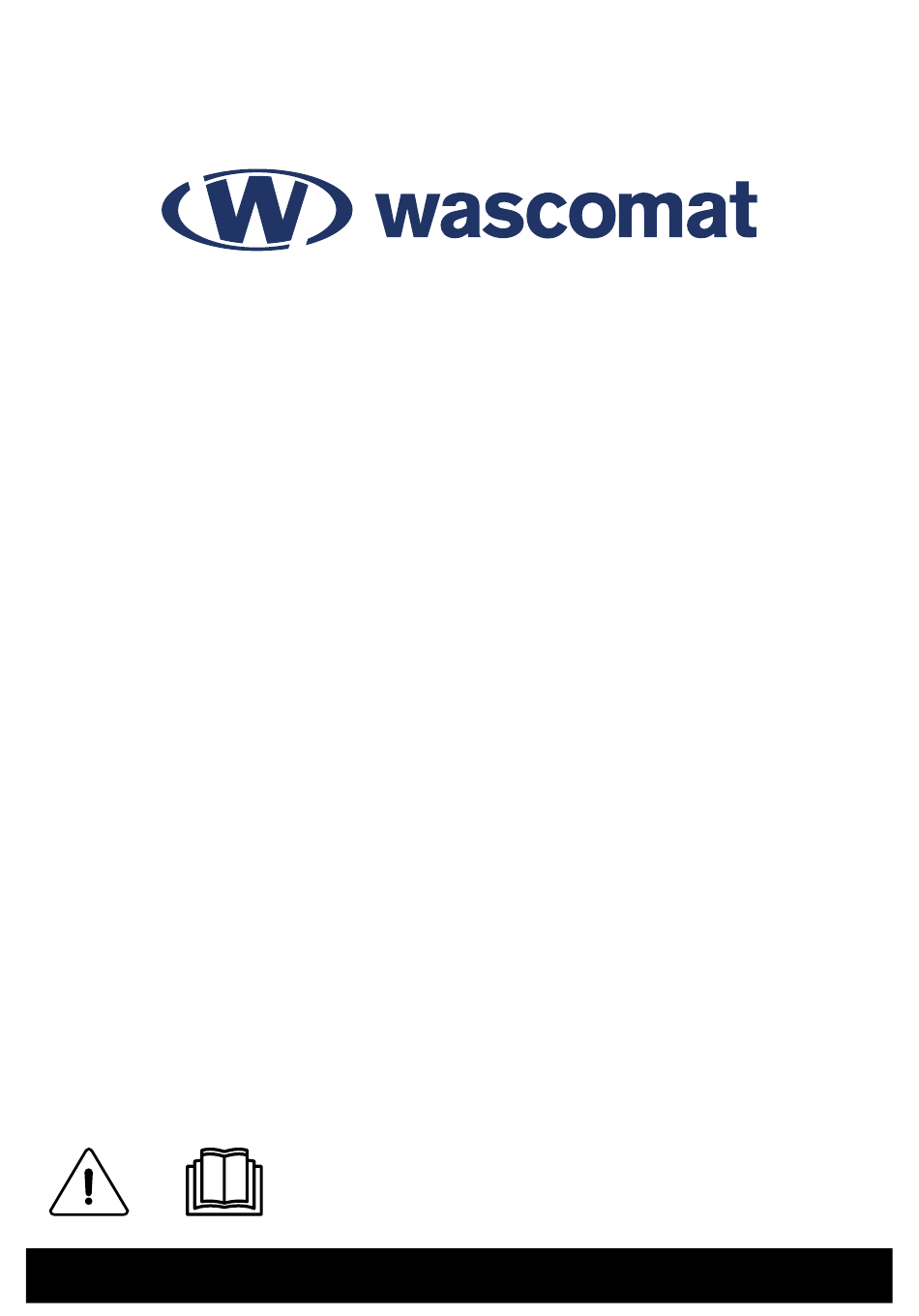

- Page 1 User Manual Washer — Super Dry WSD765 Compass Pro Type EXSM.X. 438921282/US 2024.02.01 Wascomat Commercial Laundry Equipment 516-371-4400 www.wascomat.com...
-
Page 2: Tech Support
WARRANTY CLAIMS Wascomat’s Technical Support Staff will honor valid manufacturer’s parts warranty claims providing your Wascomat machines are registered for warranty coverage upon installation. If they are not registered, you can validate your warranty claim by providing information about when and where you purchased the Wascomat machine(s), the model and serial number(s). - Page 3 Safety WARNING: ALL OPERATING AND MAINTENANCE PROCEDURES SHOWN ON THE NEXT PAGE OF THIS MANUAL MUST BE FOLLOWED DAILY FOR PROPER OPERATION OF YOUR MACHINE. MAKE CERTAIN TO KEEP THIS MANUAL IN A SECURE PLACE FOR FUTURE REFERENCE. PLEASE ENTER THE FOLLOWING INFORMATION AS IT APPEARS ON THE MACHINE(S) DATA PLATE(S).
-
Page 4: Important Safety Instructions
Safety IMPORTANT SAFETY INSTRUCTIONS WARNING - To reduce the risk of fire, electric shock, or injury to persons when using your appliance, including the following: 1. Read all instructions before using the appliance. 2. This machine must be securely bolted to an uncovered concrete floor. 3. - Page 5 Safety NOTICE TO: OWNERS, OPERATORS AND DEALERS IMPROPER INSTALLATION AND INADEQUATE MAINTENANCE, POOR HOUSEKEEPING AND WILLFUL NEGLECT OR BYPASSING OF SAFETY DEVICES MAY RESULT IN SERIOUS ACCIDENTS OR INJURY. TO ASSURE THE SAFETY OF CUSTOMERS AND/OR OPERATORS OF YOUR MACHINE, THE FOLLOWING MAINTENANCE CHECKS MUST BE PERFORMED ON A DAILY BASIS. Prior to operation of the machine, check to make certain that all operating instructions and warning signs are affixed to the machine and legible.
-
Page 6: Notice To Installer
Improper fastening of this machine to its foundation, inferior foundation materials, an undersized foundation, the use of fabricated steel bases not provided by Wascomat or its approved supplier(s), the use of an improper type, number, or size of mounting bolts, or failure to use proper hardware on mounting bolts may result in damage to the machine that will not be covered by the manufacturer's warranty. -
Page 7: Table Of Contents
Contents Contents 1 Safety Precautions ..........................9 General safety information......................9 Commercial use only........................9 Copyright ..........................9 Symbols..........................10 2 Program description .......................... 11 General........................... 11 Program description ......................... 11 Option buttons .........................12 3 Handling ............................13 Load ............................13 Detergent ..........................13 How to start the machine ......................14 3.3.1 OPL ..........................14 3.3.2 Coin operated machines ....................15 Additional functions........................16... -
Page 9: Safety Precautions
The machine/machines covered by this manual is/are made for commercial and industrial use only. 1.3 Copyright This manual is intended solely for consultation by the operator and can only be given to third parties with the permis- sion of Wascomat company. -
Page 10: Symbols
User Manual 1.4 Symbols Caution Caution, high voltage Read the instructions before using the machine... -
Page 11: Program Description
User Manual 2 Program description 2.1 General The machine is equipped with a number of programs adapted to the range of use to which the machine is intended — different segments use different programs. It is recommended to follow the care labelling of the garment as far as possible. 2.2 Program description The following table shows some examples of available programs: Program... -
Page 12: Option Buttons
User Manual 2.3 Option buttons The following table shows the available options and a short description of those: Option button Description HEAVY SOIL Long wash for heavy soiled textiles. One rinse is added. EXTRA RINSE... -
Page 13: Handling
User Manual 3 Handling 3.1 Load Load the goods into the machine according to recommendations and close the door. The recommended maximum load is 30 kg / 65 lbs. 3.2 Detergent Add the correct amount of detergent, bleach and softener according to recommendations. (Not valid if automatic dosing is used). -
Page 14: How To Start The Machine
User Manual 3.3 How to start the machine This manual cover different types of machine models. Check the panel on your machine and follow the description for your type of machine. 3.3.1 Select program by turning the control knob. Example of programs COLD ENERGY WARM ENERGY HOT ENERGY... -
Page 15: Coin Operated Machines
User Manual 3.3.2 Coin operated machines Select program by turning the control knob. It is also possible to select options. Note! Some programs do not allow options. Example of programs Options COLD HEAVY SOIL WARM QUICK WASH DELICATE EXTRA RINSE Insert correct amount of coins to start the machine. -
Page 16: Additional Functions
User Manual 3.4 Additional functions There is a menu with additional functions available for selection after start. When pressing the control knob / start but- ton (on machines without control knob) the menu will appear on the display. Select from the menu by turning the control knob / pressing the temperature button/-s and press the control knob / start button to activate. -
Page 17: When Program Has Ended
User Manual Auto restarts Select AUTO RESTARTS and activate. Set the number of automatic restarts that the machine will perform of the selected program. Press the control knob / start button to confirm the settings. 3.5 When program has ended Leave the door open when ready. -
Page 18: Timer
User Manual 4 Timer The timer is used to start a part of the program (for example the last rinse of the udder cloth program) after pause on a pre-set time. The time can be set for all days or for selected days. To program the timer you need to activate the machines service mode. -
Page 19: Error Codes
User Manual 5 Error codes A fault in the program or in the machine is indicated by an error code on the display. Some of these error codes can be solved easily without contacting service personnel. Error Text Cause/Action code 11:1 NO WATER Water level acknowledgement not reached in time. -
Page 20: Maintenance
User Manual 6 Maintenance 6.1 General It is the responsibility of the owner of the machine/the laundry manager to make sure that maintenance is periodically performed. Note! Lack of maintenance may deteriorate the performance of the machine and may cause damage to components. -
Page 21: Water Inlet
User Manual Note! Contact qualified service personnel to perform maintenance on the internal drain and hoses once a year. 6.6 Water inlet At regular basis, check the filter at the water inlet. Clean if necessary. Demount the hose to the water inlet and pull out the filter (A). When remounting, make sure the filter is in position and that the connections are tight. -
Page 22: Disposal Information
User Manual 7 Disposal information 7.1 Disposal of appliance at end of life Before disposing of the machine, make sure to carefully check its physical condition, and in particular any parts of the structure that can give or break during scrapping. The machine’s parts must be disposed of in a differentiated way, according to their different characteristics (e.g. - Page 24 www.wascomat.com...
