OPERATING & MAINTENANCE MANUAL

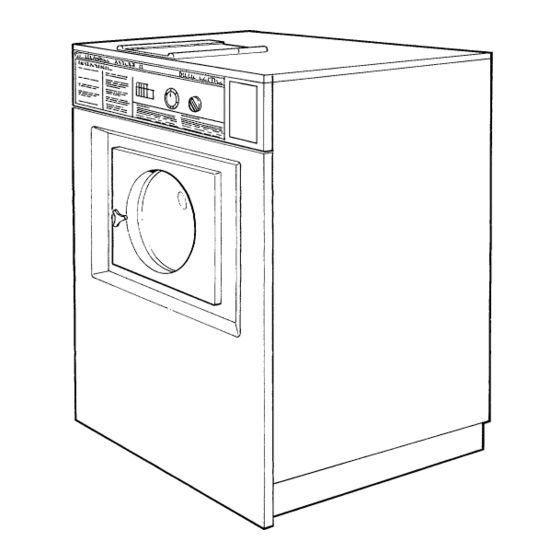

WASCOMAT JUNIOR W 75
WASCOMAT SUPER JUNIOR W 105
WASCOMAT SENIOR W 125
WASCOMAT GIANT W 185
WARNING: ALL OPERATING AND MAINTENANCE PROCEDURES SHOWN ON THE NEXT
PAGE OF THIS MANUAL MUST BE FOLLOWED DAILY FOR PROPER OPERATION OF
YOUR WASCOMAT MACHINE.
PLEASE ENTER THE FOLLOWING INFORMATION AS IT APPEARS ON THE MACHINE(S)
DATA PLATE(S).
MACHINE TYPE OR MODEL
MACHINE SERIAL NUMBER(S)
ELECTRICAL CHARACTERISTICS: ________ VOLTS, _______ PHASE, _______ HZ.
MAKE CERTAIN TO KEEP THIS MANUAL IN A SECURE PLACE FOR FUTURE
REFERENCE.
471 1562-75/04
00.23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JUNIOR W 75 and is the answer not in the manual?

Questions and answers

Related Manuals for Wascomat JUNIOR W 75

Summary of Contents for Wascomat JUNIOR W 75

  • Page 1 OPERATING & MAINTENANCE MANUAL WASCOMAT JUNIOR W 75 WASCOMAT SUPER JUNIOR W 105 WASCOMAT SENIOR W 125 WASCOMAT GIANT W 185 471 1562-75/04 00.23 WARNING: ALL OPERATING AND MAINTENANCE PROCEDURES SHOWN ON THE NEXT PAGE OF THIS MANUAL MUST BE FOLLOWED DAILY FOR PROPER OPERATION OF YOUR WASCOMAT MACHINE.
  • Page 3 OPERATING & MAINTENANCE MANUAL WASCOMAT JUNIOR W 75 WASCOMAT SUPER JUNIOR W 105 WASCOMAT SENIOR W 125 WASCOMAT GIANT W 185 WARNING: ALL OPERATING AND MAINTENANCE PROCEDURES SHOWN ON THE NEXT PAGE OF THIS MANUAL MUST BE FOLLOWED DAILY FOR PROPER OPERATION OF YOUR WASCOMAT MACHINE.
  • Page 4 Be sure to keep the machine(s) in proper working order: Follow all maintenance and safety procedures. Further information regarding machine safety, service and parts can be obtained from your dealer or from Wascomat through its Teletech Service Hotline - 516/371- 0700.
  • Page 5 To remove the top panel on models on which it is secured by one or two keylocks, use the keys originally shipped in the drum package. Be certain to relock after remounting the top panel. MANUFACTURED BY WASCATOR DISTRIBUTED BY WASCOMAT INWOOD, NEW YORK, USA 471 7662-02 LOCATED ON THE DOOR: WARNING !

  • Page 7: Table Of Contents

    Wascomat Junior W 75 • Wascomat Super Junior W 105 Wascomat Senior W 125 • Wascomat Giant W 185 Contents Introduction ..............1 Technical data ..............2 Installation ................ 7 Safety rules ..............14 Operating instructions ............ 15 Wash programs .............. 16 Mechanical and electrical design ........

  • Page 8: Introduction

    This manual contains a technical description of the Wascomat W75, W105, W125 and W185 model machines and instructions for their installation, operation and maintenance. Together with the wiring diagram which accompanies each individual machine it should be kept in a safe place for easy reference.

  • Page 9: Technical Data

    Technical data Technical data Wascomat Junior W75 Dry load capacity up to 7.5 kg 18 lbs Overall dimensions Width 660 mm 26 in Depth (at the top) 593 mm 23 3/8 in Height 1050 mm 41 5/16 in Inner drum...
  • Page 10 Technical data Technical data Wascomat Super Junior W105 Dry load capacity up to 11.5 kg 25 lbs Overall dimensions Width 660 mm 26 in Depth (at the top) 710 mm 27 5/16 in Height 1135 mm 44 11/16 in Inner drum...
  • Page 11 Technical data Technical data Wascomat Senior W125 Dry load capacity up to 16 kg 35 lbs Overall dimensions Width 745 mm 29 5/16 in Depth (at the top) 915 mm 36 in Height 1196 mm 47 1/16 in Inner drum...
  • Page 12 Technical data Technical data Wascomat Giant W 185 Dry load capacity up to 23 kg 50 lbs Overall dimensions Width 827 mm 32 9/16 in Depth (at the top) 960 mm 37 13/16 in Height 1315 mm 51 3/4 in...
  • Page 13 Technical data Outline and dimensions Electrical cable connection 3210 A 1 Cold water 2 Hot water 3 Hot water (W185) 4 Drain outlet W105 W125 W185 inches inches inches inches A 1050 41 5/16 1135 44 11/16 1196 47 1/16 1315 51 3/4 17 3/16...

  • Page 14: Installation

    A template showing the size of the foundation and positioning of the foun- dation bolts can be provided by Wascomat. For installation on an existing concrete floor, the floor must be at least 8" thick and of good quality.
  • Page 15 Installation Mechanical installation • Place wide steel shims on the concrete foun- Fig. dation over the bolts. • Lift the machine and lower it in position. Never use the door or the door handle to lift or lower the machine. •...
  • Page 16 Installation Electrical installation All electrical installations are to be carried out by licenced personnel. Although the machines are equipped with thermal overloads in the motor windings a Fig. separate three-phase common-trip circuit breaker must be installed for all three-phase machines. For proper overcurrent protection, check the data plate at the rear of the machine.
  • Page 17 Installation Water connections NOTE All plumbing must conform to national and local plumbing codes. Incoming water lines should not require non- return or back-suction valves, as the machine is Fig. already equipped with backflow prevention. Shut- off valves must be provided on all incoming water lines.
  • Page 18 1/8"- 1/4" per foot towards the main drain. Note: 1833 To simplify installation, Wascomat has made available the following hose kits: For W75, W105 and W125 Partno. 002008 For W185 Partno. 002009 These kits contain inlet hoses, drain hose, hose clamps and washers.
  • Page 19 IMPORTANT: Door safety interlock must be checked 1195 daily in accordance with above procedure. WARNING: Before servicing Wascomat equipment, disconnect electrical power. IMPORTANT: Le verrouillage de sûreté de la porte doit être vérifié tous les jours selon la procédure ci-dessus.
  • Page 20 In the machine cylinder, you will find the warranty registration card, a copy of the warranty policy and other pertinent materia. The warranty card should be completed and sent to Wascomat. All other items should be placed in a safe place for future reference.

  • Page 21: Safety Rules

    Safety rules Safety rules • This machine is designed for water washing only. • All installation operations are to be carried out by qualified personnel. Licensed personnel are necessary for all electric power wiring. • The interlock of the door must be checked daily for proper operation and must not be bypassed.

  • Page 22: Operating Instructions

    Operating instructions Procedure for use Preparation Sort the laundry according to the washing instructions on garment tags. Empty pockets and close zippers. Open door, put laundry in the machine and close door. Start Turn the control knob to the desired wash pro- Fig.

  • Page 23: Wash Programs

    Wash Programs Wash Programs In the figure below is an overview of the four wash programs. Fig. On the following pages you will find a more detailed description of the programs. WARM COLD DELICATE Time Temp. Water Time Temp. Water Time Temp.
  • Page 24 Wash Programs Wash program, Hot After the machine has started and the door Fig. automatically locked, the drain valve will close and the hot and cold water valves will open to fill the machine with mixed hot and cold water to the level determined by the level control.
  • Page 25 Wash Programs Wash Program, Warm On starting the machine, the door will automatic- Fig. ally be locked, and the pre-wash carried out as previously described, whereafter the main wash is started. As the main wash is started, the drain valve WARM closes, detergent is admitted and mixed hot and Time Temp.
  • Page 26 Wash Programs Wash Program, Cold On starting the machine, the door will automatic- Fig. ally be locked, the drain valve closed, the cold water valve opened and the pre-wash carried out as previously described, whereafter the main wash is started. COLD As the main wash is started, the drain valve Time Temp.
  • Page 27 Wash Programs Wash Program, Delicate On starting the machine, the door will automatic- Fig. ally be locked, the drain valve closed, the hot and cold water valves opened and the pre-wash will be carried out as previously described, where- after the main wash is started. DELICATE As the main wash is started, the drain valve Time Temp.
  • Page 28 To change the wash programs To change the wash programs You can change the following parameters in the Fig. wash programs by adding jumper wires to the terminal block at the rear of the machine. - no prewash - only two rinses Water level during prewash/mainwash Fig.
  • Page 29 Mechanical and electrical design General The door, cycle indicator, coin meter or manual start switches, indicator light and program-selection knob are located at the front of the machine. All control and indicating components, i.e. relays, level control, cycle timer, etc are assembled under the top cover, easily accessible at the top of the machine for simplified servicing.
  • Page 30 Mechanical and electrical design Machine construction Outer shell The outer shell is made of heavy gauge surgical steel and is attached to a heavy Fig. duty, rigid head casting (back gable). The whole assembly is mounted on a heavy gauge fabricated steel base, galvanized for long life and corrosion resistance.

  • Page 31: Mechanical And Electrical Design

    A grease seal is mounted to prevent escape of grease. The bearings are permanently lubricated and need no maintenance. Wascomat's design transfers the weight of the loaded wash cylinder to the largest possible surface area away from the bearings, for longest machine life.
  • Page 32 Mechanical and electrical design Door NOTE The door consists of: a door skirt (1), door (2), Fig. Do not attempt to repair a faulty glass (3) and gasket (4). The frame skirt and door lock. The individual door frame are both made of enameled alumi- nium.
  • Page 33 Mechanical and electrical design Control unit The wash cycle timer (1) and rotary program selector switch (2) are Fig. mounted just behind the control panel. The relays (3) and level controls (4) are located at the top of the machine, easily accessible for service, as are the motor capacitors (5) on 1-phase models.
  • Page 34 Mechanical and electrical design Relays The W-series models employ either two Fig. (W75, 105) or three (W125, 185) relays to energize the windings of the wash/extract motor. The relays control: • The reversing action of the motor at wash speed. •...
  • Page 35 The trip level for any one pressure switch can be changed only within narrow limits because each trip range requires a different set of springs. Call Wascomat's Service Department at 516-371-0700 before attempting to adjust the level control. Water level As a guide for checking the level control for proper functioning, the normal level should be approximately at the bottom of the door glass.
  • Page 36 Mechanical and electrical design Drive motor Description in general The motor is mounted on an axle with rubber Fig. dampeners. The V-belt is tightened by turning the motor on Fig. the axle and locking it in place using the tensioner on the rear side of the motor. The motor and tensioner have vibration and noise dampening rubber suspensions.
  • Page 37 Mechanical and electrical design Principal wiring and points of measuring on single-phase motors. The numbers at the connection points refer to the terminal num- Fig. bers at the motor connector plug. The numbers in circles indicate points of ampere measurements. 130µF 200µF 1216...
  • Page 38 Mechanical and electrical design W125 208-240 V 60 Hz single-phase 1700...
  • Page 39 Mechanical and electrical design 1791...
  • Page 40 Mechanical and electrical design Motor connections 1, 2 and 3: wash speed (18-pole winding). Fig. 4, 5 and 6: extract speed (2-pole winding) 7 and 9: motor overload protector. Motor overload protector The motor is equipped with two self-resetting, Blue White thermal overload protectors, situated one in each Black...
  • Page 41 Mechanical and electrical design Inlet valves for W75, W105, W125 and detergent valve for W185 Construction Each valve has a single-inlet with either one, two Fig. or three outlets, each with its own solenoid coil. The body is made of heat-resistant polyamid plastic and the solenoids encased in water-tight plastic.

  • Page 42: Maintenance

    Mechanical and electrical design Maintenance instructions Limescale can block the hole in the valve diaph- ragm and interfere with the function of the valve. It is therefore advisable to dismantle and clean Fig. the valve at certain regular intervals. The fre- quency depends on operating conditions and the level of contamination in the water.
  • Page 43 Mechanical and electrical design Inlet valve for W185 from S/N 9508/011935 The water inlets have brass bodies with larger Fig. cross section of the outlet in order to achieve a shorter filling time for the machine. Construction Fig. The valve housing is made of pressed brass. The spring-loaded plunger is made of stainless steel and located at its lower end.
  • Page 44 Mechanical and electrical design Inlet valve for W185 up to S/N 9508/011934 The water inlets have brass bodies with larger Fig. cross section of the outlet in order to achieve a shorter filling time for the machine. Construction The valve housing is made of pressed brass. The spring-loaded plunger is made of stain-less steel and located at its lower end is a rubber gasket for the pilot valve.
  • Page 45 Mechanical and electrical design Drain valve Description The drain valve is operated by using the pressure Fig. in the cold water intake. A tube (1) is connected between the cold water intake and a solenoid valve (2). When the solenoid valve is activated, it opens and allows water to flow into the feeder tube (3).The water presses up a piston (4), which uses the pressure lid (5) to close the drain valve...
  • Page 46 Mechanical and electrical design Soap supply box The three-compartment soap supply box is located at the top of the Fig. machine. Viewed from the front, the compartments are marked with figures 1, 2 and 3 and are used as follows: Compartment 1 This compartment is used for adding powder detergent at the beginning of the Prewash cycle.
  • Page 47 Maintenance Maintenance Preventive maintenance has been reduced to a minimum by the careful design of reliable compo- nents and material. However, the following measures should be taken at regular intervals and in proportion to the hours of service. IMPORTANT! Make certain that all electrical power to the machine is shut off before removing top or rear panels.
  • Page 48 Trouble shooting The purpose of the trouble-shooting guide is to facilitate the location and correction of the most common machine problems. Before the top panel is removed, power to the machine must be switched off at the main source or at the separete circuit breaker. At each trouble-shooting attempt, the plug in connectors on the control panel should be moved in and out in order to eliminate improper contact due to faulty connection.
  • Page 49 Trouble shooting Trouble shooting If the machine does not start A Check the circuit breaker in the electrical Fig. power line to the machine. B Check the door safety switch and door lock. C Check the glass cartridge fuses. D Check for loose wires at the incoming power terminal block.
  • Page 50 Trouble shooting If the machine does not extract Fig. A Check the extract relay and relay coil for proper operation. If the motor does not operate at wash speed A Check the wash relay(s). Fig. B Check the normally-closed contact of the extract relay.
  • Page 51 Trouble shooting If the machine runs slowly on wash speed or there is a slapping or thumping noise. Fig. A Replace the V-belts If a metallic noise can be heard at rear of machine Fig. A Tighten the pulley on the motor shaft If the door is leaking A Check the door gasket.
  • Page 52 Trouble shooting If there is a leaking around the glass Fig. A Replace the door gasket if worn. If water does not enter the machine. A Check the valve coils on the inlet valves. Fig. B Check wires leading to the valve coils. C Be sure manual shut-off valves are in open position.
  • Page 53 Trouble shooting If water continues to fill without stopping. A Check the hose attached to the level control Fig. unit. B Check inlet valves for dirt underneath the valve diaphragm. To isolate the cause, shut off power. If water continues to flow, inlet valves have foreign material in them and should be thoroughly cleaned.
  • Page 54 Trouble shooting If the machine vibrates excessively. Tighten the mounting bolts. Fig. Check that the shipping security has been removed. Refer to Function control on page 1140...
