SNOWJOE SUNJOE GTS4002C Operator's Manual page 21

Operation
Starting and Stopping

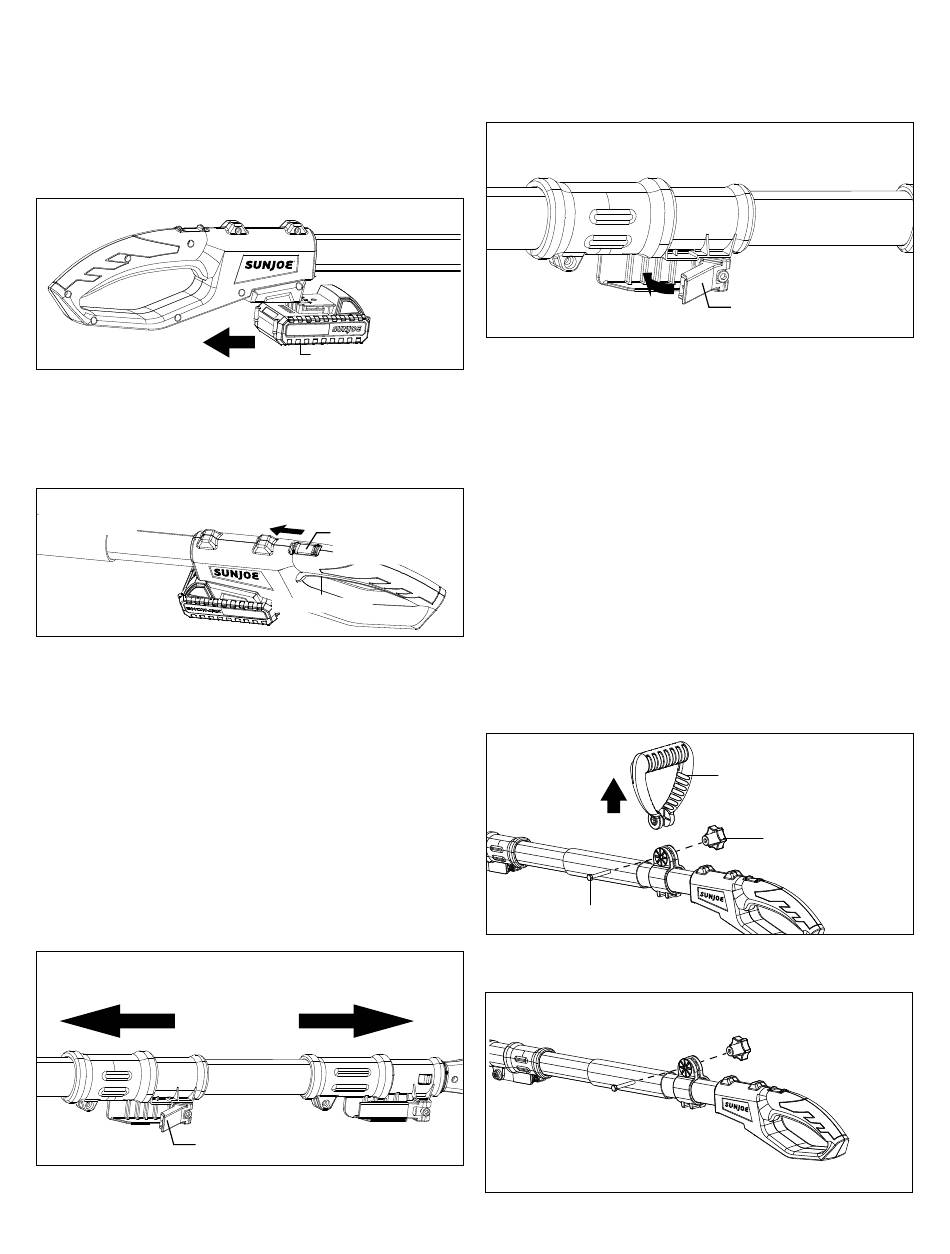

1. Slide the battery into the battery compartment until it clicks
to lock into position (Fig. 36).
Fig. 36
2. To turn the grass trimmer + hedger ON, push and hold the
safety lock switch (located on the handle) forward with
your thumb and then squeeze the On/Off switch with your
fingers. Once the tool is running, you can release the safety
lock switch (Fig. 37).
Fig. 37
3. To turn the tool OFF, release the On/Off switch (Fig. 37).
Adjusting the Telescoping Pole
This machine is equipped with a telescoping pole which can
telescope from 3.7 ft (1.1 m) to 5.3 ft (1.6 m). To adjust the
telescoping pole, follow the instructions below.
1. Disconnect the grass trimmer + edger from the power
supply by removing the battery from the compartment.
2. Unclip the telescoping lock to release the pole. Extend the
pole to the desired length (Fig. 38).
NOTE: Push poles toward each other to shorten the pole or
pull them away from each other to lengthen the pole. Only
extend the pole to the minimum length required to reach the
grass.
Fig. 38
Pull
Telescoping lock
Battery
Safety lock
switch
On/Off switch
Pull
3. Lock the pole in position by closing the telescoping lock
(Fig. 39), and ensure that the pole is secured.
Fig. 39
m
WARNING!
Failure to lock the telescoping lock as
directed could result in personal injury.
Adjusting the Auxiliary Handle
The grass trimmer + edger is equipped with an auxiliary handle
that can be adjusted and removed. Follow the instruction below
to operate the auxiliary handle.
m
WARNING!
Make sure the knob, bolt, and the screws are
fixed into place after adjusting. Failure to lock any of them as
directed could result in personal injury or property damage.
To Remove the Auxiliary Handle
1. Disconnect the grass trimmer + edger from the power
supply by removing the battery from the compartment.
2. Screw the auxiliary handle lock knob and remove it with the
bolt, then the auxiliary handle can be pulled out
(Fig. 40).
Fig. 40
Bolt
3. Re-assemble the auxiliary handle lock knob and the bolt on
(Fig. 41).
Fig. 41
21
Telescoping lock
Auxiliary handle
Auxiliary handle
lock knob
