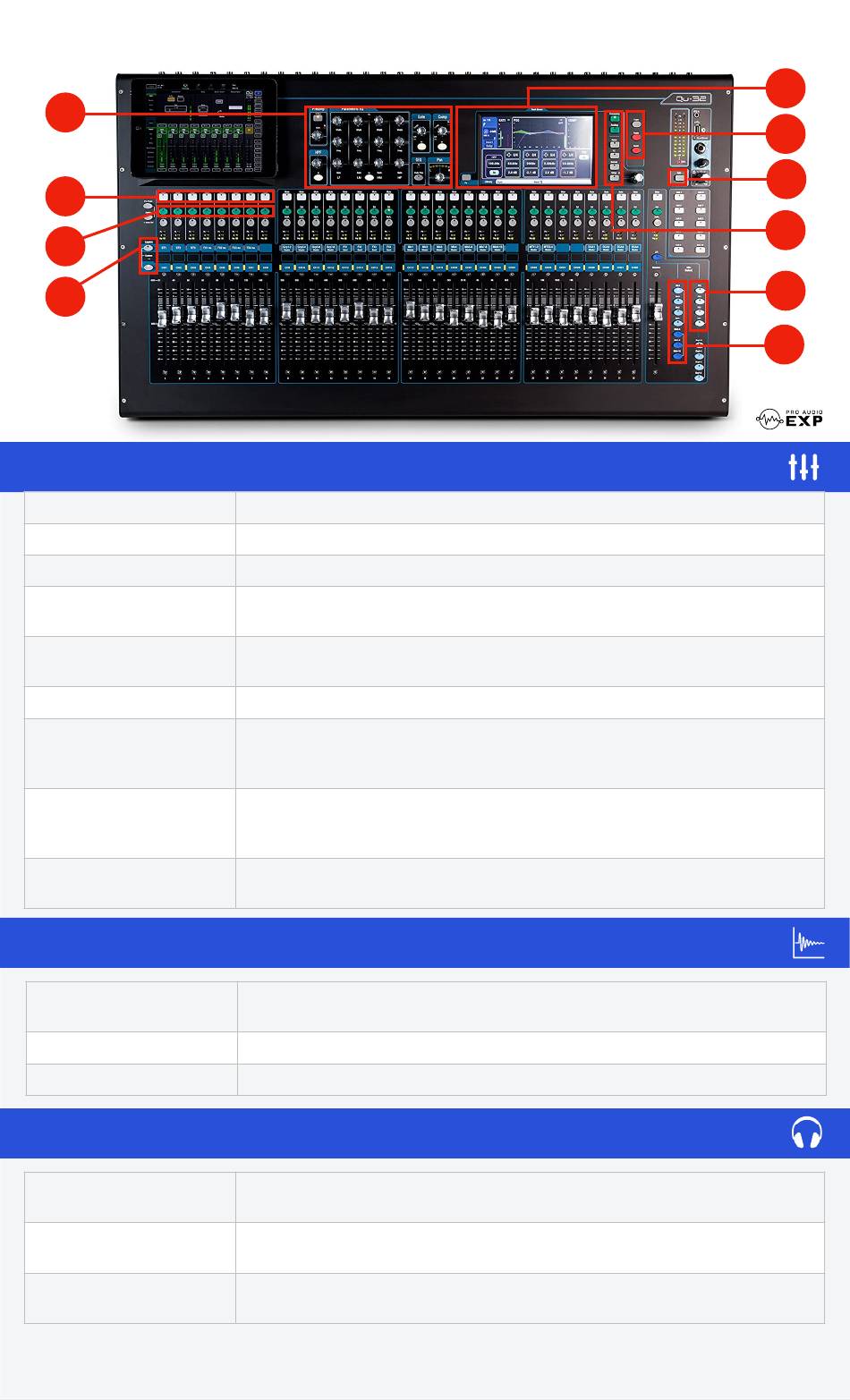

ALLEN & HEATH QU Series Cheat Sheet

ALLEN & HEATH QU SERIES
A
B
C
D
MIXING
SELECT SIGNAL SOURCE
ADJUST INPUT LEVELS
NAME A CHANNEL
ADD GATE, COMP or EQ
USING PRESETS
MUTE A CHANNEL
SET A MUTE GROUP
SET UP DCAs
COPY & PASTE
EFFECTS
SELECTING EFFECTS
ADDING EFFECTS
CHECKING EFFECT RETURNS
MONITORS
MONITOR SEND LEVELS
"ME" PERSONAL MIXERS
TALKBACK FUNCTION
Select CHANNEL C, press PROCESSING H. Press Fn
Select CHANNEL C, adjust PREAMP GAIN knob A.
Select CHANNEL C, press PROCESSING H. Press top left hand corner of screen for name.
Select CHANNEL C, press PROCESSING H. Then press GATE, PEQ or COMP
and adjust parameters to taste either on screen or dedicated KNOBS & BUTTONS A.
Select CHANNEL C, press PROCESSING H. Then WHILE in GATE, PEQ or COMP, press Fn
(Library) E, then select the Preset and scope you'll be loading (Effect/Channel), then RECALL.
Press MUTE B on any channel you wish to mute.
Select CHANNEL C, then press ROUTING H. Press MUTE/DCA GROUP ASSIGN and Fn
(MUTE/DCA) E. Press MUTE GROUP ASSIGN, select the Mute Group you want to work on,
then assign the channels you want to include in that group.
Select CHANNEL C, then press ROUTING H. Press MUTE/DCA GROUP ASSIGN and Fn
(MUTE/DCA) E. Press DCA GROUP ASSIGN, select the DCA Group you want to work on,
then assign the channels you want to include in that DCA.
Hold down COPY F and press SELECT
Then hold down PASTE F
Press the FX button I. Select any one of the 4 Effects Slots on the left hand side of the
screen. Adjust Parameters to taste and/or use Fn (LIBRARY)
Select FX 1-4 I, then bring up individual FADERS to add the selected effect to that Channel.
Select UPPER LAYER D. Confirm the FX Sends 1-4 and FX Returns are at 0dB.
Select MIX 1-10 J, then bring up individual FADERS to add those channels to that selected
Monitor Mix.
Connect "ME" Personal Mixer to your Qu via network. Follow instructions that came with
your Personal Mixer to assign a Single Source, Stereo Pair or a Group to each button.
Select SETUP H, then AUDIO>TALKBACK on screen. Set which MIXs you wish to talk to.
Press TALK G to talk to a Mix.
- CHEAT SHEET
C on the channel you want to copy.
and press SELECT C on the channel you want to paste to.
E for Signal Source.
E
E to load presets.
E
F
G
H
I
J
on screen
