Technician's instructions
KaVo Lumina

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lumina and is the answer not in the manual?

Questions and answers

Related Manuals for KaVo Lumina

Summary of Contents for KaVo Lumina

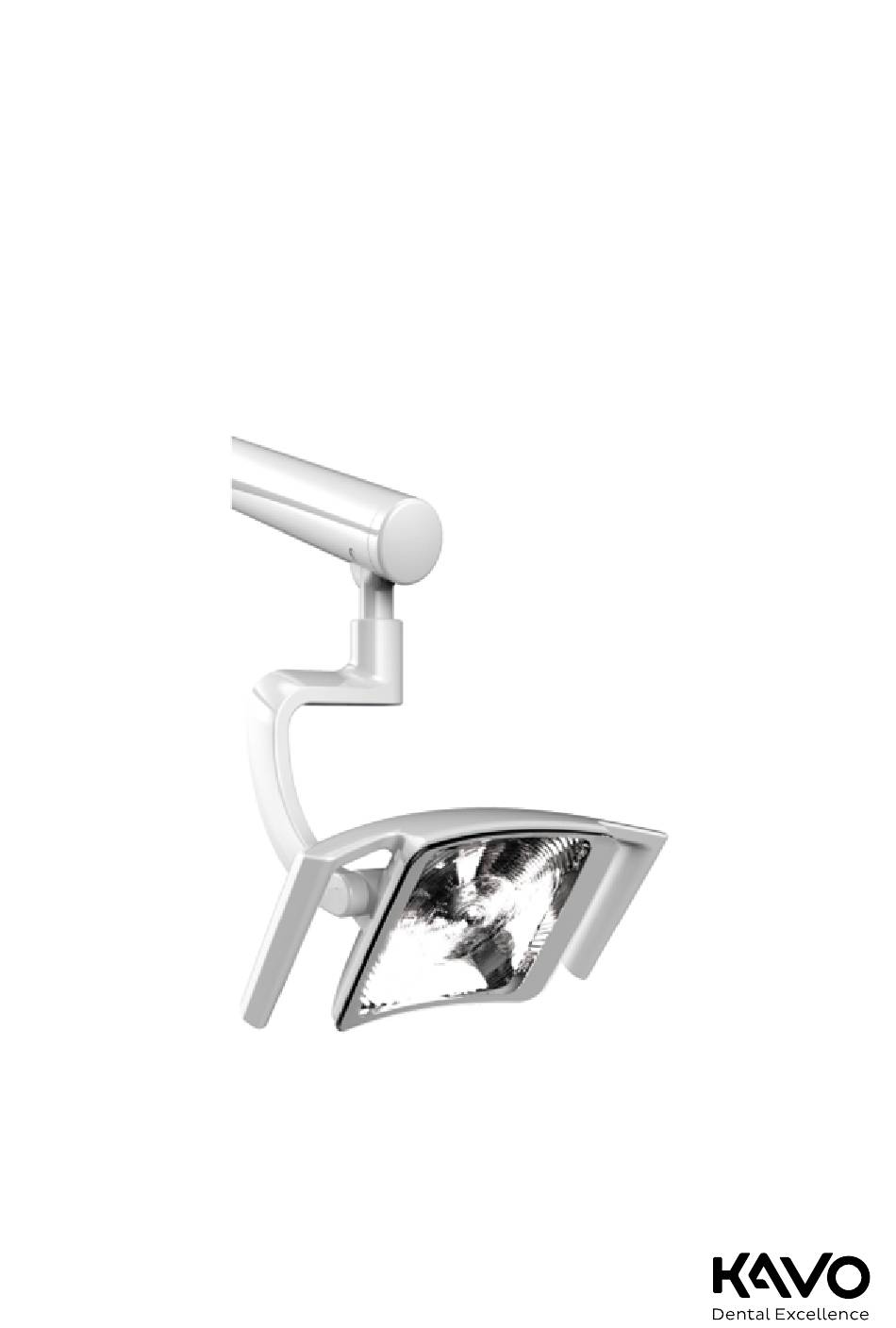

  • Page 1 Technician's instructions KaVo Lumina...
  • Page 2 Distributed by: Manufacturer: KaVo Dental GmbH KaVo Dental GmbH Bismarckring 39 Bismarckring 39 88400 Biberach 88400 Biberach Germany Germany Phone +49 7351 56-0 www.kavo.com Fax +49 7351 56-1488...

  • Page 3: Table Of Contents

    3.2 Technical specifications and requirements................ 10 4 Function description ......................12 4.1 KaVo Lumina on the ESTETICA E70 / E80 Vision, KaVo uniQa, KaVo amiQa, Primus 1058 Life, ESTETICA E50 Life, ESTETICA E30 and DSEclinical E50 Life........4.2 KaVo Lumina for ceiling mounting................... 12 4.3 KaVo Lumina function description ...................
  • Page 4 Technician's instructions KaVo Lumina Table of contents 11.2.5 Installing the protective panel................42 12Safety check - Test instructions..................43 12.1 Mounting the device ...................... 43 12.2 Ceiling mounting......................43 12.2.1 Introduction ....................43 12.2.2 Instructions for the safety check ................ 46 12.3 Test protocol for the safety check ...................

  • Page 5: User Instructions

    Please refer to the serial number of the product in all inquiries! For further in- formation, please visit: www.kavo.com Target group The present document is for service staff who have been trained by KaVo for the product. Hazard levels The warning and safety notes in this document must be observed to prevent personal injury and material damage.
  • Page 6 Technician's instructions KaVo Lumina 1 User instructions HAZARD In cases which – if not prevented – directly lead to death or severe injury. WARNING In cases which – if not prevented – can lead to death or severe injury. CAUTION In cases which –...

  • Page 7: Safety

    Technician's instructions KaVo Lumina 2 Safety | 2.1 Electrical shock 2 Safety NOTE All serious events occurring in relation to the product must be reported to the manufacturer and the competent authority of the member state, in which the user and/or patient resides.

  • Page 8: Product Description

    Technician's instructions KaVo Lumina 3 Product description | 3 Product description NOTE The configuration can be changed as needed and does not have to be as shown in the figure. ① Swivel arm ② Spring arm with gas-pressure spring ③ Light head with gesture sensor ④...

  • Page 9: Dimensions And Swing Ranges

    Technician's instructions KaVo Lumina 3 Product description | 3.1 Dimensions and swing ranges 3.1 Dimensions and swing ranges CAUTION Collision with people or furnishings. Collisions could be caused by the required degrees of freedom and the large swivel range. 4 Always move or swivel the operating light with great care.

  • Page 10: Technical Specifications And Requirements

    Technician's instructions KaVo Lumina 3 Product description | 3.2 Technical specifications and requirements 3.2 Technical specifications and requirements Photobiological safety (IEC 62471) Risk group 1 (low risk) The products are safe under the majority of methods of application, except for the case of prolonged exposition with potentially direct eye exposure (max.

  • Page 11: Transportation And Storage Conditions

    Technician's instructions KaVo Lumina 3 Product description | 3.2 Technical specifications and requirements Transportation and storage conditions Ambient temperature -20 to +55 C / -4 to +131°F Humidity limitation 5% to 95% non-condensing Atmospheric pressure limitation 700 hPa to 1060 hPa (10 psi to 15 psi)

  • Page 12: Function Description

    Technician's instructions KaVo Lumina 4 Function description | 4.1 KaVo Lumina on the ESTETICA E70 / E80 Vision, KaVo uniQa, KaVo amiQa, Primus 1058 Life, ESTETICA E50 Life, ESTETICA E30 and DSEclinical E50 Life 4 Function description 4.1 KaVo Lumina on the ESTETICA E70 / E80 Vision,...
  • Page 13 Technician's instructions KaVo Lumina 4 Function description | 4.3 KaVo Lumina function description The PCBA BLE module ③ is a Bluetooth module that can be used for software updates, for example. The BLE module is optional and is only installed in oper- ating lights that are not connected to the CAN bus of the treatment centre (e.g.

  • Page 14: Electrical Controls

    ▪ Firmware update via CAN bus of the treatment centre or Bluetooth adapter on X3 if the KaVo Lumina is not operated on the CAN bus of a treatment centre. ▪ The LEDs for illumination are situated on the PCBA light 4000 and each con- sist of one warm white and one cool white LED cluster.

  • Page 15: Pcba Ac/Dc (X12)

    ▪ The Bluetooth module can be used to transfer software updates to the PCBA light or to open a KaVo Lumina service menu. ▪ It is only optionally installed if the KaVo Lumina is not operated on the CAN bus of the treatment centre (e.g. ceiling light).

  • Page 16: Ceiling Adapter - Switching Power Supply And Pcba 15W Limiter

    Technician's instructions KaVo Lumina 5 Electrical controls | 5.1 Description of circuit board Plug Plug Description Connection to the PCBA light 4000 (X3) 5.1.4 Ceiling adapter – switching power supply and PCBA 15W limiter ① Mains input clamp with fuse T2.5H ④ PE terminal ②...
  • Page 17 Technician's instructions KaVo Lumina 5 Electrical controls | 5.1 Description of circuit board PCBA 15W limiter LEDs Plug Colour Description V2, OUT: green Output voltage display V1, FLT: Error message (e.g. incorrect polarity) Plug Plug Description Input 36V DC from switching power supply Output for KaVo Lumina The PCBA 15 W limiter also has a power limit of 15 watts.

  • Page 18: Wiring Diagram

    Technician's instructions KaVo Lumina 5 Electrical controls | 5.2 Wiring diagram 5.2 Wiring diagram 5.2.1 KaVo Lumina – Mounting to treatment centre 18 / 56...

  • Page 19: Ceiling Mounting Kit With Switching Power Supply Unit

    Technician's instructions KaVo Lumina 5 Electrical controls | 5.2 Wiring diagram 5.2.2 Ceiling mounting kit with switching power supply unit 19 / 56...

  • Page 20: Assembly And Disassembly Of The Panels

    Risk of glare due to increased scattered light or product damage (deterioration of the illumination field). 4 Only touch the protective panel, collimator and PCBA light while wearing KaVo-approved lint-free cloth gloves or powder-free latex gloves. CAUTION Electrostatic discharge. Destroys electronic components.

  • Page 21: Disassembling The Protective Panel

    Technician's instructions KaVo Lumina 6 Assembly and disassembly of the panels | 6.1 Disassembling the protective panel 4 Release protective panel ⑨ at the bottom and pull it forward. Also refer to: 6.1 Disassembling the protective panel, Page 21 6.1 Disassembling the protective panel CAUTION Hot light.
  • Page 22 Technician's instructions KaVo Lumina 6 Assembly and disassembly of the panels | 6.1 Disassembling the protective panel 4 Carefully unlatch the protective panel at the bottom edge of the light head using a flat slot screwdriver at the slots and take it off towards the front.

  • Page 23: Mechanical Settings

    Technician's instructions KaVo Lumina 7 Mechanical settings | 7.1 Adjusting the swinging arm brake 7 Mechanical settings 7.1 Adjusting the swinging arm brake NOTE Adjust the brakes on the light mounting post/swivel arm and swivel arm/ spring arm slightly more than the brake on the 2D/3D stirrup.

  • Page 24: Adjusting The Spring Arm Brakes

    Technician's instructions KaVo Lumina 7 Mechanical settings | 7.2 Adjusting the spring arm brakes 7.2 Adjusting the spring arm brakes 7.2.1 Spring arm – brake rotation NOTE Use the brake to set the smooth running of the spring arm rotation in the swivel arm.

  • Page 25: Setting The Rotary Motion

    Technician's instructions KaVo Lumina 7 Mechanical settings | 7.3 Fine adjustment positioning of the light field 7.3.1 Setting the rotary motion NOTE The covers ① must be removed to set the rotary motion and the 3D joint movement. The covers ① are fastened with a snap lock and can be removed without dental tools.

  • Page 26: Fine Adjustment

    Technician's instructions KaVo Lumina 7 Mechanical settings | 7.3 Fine adjustment positioning of the light field Set-up of the light head inclination ① Set screw / threaded pin M5x5 ② Pressure spring ③ Brake ring ④ Socket ⑤ Cellasto ring ⑥...

  • Page 27: Firmware Update

    4 Do not remove the USB stick or the SD card during the firmware update. NOTE If the KaVo Lumina is connected to the CAN bus of a treatment centre, the firmware is updated via the treatment centre. For ceiling mounting, the firmware can be updated via the Bluetooth module.

  • Page 28: Update For Estetica E50 Life / Primus 1058 Life

    Technician's instructions KaVo Lumina 8 Firmware update | 8.2 Update for ESTETICA E50 Life / Primus 1058 Life 8.2 Update for ESTETICA E50 Life / Primus 1058 Life ① SD card ② green LED ③ yellow LED 4 Turn the device off.

  • Page 29: Update For Estetica E70 / E80 Vision And Kavo Uniqa / Amiqa

    Technician's instructions KaVo Lumina 8 Firmware update | 8.3 Update for ESTETICA E70 / E80 Vision and KaVo uniQa / amiQa 8.3 Update for ESTETICA E70 / E80 Vision and KaVo uniQa / amiQa 4 Prepare the USB stick with the firmware update for KaVo uniQa / amiQa or ESTETICA E70 / E80 Vision.

  • Page 30: Update For Estetica E30

    8 Firmware update | 8.4 Update for ESTETICA E30 8.4 Update for ESTETICA E30 NOTE The current updated firmware can be downloaded from KaVo Extranet and KaVo TIP at www.extranet.kavo.com and saved on an SD card. 4 Unpack the downloaded zip file.
  • Page 31 Technician's instructions KaVo Lumina 8 Firmware update | 8.4 Update for ESTETICA E30 4 Turn the device off. 4 Remove cover ③. Removing the junction box cover 4 Insert the SD card in the card-slot of the unit control ②.

  • Page 32: Firmware Update Via Bluetooth

    Technician's instructions KaVo Lumina 8 Firmware update | 8.5 Firmware update via Bluetooth 8.5 Firmware update via Bluetooth NOTE The PCBA BLE module must be plugged into the PCBA light 4000 for the firm- ware update via Bluetooth (also refer to: chapter PCBA BLE module).

  • Page 33: Kavo Lumina Service Mode

    Technician's instructions KaVo Lumina 9 KaVo Lumina service mode 9 KaVo Lumina service mode NOTE The PCBA BLE module must be plugged into the PCBA light 4000 for the ser- vice menu via Bluetooth (also refer to: chapter PCBA BLE module).

  • Page 34: 10Internal Cleaning

    Risk of glare due to increased scattered light or product damage (deterioration of the illumination field). 4 Only touch the protective panel, collimator and PCBA light while wearing KaVo-approved lint-free cloth gloves or powder-free latex gloves. CAUTION Scratching of the protective panel during installation/dismantling.

  • Page 35: 11Troubleshooting

    Technician's instructions KaVo Lumina 11 Troubleshooting | 11 Troubleshooting Malfunction Cause Remedy Nothing works. Main switch is off. 4 Turn on the main switch. 4 Unplug the unit from the mains. Main service fuse inter- rupted the electric cir- 4 For ceiling mounting, check and replace, if cuit.
  • Page 36 Technician's instructions KaVo Lumina 11 Troubleshooting | Malfunction Cause Remedy 4 Activate sensor in the user menu. Sensor does not react or re- Sensor is deactivated in acts too sensitively. the user menu (uniQa / amiQa / E70/80 Vision). Sensor sensitivity not 4 Set the sensor sensitivity in the user suitable.

  • Page 37: Replacing The Gas-Pressure Spring

    Technician's instructions KaVo Lumina 11 Troubleshooting | 11.1 Replacing the gas-pressure spring Malfunction Cause Remedy Error code 432 Degradation of the LEDs ▪ The light continues to work with reduced detected. brightness. Wear/aging of the LEDs. 4 Replace the PCBA light.

  • Page 38: Replacing The Pcba Light

    Risk of glare due to increased scattered light or product damage (deterioration of the illumination field). 4 Only touch the protective panel, collimator and PCBA light while wearing KaVo-approved lint-free cloth gloves or powder-free latex gloves. CAUTION Electrostatic discharge. Destroys electronic components.

  • Page 39: Disassembling The Protective Panel

    Technician's instructions KaVo Lumina 11 Troubleshooting | 11.2 Replacing the PCBA light 11.2.1 Disassembling the protective panel 4 Carefully unlatch the protective panel at the bottom edge of the light head using a flat slot screwdriver at the slots and take it off towards the front.

  • Page 40: Replacing The Pcba Light 4000

    Risk of glare due to increased scattered light or product damage (deterioration of the illumination field). 4 Only touch the protective panel, collimator and PCBA light while wearing KaVo-approved lint-free cloth gloves or powder-free latex gloves. 4 Unscrew two red screws ① with the screwdriver. 4 Remove the holding plate ②.
  • Page 41 Technician's instructions KaVo Lumina 11 Troubleshooting | 11.2 Replacing the PCBA light grau / grey weiß / white 4 Remove PCBA light ① and used heat conducting pad ②. 4 Carefully remove any residual adhesive on the old heat conducting pad from the light head.

  • Page 42: Installing The Collimator

    Technician's instructions KaVo Lumina 11 Troubleshooting | 11.2 Replacing the PCBA light 4 When routing the cables ⑤, the silicone holder ③ and the cable must not stick out at the top. This can interfere with the light cone and create a shadow in the light field.

  • Page 43: 12Safety Check - Test Instructions

    "Scan the light head of the operating light with the probe". 12.2 Ceiling mounting NOTE This chapter describes the safety check performed on the KaVo Lumina for the case of ceiling mounting. 12.2.1 Introduction General notes...
  • Page 44 NOTE KaVo offers a medical device book for keeping an inventory and recording es- sential master data on the medical device. The medical device book is only available in German (mat. no. 0.789.0480).

  • Page 45: Functional Test

    Technician's instructions KaVo Lumina 12 Safety check - Test instructions | 12.2 Ceiling mounting NOTE In ME systems, in which more than one ME device are interconnected via data lines or otherwise, e.g. via electrically conductive attachments or coolant tubes, the earth wire resistance of every single device must be checked.

  • Page 46: Instructions For The Safety Check

    Technician's instructions KaVo Lumina 12 Safety check - Test instructions | 12.2 Ceiling mounting NOTE Comparisons with previous measurements must be carried out if the meas- ured values are lower than the threshold values by more than 10 %. The test intervals should be reduced if a deterioration in values is determined! 12.2.2 Instructions for the safety check...
  • Page 47 NOTE The following measuring aid can be ordered: KaVo measuring cable (mat. no. 0.411.8811) Using the measuring cable ① the unit is disconnected from the mains supply and connection of the treatment centre to the safety tester is enabled. Hence, the customer-provided power supply cord L &...
  • Page 48 4 Remove the plug X2 from the ceiling adapter and plug into the matching plug X2 of the KaVo measuring cable (Mat. no. 0.411.8811). 4 Plug the second plug X2 of the KaVo measuring cable into X2 in the ceiling adapter.
  • Page 49 Technician's instructions KaVo Lumina 12 Safety check - Test instructions | 12.2 Ceiling mounting Connecting the safety tester without the KaVo measuring cable to the ceiling adapter. 4 Switch L + N of the on-site power supply cord to be voltage-free.
  • Page 50 Technician's instructions KaVo Lumina 12 Safety check - Test instructions | 12.2 Ceiling mounting ACPs on the operating light No ACPs need to be connected to the operating light during the measurement with the protective earth conductor (PE), as all relevant parts are connected to the protective earth conductor (PE)before they leave the factory and are thus included in the test.
  • Page 51 Technician's instructions KaVo Lumina 12 Safety check - Test instructions | 12.2 Ceiling mounting Scan the ceiling adapter of the treatment light with the probe 100-240VAC ① Base plate for the ceiling adapter ③ Screw for fastening the power supply board ②...
  • Page 52 Technician's instructions KaVo Lumina 12 Safety check - Test instructions | 12.2 Ceiling mounting Scanning the light head of the operating light with the probe Measuring point for 2D joint: ▪ Remove the cover ① from the spring arm. ▪ Test point for protective earth measurement ②...

  • Page 53: Functional Tests

    4 Name, date and signature of test engineer There is a copy of a test report template at the end of the chapter on Safety Checks. KaVo recommends to use this template. NOTE Following testing, repair or adjustment, it must be verified whether the ME equipment or ME system has been restored to the state that is required for the intended usage before it is employed once again.

  • Page 54: Test Protocol For The Safety Check

    Technician's instructions KaVo Lumina 12 Safety check - Test instructions | 12.3 Test protocol for the safety check NOTE If the safety of the tested ME equipment or ME system has not been established, e.g. the tests have not been completed with positive res-...
