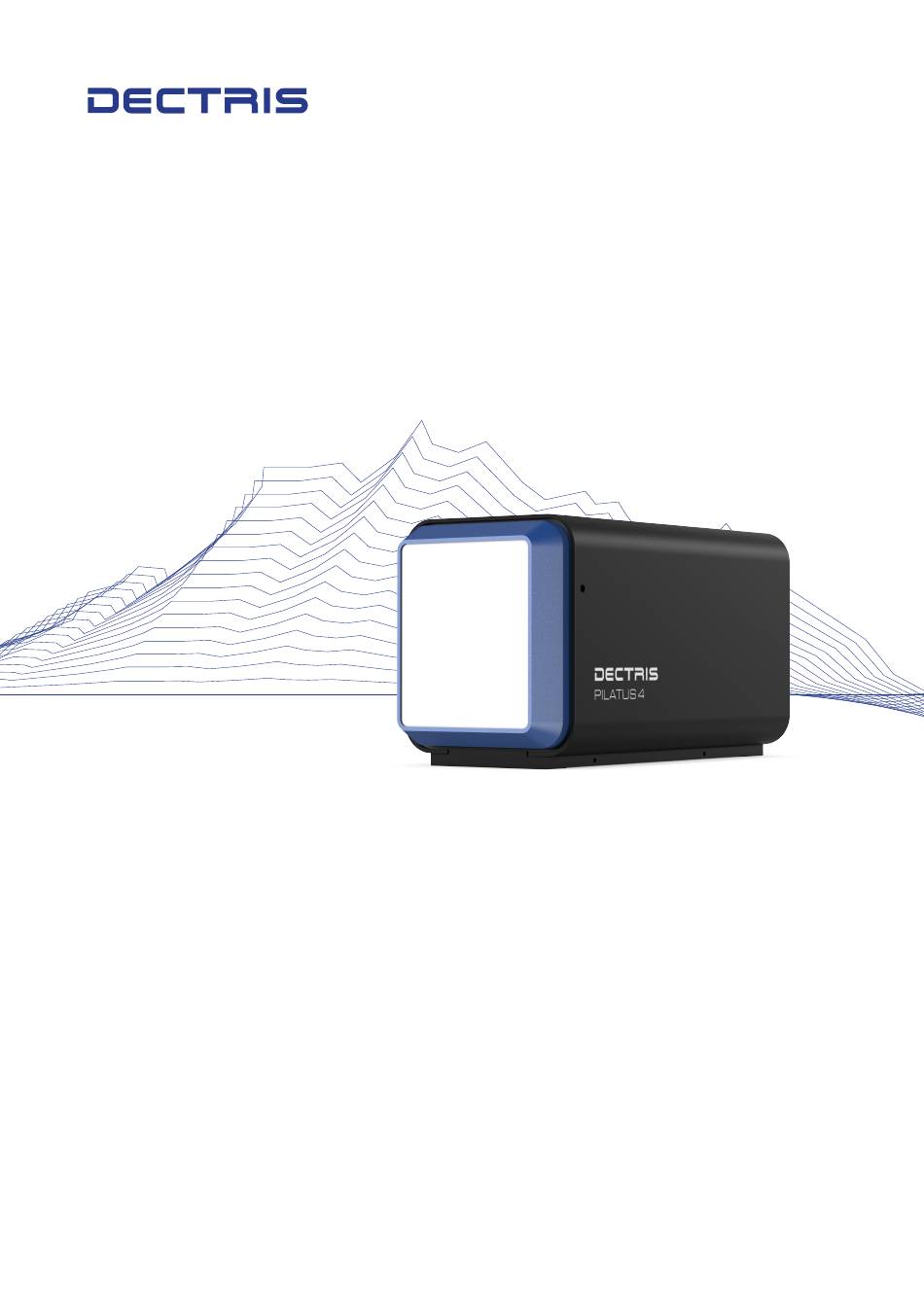

- Page 1 Technical Specifications ® DECTRIS PILATUS 4 R CdTe 260K Document Version v1.0.2 DECTRIS Ltd. 5405 Baden-Daettwil Switzerland www.dectris.com...
- Page 2 Document Version v1.0.2 © Copyright 2025 DECTRIS Ltd.
-
Page 3: Table Of Contents
PILATUS4 R CdTe 260K Detector ........ - Page 4 SAFETY INSTRUCTIONS FOR CdTe SENSORS TROUBLESHOOTING ® DECTRIS PILATUS 4 R CdTe 260K Technical Specifications v1.0.2 ii | 27...
-
Page 5: General Information
1. GENERAL INFORMATION 1.1. Contact and Support Address: DECTRIS Ltd. DECTRIS USA Inc. DECTRIS Japan K.K. Taefernweg 1 1500 Walnut Street, Suite 1630 Mitsuwa Building 1F 5405 Baden-Daettwil Philadelphia, PA 19102 Minamimachi 63, Himeji-shi Switzerland Hyogo 670-0912, Japan Phone: +41 56 500 21 02... -
Page 6: Warranty Information
(in particular information, ® images or materials), unless otherwise indicated. Without the written permission of DECTRIS it is prohibited to integrate the protected contents in this publication into other programs or other websites or to use them by any other means. -
Page 7: Usage Of The Pilatus4 R Cdte 260K
2. USAGE OF THE PILATUS4 R CdTe 260K The PILATUS4 R CdTe 260K hybrid-photon-counting (HPC) detector system has been designed for the detec- tion of X-rays produced by synchrotrons or laboratory sources. It is intended for indoor use only. For other ®... -
Page 8: Technical Specifications
Up to 100 keV with optional calibration for an extended energy range. For single threshold. Using two thresholds halves the frame rate. Using three or four thresholds quarters it. ® DECTRIS PILATUS 4 R CdTe 260K Technical Specifications v1.0.2 4 | 27... -
Page 9: Ratings
Please consult the user documentation of the Mean Well GST160A12 power supply unit for details. Caution Only use the power supply delivered with the PILATUS4 R CdTe 260K. Table 3.3: Power Supply Unit Ratings Power supply unit power input 85 VAC to 264 VAC 47 Hz to 63 Hz 1 A to 1.85 A... -
Page 10: Detector Control Unit
±10 %, 50/60 Hz, 8 A (100 VAC) to 3 A (240 VAC) Dimensions (W x H x D) 270 mm x 393 mm x 436 mm Weight 17.5 kg −1 Typical flow 3 L min ® DECTRIS PILATUS 4 R CdTe 260K Technical Specifications v1.0.2 6 | 27... -
Page 11: Ambient Conditions
However, as the sensors may not prevent damage, temperature and humidity should be monitored to avoid breaching the operation limits. The PILATUS4 R CdTe 260K detector is designed for indoor use only. The ambient conditions shown in table 3.6 must be satisfied. The stated values are for the ambient conditions. -
Page 12: Detector Components And Connectors
3D step files of the PILATUS4 R CdTe 260K detector are available on request. Please contact ® DECTRIS technical support for more information. Figure 4.1: Drawing of the PILATUS4 R CdTe 260K Detector (also printed separately in the user documentation folder) ® DECTRIS PILATUS 4 R CdTe 260K Technical Specifications v1.0.2... -
Page 13: Front Side Of The Detector
Figure 4.2: The PILATUS4 R CdTe 260K Detector with the Cover Removed (front view) ® DECTRIS PILATUS 4 R CdTe 260K Technical Specifications v1.0.2... -
Page 14: Back Side Of The Detector
4.1.3. Back Side of the Detector Figure 4.3: The PILATUS4 R CdTe 260K Detector (back view) ® DECTRIS PILATUS 4 R CdTe 260K Technical Specifications v1.0.2 10 | 27... -
Page 15: Status Leds
10GBASE-LR Single Mode SFP+ optical transceivers. Do not replace the optical transceivers, as proper function of the detector system cannot be guaranteed other- wise. Please contact support@dectris.com if you need replacement transceivers. Caution There must be a 1 x LC/UPC duplex fiber op- tic connector point-to-point connection between detector and detector control unit. -
Page 16: Detector Control Unit
Ethernet cables. The detector control unit has to be connected point-to-point to the detector via 1 x LC/UPC duplex fiber optic ® DECTRIS PILATUS 4 R CdTe 260K Technical Specifications v1.0.2 12 | 27... -
Page 17: Connectors
Interface Name: user1p1 (1 GBase-T) User configurable GbE Network Interface Preconfiguration: DHCP service (Embedded) Interface Name: service (1 GBase-T) Fallback GbE Network Interface Preconfiguration: Static 169.254.254.1 (Netmask 255.255.255.0) ® DECTRIS PILATUS 4 R CdTe 260K Technical Specifications v1.0.2 13 | 27... -
Page 18: Thermal Stabilization Unit
See DELL owner’s manual for further details. 4.3. Thermal Stabilization Unit A thermal stabilization unit is required for the operation of the PILATUS4 R CdTe 260K detector system. The hoses and the detector are equipped with self-sealing quick connect fittings to avoid dripping when con- necting or disconnecting the tubes. - Page 19 Use opaque hoses to avoid the growth of algae. Caution Do not set the temperature of the thermal stabilization unit below the recommended operating temperature. Condensing moisture can develop and damage the detector. ® DECTRIS PILATUS 4 R CdTe 260K Technical Specifications v1.0.2 15 | 27...
-
Page 20: Installing The Detector System Transport Considerations
It is strictly forbidden to add any threads to the detector base plate or to the detector housing. The detector should be mounted using the four internal M6x1 threads as shown in figure 5.1 (indicated with yellow circles). ® DECTRIS PILATUS 4 R CdTe 260K Technical Specifications v1.0.2 16 | 27... -
Page 21: Mounting From Above
Make sure the mounting brackets are mounted and properly tightened using the screws pro- vided. The placement of the screws is indicated with diamonds in figure 5.2. Figure 5.2: Drawing of the PILATUS4 R CdTe 260K Detector Base Plate with Mounting Brackets (bottom view) ®... -
Page 22: Grounding Of The Detector
(see section 3.3). The PILATUS4 R CdTe 260K detector has to be connected to a dry air (or nitrogen) source to avoid humidity and condensation damage when it is outside of the storage box. For information on system connections, refer to the section 4.1.5 and for storage of the detector system refer to the section 7.4. -
Page 23: Fiber Optic Cable Installation
Fiber optic cables are sensitive to dirt on the connectors and excessive bending, squeezing, or pinching of the cables. The PILATUS4 R CdTe 260K is delivered with a 5 m long optical fiber cable. The connection to the detector consists of 1 x LC/UPC duplex fiber optic connector. -
Page 24: Mounting The Detector Control Unit
Contact ® DECTRIS support at support@dectris.com in case the supplied components are not compatible with your setup. Figure 5.4: Horizontal coolant connectors 5.7. Mounting the Detector Control Unit Caution Make sure that the detector control unit has adequate ventilation. -
Page 25: Temperature And Humidity Control
6. TEMPERATURE AND HUMIDITY CONTROL The PILATUS4 R CdTe 260K detector has a combined temperature and humidity sensor. The temperature and humidity control shuts down the detector when the humidity or the temperature of the sensor exceeds the following limits: Table 6.1: Temperature and Humidity Limits... -
Page 26: Operation Procedure
• Turn OFF the detector control unit. • Do not remove the nitrogen/dry air connection. It is a requirement that it is left at the recommended flow rate according to section 5.4. ® DECTRIS PILATUS 4 R CdTe 260K Technical Specifications v1.0.2 22 | 27... -
Page 27: Storing The Detector
If it is damaged, please contact DECTRIS technical support. The detector housing can be cleaned with a soft tissue. The PILATUS4 R CdTe 260K detector does not require any maintenance. The coolant liquid has to be replaced every 12 months. For information on the coolant liquid, see section 4.3. - Page 28 • Do not inhale Cadmium Telluride (CdTe) dust when sensor is broken or burnt. • Do not ingest Cadmium Telluride (CdTe). • Avoid skin contact. For recycling, see section 2.1. ® DECTRIS PILATUS 4 R CdTe 260K Technical Specifications v1.0.2 24 | 27...
- Page 29 If the problem you are experiencing is not listed below or if the instructions do not help, please contact support@dectris.com. The LEDs at the back of the detector can provide valuable information for troubleshooting. Check section 4.1.4 for further information.
- Page 30 Shut down the detector imme- tector exceeds the operating con- diately and check the humidity. ditions. Power up the detector only when the ambient humidity has been reduced. ® DECTRIS PILATUS 4 R CdTe 260K Technical Specifications v1.0.2 26 | 27...
-
Page 31: Trademarks And Patents
Trademarks ® Registered trademarks ”DECTRIS”: AU, AUS, CH, CN, DE, FR, IT, JP, KR, USA, UK, ”DETECTING THE FUTURE”: AUS, CH, CN, EU, JP, KR, USA, UK, ”DECTRIS INSTANT RETRIGGER”: AUS, CH, CN, EU, JP, KR, USA, UK ”DECTRIS EIGER”: AUS, CH, CN, EU, JP, KR, USA, UK ”DECTRIS PILATUS”: AUS, CH, CN, EU, JP, KR, USA...
