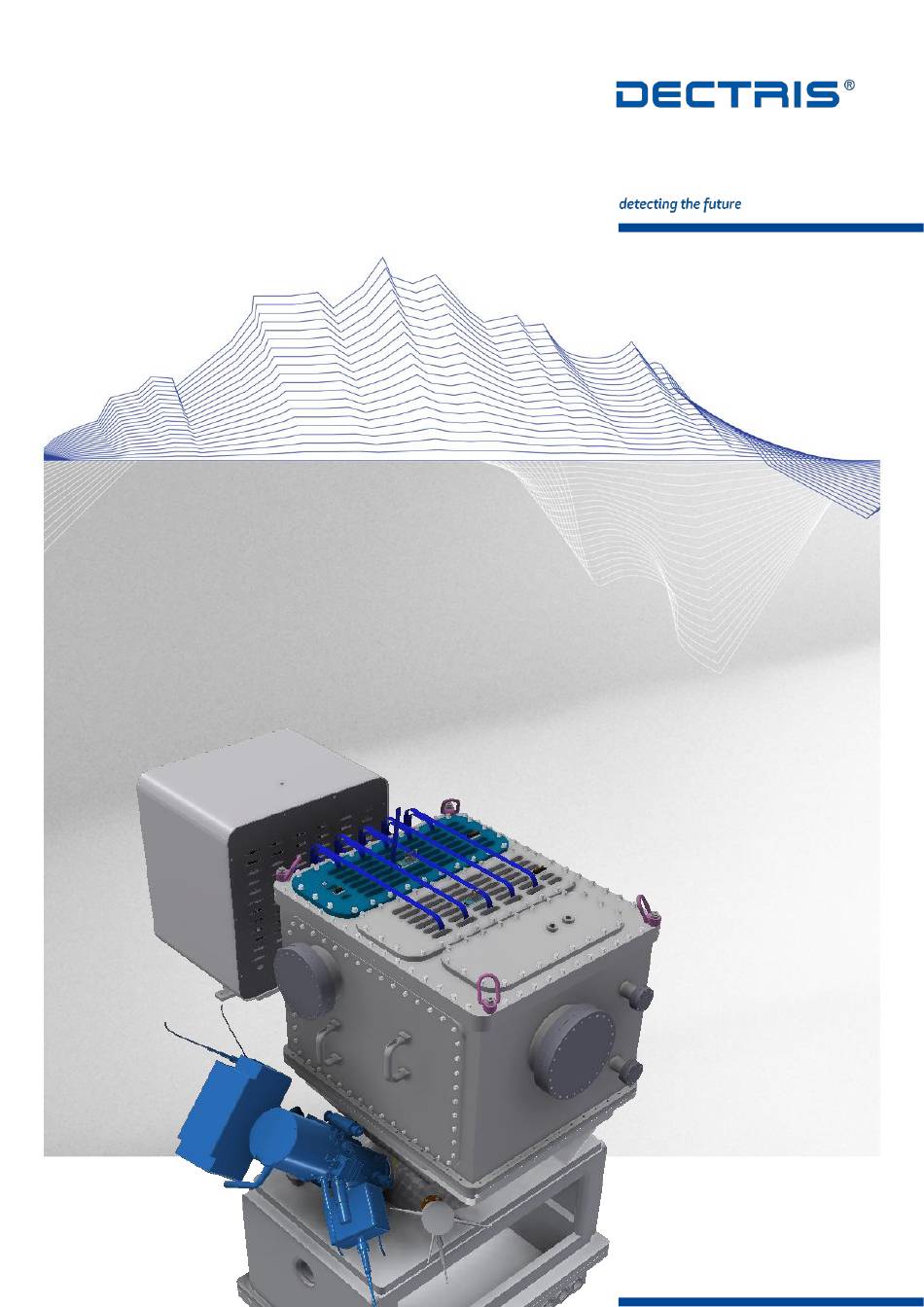

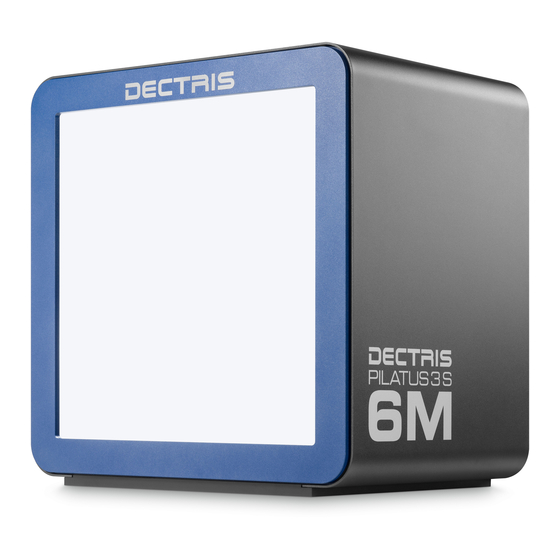

- Page 1 Technical Specifications and Operating Procedure PILATUS3 S 6M-NSRRC Detector System Version: V1.0 DECTRIS 5400 Baden Switzerland www.dectris.com...
-
Page 3: Table Of Contents
5.4. Mounting from Above 5.5. Mounting from Below 5.6. Connection to Nitrogen or Dry Air 5.7. Grounding of the Detector 6. Temperature and Humidity Control 7. Getting Started Technical Specifications and Operating Procedure. PILATUS3 S 6M-NSRRC Detector System. Version: V1.0 3/33... - Page 4 7.1. Startup Procedure 7.2. First Commands 8. Turning off the Detector 9. Storing the Detector 10. Cleaning and Maintenance 11. Troubleshooting Service Form Technical Specifications and Operating Procedure. PILATUS3 S 6M-NSRRC Detector System. Version: V1.0 4/33...
-
Page 5: List Of Figures
Figure 3: Drawing of the PILATUS3 S 6M-NSRRC detector electronics (printed separately in the user documentation folder)....................... 14 Figure 4: The PILATUS3 S 6M-NSRRC detector head with the blank flange in place (left)....... 15 Figure 5: The PILATUS3 S 6M-NSRRC detector head viewed from the back (left) and its connection layout (right). -
Page 6: Document History
Date status prepared checked released 02.11.2015 draft Table 1: Document history. 1.2. Changes Version Date Changes 02.11.2015 First version based on Technical_Specifications_PILATUS3S_6M_V3_0. Table 2: List of changes. Technical Specifications and Operating Procedure. PILATUS3 S 6M-NSRRC Detector System. Version: V1.0 6/33... -
Page 7: General Information
2.1. Warranty and Support Should your detector require warranty service, contact DECTRIS Ltd. for further information. You are not allowed to return the detector without prior written authorization by DECTRIS Ltd. Before shipping the system back, please contact DECTRIS Ltd. to receive the necessary transport and shipping information. -
Page 8: Use Of The Pilatus3 S 6M-Nsrrc
Product return and recycling We recycle DECTRIS detector systems that are no longer suitable for use. If you are not using your DECTRIS detector system any more, send it back to us. We will make sure that your system is responsibly and safely recycled. -
Page 9: Technical Specifications
1 pixel (FWHM) Data formats Raw data, TIF, EDF, CBF External trigger/gate 5 V TTL Software interface Through socket connection; Clients EPICS, SPEC stand-alone operation are available Technical Specifications and Operating Procedure. PILATUS3 S 6M-NSRRC Detector System. Version: V1.0 9/33... -
Page 10: Table 4: Technical Specifications
590 x 603 x 447 mm Weight Detector head: approx. 500 kg Detector electronics: approx. 50 kg Overvoltage category Pollution degree Maximum altitude 2000 m a.s.l. Table 4: Technical specifications. Technical Specifications and Operating Procedure. PILATUS3 S 6M-NSRRC Detector System. Version: V1.0 10/33... -
Page 11: Ratings
100 V AC (50 Hz), 100 – 115 V AC (60 Hz), 1 kW Cooling unit Coolant flow: >20 l/min @ 1.0 bar Coolant pressure: max. 1.9 bar Table 5: Ratings. Technical Specifications and Operating Procedure. PILATUS3 S 6M-NSRRC Detector System. Version: V1.0 11/33... -
Page 12: Ambient Conditions
3.2. Ambient Conditions The PILATUS3 S 6M-NSRRC detector is designed for indoor use only. The following ambient conditions must be satisfied. Please note that the below stated values are for the ambient conditions. Values inside the detector, in particular the dry-air or N supply are different. -
Page 13: Detector Dimensions And Connectors
Detector Dimensions and Connectors Figure 1: Rendering of the PILATUS3 S 6M-NSRRC detector consisting of detector head (left, with the front side facing down and the back side facing up) and detector electronics (right). Figure 2: Drawing of the PILATUS3 S 6M-NSRRC detector head (printed separately in the user documentation folder). -
Page 14: The Pilatus3 S 6M-Nsrrc Detector
Figure 3: Drawing of the PILATUS3 S 6M-NSRRC detector electronics (printed separately in the user documentation folder). 4.1. The PILATUS3 S 6M-NSRRC Detector 4.1.1. Front Side of the Detector Head For operation the detector head is flanged directly onto the vacuum system. The detector head comes with a blank flange as a protective cover during e.g. -
Page 15: Back Side Of The Detector Head
POWER 12 DATA 60 DATA 59 DATA 58 DATA 57 DATA 56 Figure 5: The PILATUS3 S 6M-NSRRC detector head viewed from the back (left) and its connection layout (right). Technical Specifications and Operating Procedure. PILATUS3 S 6M-NSRRC Detector System. Version: V1.0 15/33... -
Page 16: Front Side Of The Detector Electronics
DATA 59 DATA 60 POWER 12 TEMP 1 Figure 6: PILATUS3 S 6M-NSRRC detector electronics viewed from the front (left) and its connection layout (right) 4.1.4. Back Side of the Detector Electronics Figure 7: The PILATUS3 S 6M-NSRRC detector electronics viewed from the back. -
Page 17: The Status Leds
<1e-2 mbar) to protect the detector Use an interlock circuit, which is electrically isolated from the detector and simply connects (high voltage on) or disconnects (high voltage off) the two Technical Specifications and Operating Procedure. PILATUS3 S 6M-NSRRC Detector System. Version: V1.0 17/33... -
Page 18: Computer
4.2. Computer The PILATUS3 S 6M-NSRRC detector system comes with a detector server and a PILATUS Processing Unit (PPU). The detector server is a high power server with propriety software to communicate with the detector. The PPU ensures stable and highly reliable high-speed data transfer and may offer additional computing capacities. -
Page 19: Cooling Unit
4.3. Cooling unit A cooling unit is required for the operation of the PILATUS3 S 6M-NSRRC detector system. The tubes and the detector are equipped with self-sealing valves to avoid dripping when connecting or disconnecting the tubes. There is no fixed limitation on the length of the tubing. -
Page 20: Installing The Detector System
After installation immediately flush the chamber with dry air or pump down the system to keep humidity as low as possible. Technical Specifications and Operating Procedure. PILATUS3 S 6M-NSRRC Detector System. Version: V1.0 20/33... -
Page 21: Mounting Of The Detector Electronics
(minimum wall distance: 170 mm). Do not operate the detector in a closed environment. Figure 9: Drawing of the PILATUS3 S 6M-NSRRC detector base plate (printed separately in the user documentation folder). Technical Specifications and Operating Procedure. PILATUS3 S 6M-NSRRC Detector System. Version: V1.0... -
Page 22: Mounting From Below
It is strictly forbidden to add any threads to the detector base plate or to the detector housing. 4x M6 Figure 10: Mounting from below, bottom view. Technical Specifications and Operating Procedure. PILATUS3 S 6M-NSRRC Detector System. Version: V1.0 22/33... -
Page 23: Connection To Nitrogen Or Dry Air
Connection to Nitrogen or Dry Air When the PILATUS3 S 6M-NSRRC detector head is outside the storage box (for storage see section 9 and section 3.2) and not under vacuum has to be connected to a nitrogen or dry air flow to avoid humidity and condensation. -
Page 24: Temperature And Humidity Control
Temperature and Humidity Control The PILATUS3 S 6M-NSRRC detector has one combined temperature and humidity sensor. The temperature and humidity control shuts down the power of the detector modules when the humidity or the temperature of the sensor exceeds the following limits:... -
Page 25: Figure 11: Error Message When Temperature Or Humidity Is Out Of Range
Figure 11: Error message when temperature or humidity is out of range. Figure 12: Correct start-up message. Technical Specifications and Operating Procedure. PILATUS3 S 6M-NSRRC Detector System. Version: V1.0 25/33... -
Page 26: Getting Started
In-vacuum operation - prior to pumping down (and venting): Always make sure the detector is SWITCHED OFF and WARMED UP to room temperature. Otherwise it could be damaged through electrical discharge or condensation. Technical Specifications and Operating Procedure. PILATUS3 S 6M-NSRRC Detector System. Version: V1.0 26/33... -
Page 27: Startup Procedure
See the user manual for more information! expose 10: creates an image with an exposure time of 10 seconds. Technical Specifications and Operating Procedure. PILATUS3 S 6M-NSRRC Detector System. Version: V1.0 27/33... -
Page 28: Turning Off The Detector
Camserver cannot communicate with the detector. You may want to exit Camserver. You must restart Camserver after the detector has been turned on! Otherwise the detector is not initialized. Technical Specifications and Operating Procedure. PILATUS3 S 6M-NSRRC Detector System. Version: V1.0 28/33... -
Page 29: Storing The Detector
Check the humidity inside the box frequently for compliance with the storage requirements in section 3.2. To store the detector electronics pack them into an air-tight plastic bag and seal the plastic bag. Observe the storage requirements in section 3.2. Technical Specifications and Operating Procedure. PILATUS3 S 6M-NSRRC Detector System. Version: V1.0 29/33... -
Page 30: Cleaning And Maintenance
Replace the air filter on the back of the PILATUS3 Every 12 months User S 6M-NSRRC electronics Check the tightness of the cooling tubes Every week User Replace the cooling liquid Every 12 months User Technical Specifications and Operating Procedure. PILATUS3 S 6M-NSRRC Detector System. Version: V1.0 30/33... -
Page 31: Troubleshooting
11. Troubleshooting Refer to the table below if your detector does not function properly. If the problem you are experiencing is not listed below or if the instructions do not help, please contact support@dectris.com. Problem Cause Remedy PC does not start properly. -
Page 32: Table 11: Troubleshooting
Ambient humidity around the Shut down detector detector exceeds the operating immediately check conditions. humidity. Power up the detector only when the ambient humidity has been reduced. Table 11: Troubleshooting. Technical Specifications and Operating Procedure. PILATUS3 S 6M-NSRRC Detector System. Version: V1.0 32/33... -
Page 33: Service Form
☐ Problem on power-up ☐ Detector system is unstable What power line is used? Ambient temperature? Relative humidity? Add additional information. If the user has made special modifications, please describe. Technical Specifications and Operating Procedure. PILATUS3 S 6M-NSRRC Detector System. Version: V1.0 33/33...
