Summary of Contents for Dectris PILATUS3 X 6M

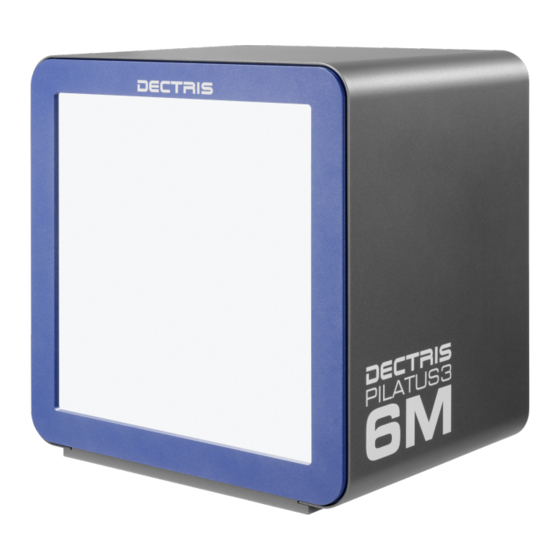

- Page 1 Technical Specifications PILATUS3 X 6M Detector System Document Version v1.2.0 DECTRIS Ltd. 5405 Baden-Daettwil Switzerland www.dectris.com...
- Page 2 Document Version v1.2.0 © Copyright 2020 DECTRIS Ltd.
-
Page 3: Table Of Contents
PILATUS3 X 6M Detector ........ - Page 4 Cleaning and Maintenance ......... . 22 TROUBLESHOOTING CERTIFICATION TESTS SERVICE FORM PILATUS3 X 6M Technical Specifications v1.2.0 ii | 26...
-
Page 5: Document History
Low Energy Calibration Option v1.1.2 2019-12-03 New Server J. v1.1.1 2019-10-03 New Server O. v1.1.0 2019-07-09 Update of corporate design of PILATUS R, S and X series. v1.0.0 2019-06-28 First Release. PILATUS3 X 6M Technical Specifications v1.2.0 iii | 26... -
Page 6: General Information
Warning blocks are used to indicate danger or risk to personnel or equipment. Caution Caution blocks are used to indicate danger or risk to equipment. Information Information blocks are used to highlight specific information. PILATUS3 X 6M Technical Specifications v1.2.0 1 | 26... -
Page 7: Warranty Information
DECTRIS is the sole owner of all user rights related to the contents of the manual (in particular information, images or ma- terials), unless otherwise indicated. Without the written permission of DECTRIS it is prohibited to integrate the protected contents in this publication into other programs or other websites or to use them by any other means. -
Page 8: Use Of The Pilatus3 X 6M
2. USE OF THE PILATUS3 X 6M The PILATUS3 X 6M detector system has been designed for the detection of X-rays produced by synchrotrons or laboratory sources. It is intended for indoor use only. For other applications, please contact DECTRIS technical support for additional information. -
Page 9: Technical Specifications
The energy calibration of your actual system can be found in the order confirmation and in the factory acceptance test sheet. Please read carefully the ”Low Energy Calibration” technical specification add-on before using thresholds lower than 2.7 keV. PILATUS3 X 6M Technical Specifications v1.2.0 4 | 26... -
Page 10: Detector Control Unit
3.1.4. Thermal Stabilization Unit The PILATUS3 X 6M is delivered with the thermal stabilization unit SMC HEC 002-A5B. It is a closed circuit air-water thermal stabilization unit. Please consult the user documentation of the SMC HEC 002-A5B thermal stabilization unit for details. -
Page 11: Ratings
±10 %, 50/60 Hz, 8 A (100 VAC) to 3 A (240 VAC) Dimensions (W x H x D) 270 mm x 393 mm x 436 mm Weight 17.5 kg Typical flow 3 L min Maximum operation pressure 3 bar PILATUS3 X 6M Technical Specifications v1.2.0 6 | 26... -
Page 12: Ambient Conditions
25 % during start up (use of dry air or nitrogen advised). The PILATUS3 X 6M detector is designed for indoor use only. The ambient conditions shown in table 3.6 must be satisfied. The stated values are for the ambient conditions. -
Page 13: Detector Dimensions And Connectors
4. DETECTOR DIMENSIONS AND CONNECTORS 4.1. PILATUS3 X 6M Detector 4.1.1. Technical Drawing Information 3D step files of the PILATUS3 X 6M detector are available on request. Please contact DECTRIS technical support for more information. Beschreibung/Description Datum/Date genehm./approv. 0 Zeichnung erstellt 06.12.2012... - Page 14 The cover may not protect the detector from a direct beam. Figure 4.2: The PILATUS3 X 6M detector with the cover in place (front view). The detector comes with a protective cover (2 mm low carbon steel sheet metal) for the front window, which should only be ®...
-
Page 15: Back Side Of The Detector
Figure 4.3: The PILATUS3 X 6M detector with the cover removed (front view). 4.1.3. Back Side of the Detector Figure 4.4: The PILATUS3 X 6M detector (back view). PILATUS3 X 6M Technical Specifications v1.2.0 10 | 26... -
Page 16: Status Leds
Information Although the detector might be already grounded via the mounting bolts, the detector should be grounded additionally via the functional ground connector at the back to establish a defined grounding. PILATUS3 X 6M Technical Specifications v1.2.0 11 | 26... -
Page 17: Detector Control Unit
4.2. Detector Control Unit The PILATUS3 X 6M detector system comes with a detector control unit (DCU) and a PILATUS processing unit (PPU). The DCU is a high power server with a proper software to communicate with the detector. The PPU ensures stable and highly reliable high-speed data transfer and may offer additional computing capacities. -
Page 18: Connectors
Briefly pushing the power button on the front panel will shut down the detector control unit. May take up to 1 min. Figure 4.6: PILATUS3 X 6M detector control unit as seen from the back. 4.2.2. Connectors Table 4.5: Detector Control Unit Connectors... -
Page 19: Pilatus Processing Unit (Ppu)
Windows Explorer address bar. 4.3. Thermal Stabilization Unit A thermal stabilization unit is required for the operation of the PILATUS3 X 6M detector system. The hoses and the detector PILATUS3 X 6M Technical Specifications v1.2.0 14 | 26... - Page 20 • Use opaque hoses to avoid the growth of algae. • Do not set the temperature of the thermal stabilization unit below the recommended operating temperature. Condens- ing moisture can develop and damage the detector. PILATUS3 X 6M Technical Specifications v1.2.0 15 | 26...
-
Page 21: Installing The Detector System Transport Considerations
The detector should be mounted using all four outer 7 mm holes (indicated with yellow circles). Caution Make sure the mounting brackets are mounted and properly tightened using the screws provided. PILATUS3 X 6M Technical Specifications v1.2.0 16 | 26... -
Page 22: Mounting From Below
Figure 5.1: Drawing of the PILATUS3 X 6M detector base plate with mounting brackets (bottom view). 5.2.2. Mounting from Below Warning It is strictly forbidden to add any threads to the detector base plate or to the detector housing. The detector should be mounted using the four internal M6x1 threads as shown in figure 5.2 (indicated with yellow circles). -
Page 23: Grounding Of The Detector
(see section 3.3). The PILATUS3 X 6M detector has to be connected to a dry air (or nitrogen) source to avoid humidity and condensation damage when it is outside of the storage box. For information on system connections, refer to chapter 4 and for storage of the detector system refer to chapter 7. -
Page 24: Mounting The Detector Control Unit
5.5. Mounting the Detector Control Unit Caution Make sure that the detector control unit has adequate ventilation. The detector control unit can be mounted in a standard 19 inch rack, which has to be properly grounded. PILATUS3 X 6M Technical Specifications v1.2.0 19 | 26... -
Page 25: Temperature And Humidity Control
6. TEMPERATURE AND HUMIDITY CONTROL The PILATUS3 X 6M detector has a combined temperature and relative humidity sensor. The temperature and humidity control shuts down the detector when the relative humidity or the temperature of the sensor exceeds the limits in table 6.1. -
Page 26: Operation Procedure
Camserver window. Please refer to the User Manual for further information. The detector should now be ready to use. Information The software start-up procedure is described in detail in the User Manual. PILATUS3 X 6M Technical Specifications v1.2.0 21 | 26... -
Page 27: Turning Off The Detector
Caution ® The Mylar foil must not be touched or cleaned. If it becomes dirty or is damaged, please contact DECTRIS technical support. The housing can be cleaned with a soft tissue. Please refer to the user documentation of the thermal stabilization unit for detailed information about the maintenance of your thermal stabilization unit. -
Page 28: Troubleshooting
LINK LED should be green (Takes up to 30 s after power Check configuration of the Ethernet The configuration of the Ethernet adapter, see section 4.2.1. adapter is wrong. PILATUS3 X 6M Technical Specifications v1.2.0 23 | 26... - Page 29 Ambient humidity around the detector Shut down the detector immediately exceeds the operating conditions. and check the humidity. Power up the detector only when the ambient hu- midity has been reduced. PILATUS3 X 6M Technical Specifications v1.2.0 24 | 26...
-
Page 30: Certification Tests
9. CERTIFICATION TESTS The product is in conformity with the following standards: Table 9.1: Certification Tests for PILATUS3 X 6M EN 61010-1: 2010 / IEC 61010-1: 2010 EN 61326-1: 2013 / IEC 61326-1: 2012 PILATUS3 X 6M Technical Specifications v1.2.0... -
Page 31: Service Form
10. SERVICE FORM PILATUS3 X 6M Technical Specifications v1.2.0 26 | 26...
