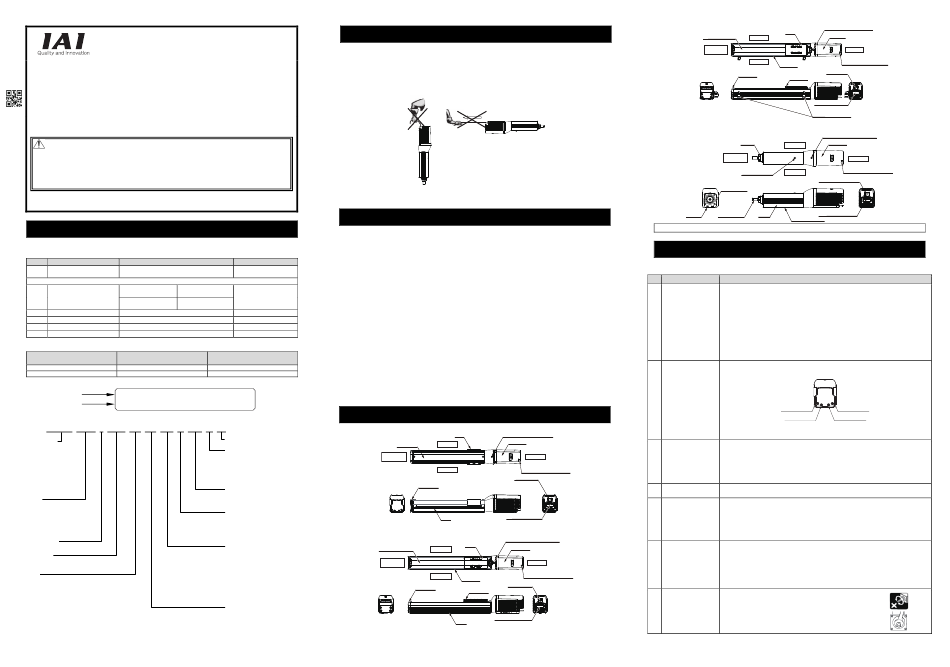

IAI ERC3 First Step Manual

Slider type/rod type
Hide thumbs Also See for ERC3:

Advertisement

ERC3 Actuator
Slider Type/Rod Type
First Step Guide
Sixth Edition
Thank you for purchasing our product.
Make sure to read the Safety Guide and detailed Instruction Manual as well as this First Step Guide to ensure correct use.
This Instruction Manual is original.
Warning : Read the instruction manual carefully and follow the instruction manual when handling this equipment.
Please downloaded the user's manual from our website.
You can download it free of change. User registration is required for first time users.
URL:www.iai-robot.co.jp/data_dl/CAD_MANUAL/
Keep a printout of the introduction manual near the equipment in which this product is installed so that
it can be checked at all times, or display it on your computer, tablet terminal, etc. so that you can
check it immediately.
If you need a bound copy of the instruction manual, order it from the nearest sales office listed in the
First Step Guide or at the end of the instruction manual. It will be provided for a fee.
• Using or copying all or part of this Instruction Manual without permission is prohibited.
• The company names, names of products and trademarks of each company shown in the sentences are registered
trademarks.
Product Check
This product is comprised of the following parts if it is of standard configuration.
If you find any fault in the contained model or any missing parts, contact us or our distributor.
1. Parts (The option is excluded.)
No.
Part Name
Model
Refer to "How to read the model plate", "How to
1
Actuator Main Body
read the model No."
Accessories
Except for SE Type
CB-ERC3P-PWBIO□□□
2
Power Supply • I/O Cable
Note 1
SE Type
CB-ERC3S-PWBIO□□□
3
Home Position Marking Sticker
4
Nut
5
First Step Guide
ME0296
6
Safety Guide
M0194
Note 1
Please refer to a cable listed in wiring for a power supply, the I/O cable attached to.
(List of Included Nut Type)
Nut
Model No.
M10×1.25
ERC3-RA5C
1
ERC3-RA6C
2. How to read the model plate
Model
MODEL
ERC3-SA5-I-42P-20-50-SE-S-CN-B
Serial number
SERIAL No. 000049893
3. How to read the Model No.
E R C 3 - S A 5 - I - 4 2 P - 2 0 - 5 0 - S E - S - C N - B - * *
<Series Name>
Standard Type
(Screw Cover Type)
ERC3
Standard Type
(Stainless Steel
Sheet Type)
ERC3D
Cleanroom Type
ERC3CR
<Type>
Slider Type
SA5C
SA7C
Rod Type
RA4C
RA6C
<Encoder Type>
I : Incremental
<Motor Type>
42P : 42 □Size
56P : 56 □Size
<Lead>
3 : 3mm
4 : 4mm
6 : 6mm
8 : 8mm
12 : 12mm
16 : 16mm
20 : 20mm
24 : 24mm
*1 : For Simple Absolute Type, I/O type is SE (Serial Communicate Type).
6B
1. Handling of the Packed Product
Take the greatest care in transporting the product, not to bump or drop it.
• An operator should never attempt to carry a heavy package on their own.
• When setting down the package temporarily, keep it horizontal.
• Do not step on the package.
• Do not place on the package a heavy object that may cause the box deformation or apply stress on it.
2. Handling of the Unpacked Product
Do not transport the actuator by holding the motor unit and cable or move it by pulling the cable.
• When the actuator is taken out from the package and handled, hold the base section.
• When transporting the actuator, be careful not to hit it against other objects. In particular, pay attention to the side cover.
• Do not give any unnatural force to any of the sections in the actuator.
Environments for Installation, Storage and Preservation
1. Installation Environment
Please attempt to avoid installing the product to such places as listed below.
Also, make sure to keep enough space necessary for maintenance work.
• Place where exposed to radiant heat from a huge heat source such as heat treatment
• Place where the ambient temperature goes out of the applicable range from 0 to 40°C
Remarks
• Place where condensation would occur due to sudden temperature change
• Place where the relative humidity exceeds 85% RH
• Place where exposed to the direct sunlight
• Place where corrosive gas or flammable gas exist
• Place where it contains a lot of dust, salt or iron (Outside of an ordinary assembly plant)
□□□ shows the cable length
• Place where water, oil (includes oil mist and cutting fluid) or chemical is splashed
(Example) □□□ : 020 = 2[m]
• Place where the product main body receives vibration or hit impact
Make sure to have a treatment for blocking when using in the following conditions:
Packaged in slider type
• Place where noise is generated by such facts as static electricity
• Place where exposed to the influence of strong electric or magnetic field
Refer to list below
• Place where exposed to the influence of ultraviolet or radiant rays
2. Storage and Preservation Environment
The storage and preservation environment should comply with the same standards as those for the installation environment.
In particular, when the machine is to be stored for a long time, pay close attention to environmental conditions so that no
dew condensation forms.
Nut
Unless specially specified, moisture absorbency protection is not included in the package when the machine is delivered. In
M14×1.5
the case that the machine is to be stored and preserved in an environment where dew condensation is anticipated, take the
condensation preventive measures from outside of the entire package, or directly after opening the package.
1
For storage and preservation temperature, the machine withstands temperatures up to 60°C for a short time, but in the
case of the storage and preservation period of 1 month or more, control the temperature to 50°C or less.
The product should be settled in the horizontal orientation while in storage and reservation. In the case it is stored in the
packaged condition, follow the posture instruction if any displayed on the package.
MADE IN JAPAN
1. Slider Standard Type (Screw Cover Type)
<Identification for IAI use only>
* There is no identification in some cases
Screw Cover
<Option>
B
: Brake
Opposite Side
of the Motor
NM : Reversed Home Specification
FL
: Flange
FT : Foot bracket
ABU : Simple Absolute Type
(*1)
<Controller Type>
CN : CON Mode
MC : MEC Mode
<Cable Length>
N
: None
S
: 3m
M
: 5m
2. Slider Standard Type (Stainless Steel Sheet Type)
X□□ : Specified Length
<I/O Type>
Stainless Steel Sheet
SE : Serial Communication Type
NP : Parallel Communication
Opposite Side
NPN Type
of the Motor
PLN : Pulse Train Control
NPN Type
PN : Parallel Communication
PNP Type
PLP : Pulse Train Control
PNP Type
<Stroke>
Precautions in Handling
Names of the Parts
Slider
Screw for motor unit attachment
Motor Unit
Right Side
Motor Side
Left Side
Status Indicator LED (SV/ALM)
Teaching Port
Front Cover
External I/F Connector
Base
Screw for motor unit attachment
Slider
Motor Unit
Right Side
Motor Side
Left Side
Status Indicator LED (SV/ALM)
Side Cover
Teaching Port
Front Cover
Slider Cover
External I/F Connector
Base
Screw for motor unit attachment
3. Slider Cleanroom Type
Slider
Stainless Steel Sheet
Right Side
Opposite Side
of the Motor
Left Side
Side Cover
Teaching Port
Front Cover
Slider Cover
External I/F Connector
Air Vacuum Joint Type
Air Tube SA5:φ6, SA7:φ8
4. Rod Type
Screw for motor unit attachment
Rod
Motor Unit
Right Side
Opposite Side
of the Motor
Grease Supply Gate
(Thin-Head Screw)
Left Side
Teaching Port Connector
Flange Surface
External I/F Connector
Rod End Fitting
T-groove
Frame
Range of T-groove
Refer to Catalog or Instruction Manual (ME0297) for the dimensions and profile.
Attachment
Refer to the Instruction Manual (ME0297) for the attachments of the actuator and loads.
[Precautions for Attachments]
No.
Item
Precautions
1
Installation
• If the actuator is installed in horizontally oriented wall mount for the Slider Standard Type
(Screw Cover Type) SA5C and SA7C, it is easy for a foreign object to get inside the actuator
from the opening on the side of the actuator. And also it becomes easy to splash the grease
applied on the guide and ball screw from the opening on the side surface.
• Installation of the slider standard type (stainless steel sheet type) and cleanroom types SA5C
and SA7C in horizontally oriented wall mount or in ceiling mount may cause the stainless steel
sheet to be slacked or displaced. Keeping use of the actuator in such conditions may cause
such failures as breakage of the stainless steel sheet. Adjust the sheet condition if necessary
in the daily inspections.
(Refer to the section for maintenance in instruction manual for how to adjust the stainless steel
sheet.)
• Avoid using the actuator with no brake in the vertical orientation.
• Secure the space where maintenance work can be performed.
2
Attachment Surface
• The base has to have a structure with sufficient rigidity to prevent oscillation.
• The side and the bottom surfaces of the base of the actuator are the datum for the slider drive.
If accuracy for its run is required, use these surfaces as a datum of the installation.
Reference Surface
(Side of Base)
Reference Surface
• The actuator mounting surface and other surfaces that are used as a datum should be flat
enough with an accuracy of machining or equivalent treatment, and the flatness of the
mounting surface needs to be ±0.05mm/m or less.
3
Bolt to be used
• For the bolts to be used, a high-tensile bolt complying with ISO-10.9 or more is recommended.
• If using the tapped holes, use screws with the thread length dimension being less than the
effective depth of the holes.
• For the actuator mounting, use a bolt with the dimension of its effective mating length to the
tapped hole is as stated below.
If tapped hole on steel → thread length same as nominal diameter
If tapped hole on aluminum → thread length 1.8 times longer than nominal diameter
4
Tightening Torque
• Please follow the specification values stated in the Instruction Manual for the tightening torque.
Failure to do so may cause an operation problem.
5
Load Moment and
• In the case of slider Type please follow the specification values stated in the Instruction
Overhung length
Manual for the load moment and the overhung length. Failure to do so may cause abnormal
vibration or noise, and also may remarkably shorten the product life.
• Please do not apply any external force from other than rod moving direction (radial load) to the
rod. Any perpendicular or radial force to the rod may cause damage to the actuator or
.
operation problem
Equip guide in the direction of the load if any external force from other
direction than the rod movement.
6
Stainless Steel Sheet
• Do not attempt to hold the stainless steel sheet directly with hand. Also pay attention not to
make a dent mark on the sheet.
Stainless steel sheet is easy to get dented because it is thin. Using it with a dent on may cause
a breakage.
• Wipe away dust or iron particles completely if there is any on the stainless steel sheet.
Operation with the stainless steel sheet that has foreign matters on its surface may cause
problems such as sheet damage, waviness, etc. inside the slider.
• Do not operate the product in an ambient with dust or iron particles.
• Do not apply rotation torque on the rod (slide shaft). There is a
7
Load Attachment to Rod
possibility of damaging an inside.
• Tighten the nut on the rod tip by holding the rod with a wrench or an
equivalent tool (such as a backing wrench).
Motor Unit
Motor Side
Status Indicator LED (SV/ALM)
Motor Side
Status Indicator LED (SV/ALM)
Reference Surface
(Side of Base)
Reference Surface
