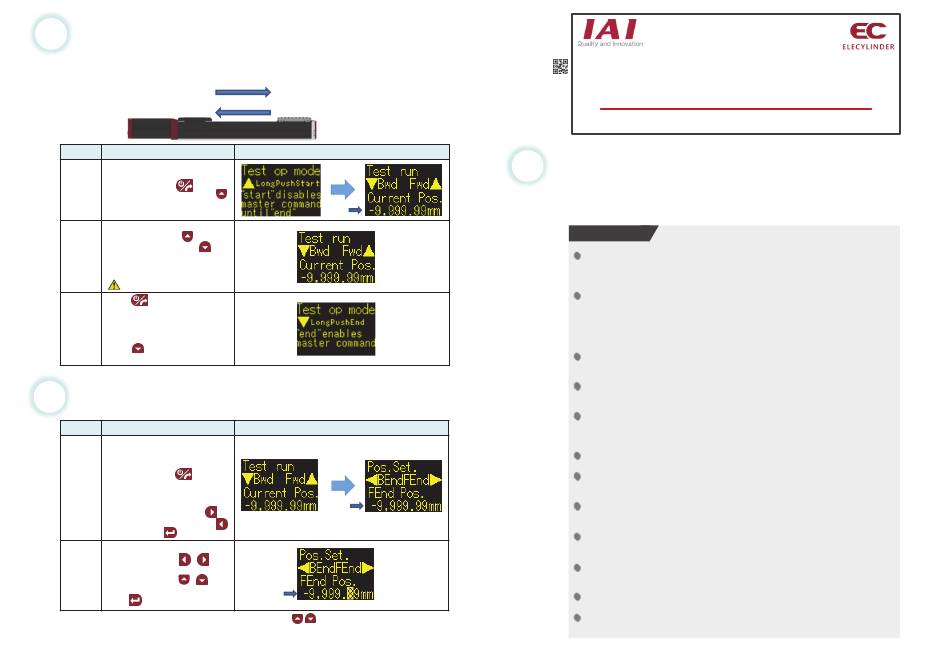

STEP
Let's Try Operation (Test Run)
6
It is an operation to perform forward and backward movement operations.
(Refer to "STEP 4" and "STEP 5" during operation)
After setting the operating conditions (Velocity or AVD), it is available to check the actual operation.
Backward
End
No.
Operation
After STEP 4-1 or STEP 5-1,
Press the Power / Display
Switchover Button
and
1
press and hold the Up button
The window switches to Test
Operation Mode.
Press either;
Forward : Up button
Backward : Down button
2
and ELECYLINDER should
move forward or backward while
a button is pressed.
The ELECYLINDER starts moving!
Press
Power / Display
Switchover Button several times
to show Test Operation Mode
3
End window shown in the right.
Press and hold the Down
button
to terminate the Test
Operation Mode.
For more detail, refer to the instruction manual.
Let's Set up Positions
STEP
7
It is an operation to set up the forward end position and the backward end position.
(Refer to "STEP 6" during operation)
No.
Operation
After getting into the Test
Operation Mode (STEP 6-1),
press the Power / Display
Switchover Button
to
move to the position setting
1
window.
(Note 1)
Select either;
Forward End: Right button
or Backward End: Left button
and then press
.
Define the position with;
Right / Left buttons
/
for
[Digit Setting], and
2
Up / Down buttons
/
for
[Number Setting], and then
press
.
*1 ELECYLINDER will start moving if the Up or Down button
A feature of read-in of a position moved with the jog operation or moved manually should also be
available.
For more detail, refer to the instruction manual.
Forward
Backward
Forward
End
Window Display
.
Current
Position
Window Display
Current
Position
,
,
Setting
Position
is accidentally pressed.
Control number: ME3810-2A
Digital Speed Controller
DIGITAL SPEED CONTROLLER TEACHING
REMOTE DIGITAL SPEED CONTROLLER
Quick Start Guide
Please refer to the Instruction Manual [DIGITAL SPEED CONTROLLER Instruction manual (ME3818)]
for details of handling.
STEP
Let's Check before Installation and Operation
1
Digital speed controller (hereinafter described as "DS") is assumed to be operated in
set-up change (1) at startup of equipment and (2) during equipment run, and work is
assumed to be done in a safety fence.
Touching a moving part or transported object may cause injury to an operator.
Caution
Grasp the operation of moving parts or transported objects to avoid touching them,
and the work should only be conducted by an operator trained for safety training
(special training specified in Ordinance on Industrial Safety and Health in case in
Japan).
If a teaching tool in high priority of communication is connected, a display "Tool
Connected" should be shown in the DS display and operation of DS should be
restricted.
When checking the display, grasp the operation range and take enough distance
from it so any part of your body would not touch any moving part or transported
object.
Make sure to separate the DS operation part from any moving part or transported
object and protect yourself with area sensors such as a light curtain before starting
the work so you would not get your finger or hand pinched.
In order for users to have a safe work, DS speed is set at 250mm/s or lower on
delivery. When you set the speed above 250mm/s, increase it gradually considering
safety for the work.
Aside an operator of DS, have a surveillant, thus have two or more people to work.
It is important that you build an appropriate safety circuit and have an emergency
stop button and 3-position enabling switch equipped. A surveillant has to
immediately stop the facility in an emergency to ensure the safety of the operator.
Make sure to have a safety circuit constructed in order to avoid a startup only with
the power getting supplied or recovery after power cutoff.
ELECYLINDER equipped with DS should be installed in a position easy to operate
and to see to protect an operator from awkward postures during operation. Failure
to do so may hurt back, neck or wrist.
Confirm that there is no error on the safety circuit or the DS itself before starting
work. Take an appropriate counteraction in case an error is found before starting
work.
Create necessary "work standards" to ensure safety and conduct a training based
on the standards, and allow only well educated ones (operators educated for work
standards) for the work.
When working inside the safety protection fence, make sure to set a display
showing "Work in Progress in Safety Fence" to a place seeable from outside of the
fence before starting work.
Ensure safety with necessary safety gear such as helmet, protection gloves,
protection glasses and safety shoes.
Carry out a risk assessment so any possible risks can be lowered as much as
possible.
®
