TP-Link Omada IES206GPP Installation Manual

Installation Guide
Omada Industrial Easy Managed PoE Switch
The images in this guide are for demonstration only and may differ from your actual product.
For more information, refer to the latest version of the switch's Quick Start Guide by scanning
the QR code or visiting https://support.omadanetworks.com/document/.
Note: For simplicity, this guide will use IES206GPP as an example throughout.

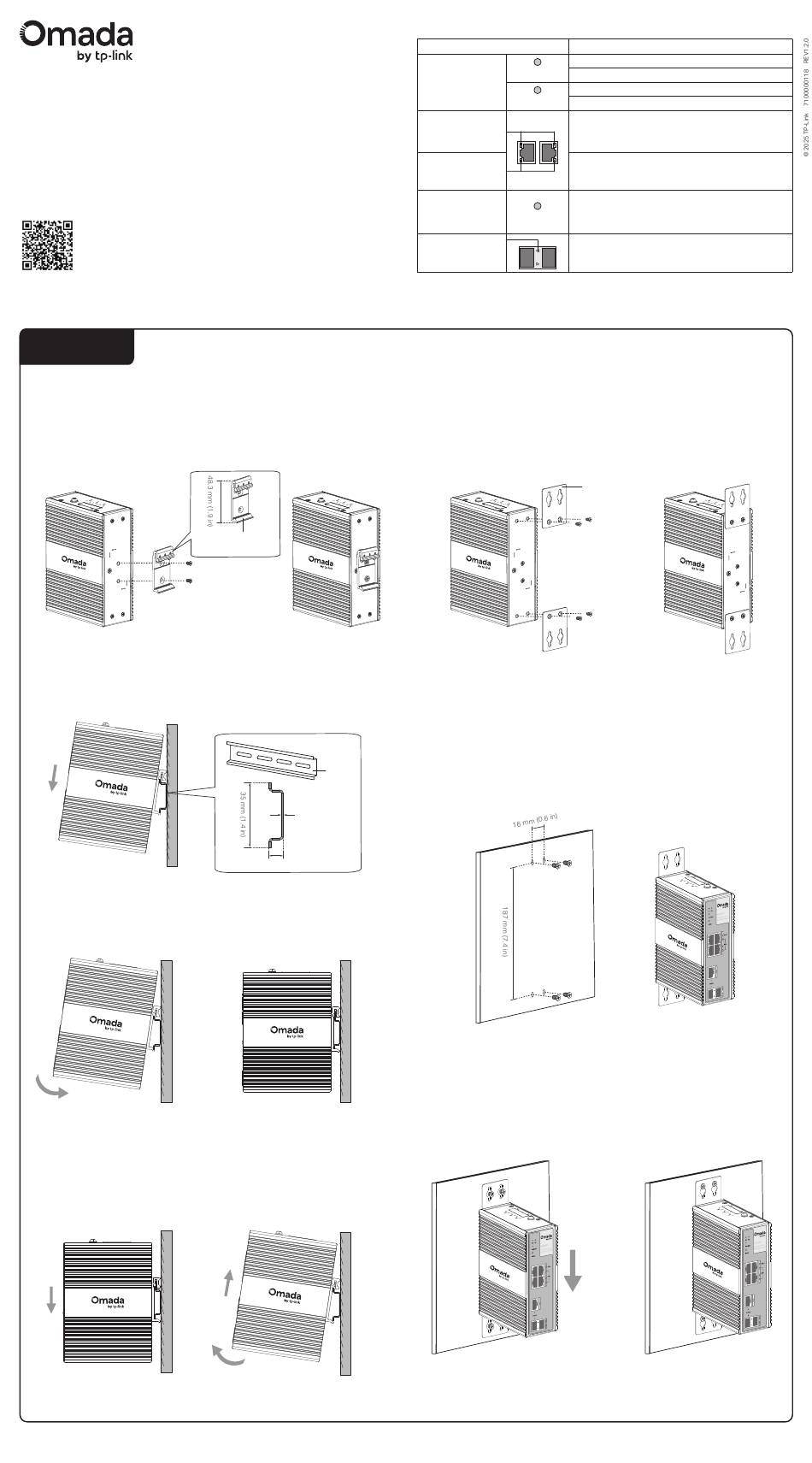

Installation
Note: The DIN-rail mounting bracket, wall-mounting plates, and M3X6 flathead screws are included in the package.
Option 1: DIN-Rail Mounting
1. Align the DIN-rail mounting bracket with the markings on the switch's
rear panel and attach it to the panel with M3X6 flathead screws.
2. Insert the upper lip of the DIN rail into the DIN-rail mounting bracket.
3. Push the switch towards the DIN rail until it snaps into place.
Removing from the DIN Rail:
1. Pull down the switch to free the bottom of the bracket from the DIN rail.
2. Slightly pull the switch away from the DIN rail and lift it straight up to
unhook the switch from the DIN rail.
DIN-rail mounting
bracket
DIN rail
1 mm (0.04 in)
7.5 mm (0.3 in)
LED Explanation
LED
P1
Power Status
P2
Link/Act
Ports 1-5 of IES206GPP
Ports 1-10 of IES210GPP
PoE Status
Ports 1-4 of IES206GPP
Ports 1-8 of IES210GPP
PoE Max
PoE Max
SFP
Ports 5F-6F of IES206GPP
Ports 9F-10F of IES210GPP
Option 2: Wall Mounting
1. Attach the wall-mounting plates to the switch's rear panel with M3X6
flathead screws.
2. Drill four holes in the wall aligned with the mounting holes on the
wall-mounting plates. Insert four suitable expansion bolts (not included)
into the holes, and securely tighten the screws into the bolts.
Note: The screws should comply with ANSI B1.1 4# standard. Leave a
2mm gap to allow room for sliding the wall-mounting plates between the
wall and the screws.
3. Align the wall-mounting plates over the screws and insert the screw
heads through the apertures of the wall-mounting plates. Then slide
the switch downwards to lock it in place and tighten the screws to
secure the switch.
Explanation
On: PWR1 power supply is on.
Off: PWR1 power supply is off.
On: PWR2 power supply is on.
Off: PWR2 power supply is off.
On (Green): Running at 1000 Mbps
On (Yellow): Running at 10/100 Mbps
Blinking: Transmitting/receiving data
Off: No connected device
On: Providing PoE power
Blinking: Current-overload/Short-circuit
Off: No PD device or PoE Power not provided
On: Remaining power supply is ≤ 7 W
Blinking: Remaining power supply remains ≤ 7 W for more
than 2 minutes
Off: Remaining power supply is > 7 W
On (Green): Running at 1000 Mbps
Blinking: Transmitting/receiving data
Off: No connected device
Wall-mounting plate
