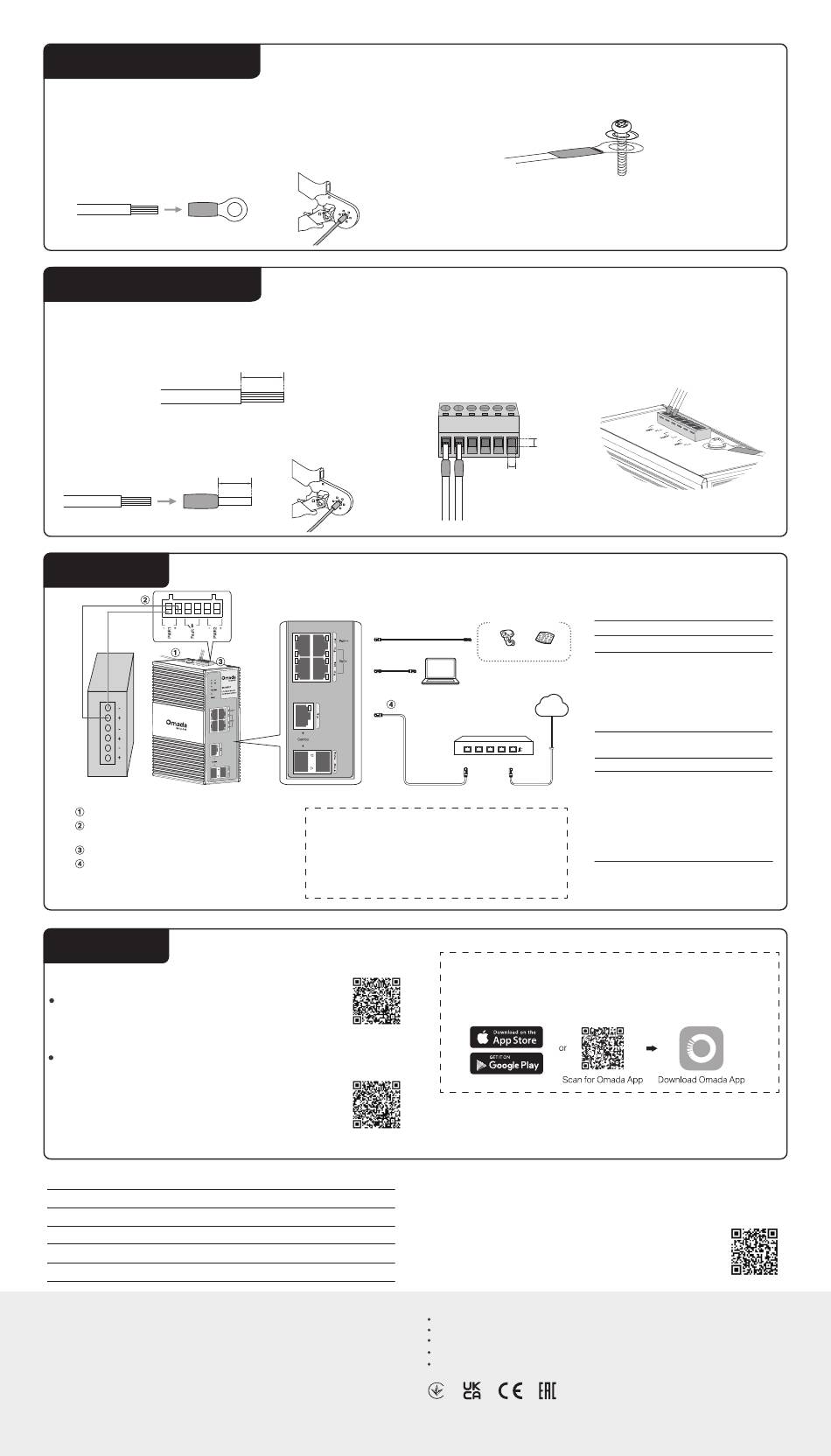

TP-Link Omada IES206GPP Installation Manual page 2

Grounding the Switch
1. Use a standard Phillips screwdriver to remove the ground screw from the top
panel of the switch. Keep the ground screw for later use.
2. Use a wire stripper to strip the ground wire.
Note: The ground wire must be copper and at least 14 AWG.
3. Insert the ground wire into the ring terminal (not provided). Use a wire crimper
to crimp the terminal to the wire.
Wiring DC Power Supply
1. Use a wire stripper to strip each of the two wires from the DC power source.
Note: The wires must be copper and at least 14 AWG. The recommended
length of the wire to be stripped is 10 mm (0.39 inch).
2. Insert the wires into the copper ferrules (not provided). Use a wire crimper to
crimp the ferrules to the wires.
Note: The recommended length of the copper ferrules is 8 mm (0.31 inch).
Connection
DC Power Supply
Ground the switch properly.
Connect the terminal block to the DC power supply
(keep the power off).
Insert the terminal block into the switch.
Connect the switch to the internet.*
* Ports 5 and 5F of IES206GPP, ports 9 and 9F, ports 10 and 10F
of IES210GPP form combo port pairs, respectively. Only one of
the ports in the pair can be active at a time.
Configuration
The switch supports two configuration methods:
Standalone Mode: Configure and manage the switch individually.
To set up a standalone Omada switch, scan the QR code or refer to
https://www.omadanetworks.com/support/faq/4097/.
Controller Mode: Configure and manage the network devices
centrally. This mode is recommended for large-scale networks
with numerous devices, including access points, switches, and
gateways.
To set up an Omada switch with an Omada Controller, scan the
QR code or refer to the Omada Controller configuration guide at
https://www.omadanetworks.com/support/faq/4096/.
More Resources
Main Site https://www.omadanetworks.com
Video Center https://support.omadanetworks.com/video
Documents https://support.omadanetworks.com/document
Product Support https://support.omadanetworks.com/product
Technical Support https://support.omadanetworks.com/contact-support
EU declaration of conformity
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant
provisions of directives 2014/30/EU, 2014/35/EU, 2011/65/EU and (EU)2015/863.
The original EU declaration of conformity may be found at https://www.tp-link.com/en/support/ce/
UK declaration of conformity
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant
provisions of the Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations
2016.
The original UK declaration of conformity may be found at https://www.tp-link.com/support/ukca/
10 mm (0.39 in)
8 mm (0.31 in)
Safety Precautions:
1. To ensure IP40 protection, tighten the ground screw and all the mounting
screws on the switch regardless of installation method.
2. Keep the power off until everything is properly connected.
3. To avoid any device damage and bodily injury, connect the grounding stud
to the grounding surface properly before connecting devices.
4. Maintain an ambient temperature range of -40˚C~75˚C.
Scan for Standalone
Configuration Guide
Scan for Controller
Configuration Guide
4. Pass the ground screw through the ring terminal, then secure it back into the
top panel.
5. Use a ratcheting torque screwdriver to tighten the ground screw and ring
terminal to the switch's top panel.
6. Attach the other end of the ground wire to a grounded bare metal surface.
3. Use a ratcheting torque flathead screwdriver to loosen the captive screws on
the terminal block of the switch.
4. Connect the wires to the terminal block correspondingly. Insert the terminal
block into the top panel of the switch.
2.9 mm (0.11 in)
2.6 mm (0.1 in)
Powered Device (PD)
IP Camera AP
PC
Internet
Gateway
LAN Port WAN Port
Omada App
With the TP-Link Omada app, you can access and manage your Omada
devices at a local site or remotely with a tap of your phone. You can download
and install the TP-Link Omada app from the App Store or Google Play.
For detailed instructions on device configuration, refer to the user guides of the
Controller and switches. The guides can be found in the support center of our
official website: https://support.omadanetworks.com/document/.
Warranty
For details on the warranty period, policy, and procedures,
visit https://support.omadanetworks.com/warranty-services.
For technical support, user guides and other information, please visit
https://support.omadanetworks.com/, or simply scan the QR code.
Safety Information
Keep the device away from water, fire, humidity or hot environments.
Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
Adapter shall be installed near the equipment and shall be easily accessible.
Place the device with its bottom surface downward.
The PoE ports shall not be used to charge lithium batteries or devices supplied by lithium batteries.
Power Specifications
Power Input 12-57 VDC
For IES206GPP:
60 W (Input: 12 V / 7.2 A - 21 V / 3.5 A)
120 W (Input: 21 V / 6.5 A - 57 V / 2.3 A)
PoE Power
For IES210GPP:
Budget
60 W (Input: 12 V / 7.2 A - 21 V / 3.7 A)
120 W (Input: 21 V / 6.7 A - 46 V / 3.1 A)
240 W (Input: 46 V / 5.7 A - 57 V / 4.4 A)
PoE Power Up to 60 W (PoE++ Port)
Per Port Up to 30 W (PoE+ Port)
Fault Relay 24 V / 1 A (Max)
Note:
1. The PoE ports shall not be used to charge lithium
batteries or devices powered by lithium batteries.
2. The PoE budget is based on lab tests and may vary
due to power supply, client limitations, and
environmental factors.
3. The Fault Relay is a normally closed contact that will
open the circuit when a Fault event is triggered.
