Installation
General Safety Instructions
The velorian e-bike blinkerset 2.0 contains small parts that can be swallowed by little children. There is a risk of injury when handling the cables
and tools.
We recommend installation by a specialist workshop.
The electronics in the blinkerbox are reverse polarity protected. This means that swapping the connection cables (mixing up plus and minus)
on indicators, switches or the power supply will not destroy the electronics or the connected components.

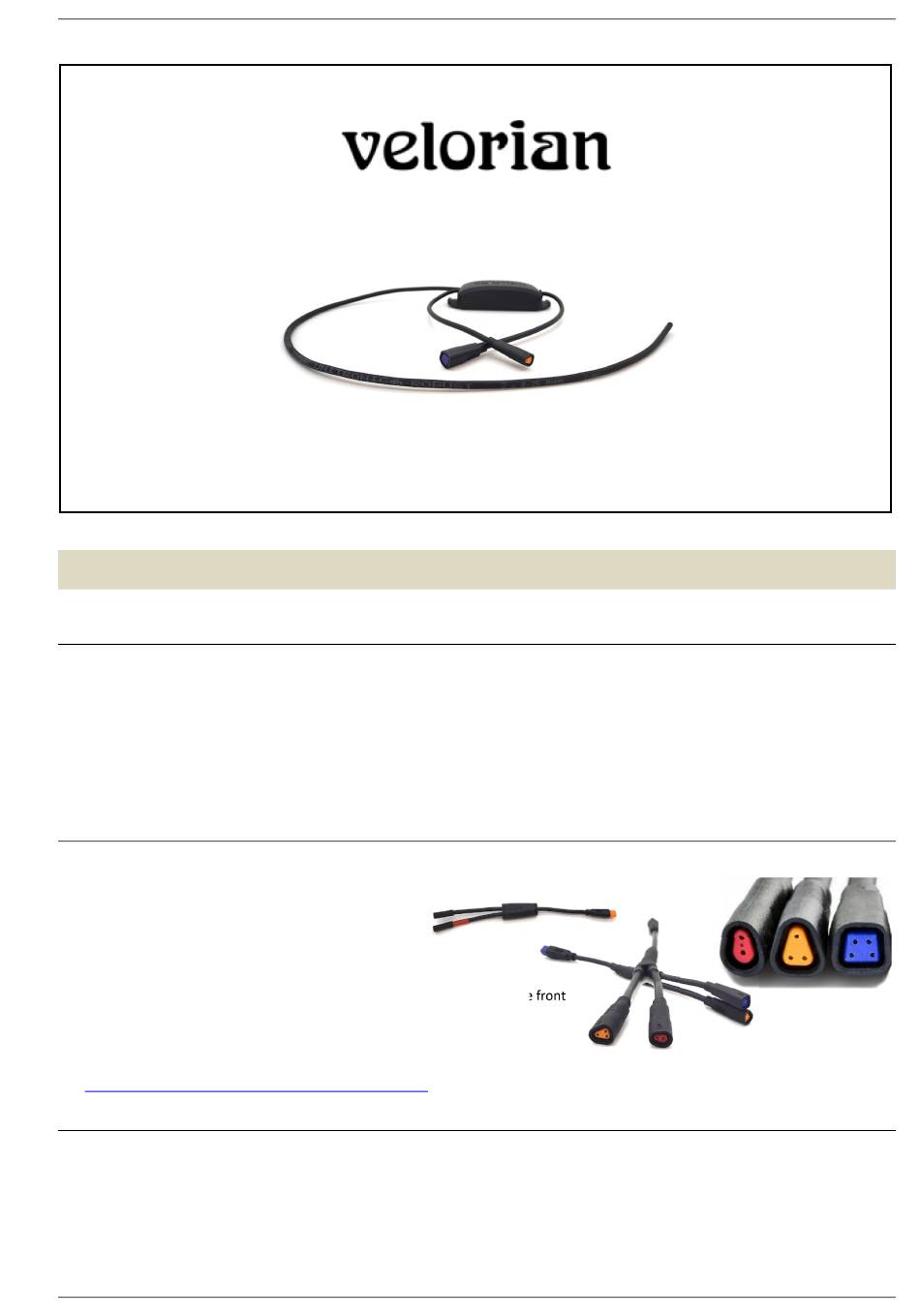

Scope of delivery
In addition to the individually packaged components, all cables and splitters are packaged together with the blinkerbox.
This includes:
• 6-pin cable (violet) to the front of the handlebars
• 3-pole cable (yellow) to the rear
• Cable splitter (3-pin) for connecting the front indicators and rear
indicators
• Front splitter Cargo Base (6-pin) to switch and status LED (4-pin) and to the front
indicators (3-pin)
Cargo splitter (4-pin) to the switch (3-pin) and to the status LED (2-pin)
•
The extension cables are available in lengths of 10 cm, 20 cm, 30 cm, 50 cm and 100 cm to suit the respective frame size.
See https://shop.velorian.de/Cable-and-Splitter-Plug-and-Ride
General installation instructions
The blinkerbox is splash-proof. Nevertheless, the side with the two cables and the opening of the sounder should be attached in such a way
that no water can collect on the sounder. This side should point downwards.
Make sure that the plug and socket are correctly aligned before making the connection! Otherwise, the pins could bend when plugging
together, especially the multi-pin plugs.
