© velorian GmbH, Storkower Str. 115A, 10407 Berlin, Germany - https://velorian.de/
Hase Kettwiesel / Lepus
Installation

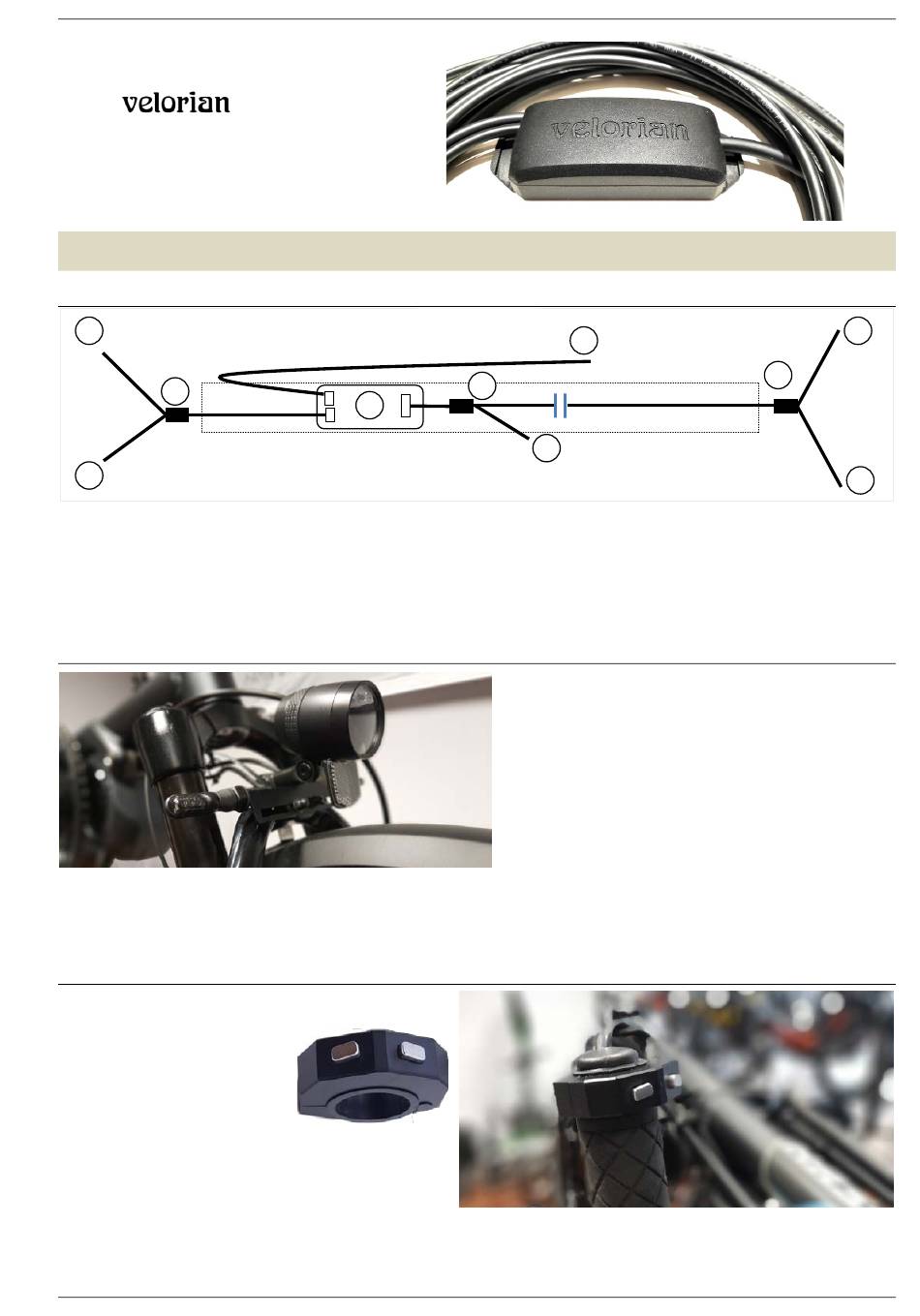

Schematic representation
1
frame
7
rear
1
1. short LED running light indicators with rubber caps on universal
bracket long
2. Mini mini turn signal with rubber caps on bracket GBHV3
3. daytona double pushbutton
4. splitter with 1 x 3-pin connection to the indicators and 1 x 3-pin
connection with white marking to the switch
Front indicator mounting
The connection cable is routed from the front to the rear through the front bar and can then be connected to the indicators.
The cable with the red marking is for connecting the right-hand indicator in the direction of travel as long as the double push-button is fitted
as described below.
Switch mounting
The double button is mounted above the handlebar on the left-
hand side as shown in fig. 2. The
cable on the switch can then be
routed upwards into the handlebars
and through to the 3-pin plug on the
splitter (white marking).
Only in this position (the outer sides of the push-buttons point
downwards) does the right push-button trigger a flashing on the
right-hand side in the direction of travel.
If the switch has to be mounted rotated by 180°, the left and right indicator connections must be swapped accordingly.
Version DE.01.2023.12.08
BLINKERSET
5
fig.2
left side
8
4
3
right side
5. Blinkerbox
6. Splitter with 2 x 2-pin connection to the indicators and 1 x 3-pin
connection to the switch
7. Rear splitter with 2 x 2-pin connection to the indicators
8.
2-core power supply cable
To mount the front indicators on the suspension fork, they are
screwed into the GBHV3 and attached to the suspension fork using
the mounting bracket. The mounting bracket is attached to the
GBHV3 with 2 screws and screwed together with the headlight on
the other side.
See
fig. 1
To mount the front indicators on the rigid fork, they are screwed
into the BHW3 and screwed in the centre behind and together
with the headlight.
fig. 1
fig. 3
velorian Blinkerset Hase
2
6
front
2
Seite 1/4
