velorian Blinkerset Anthrotech Manual

© velorian GmbH, Storkower Str. 115A, 10407 Berlin, Germany - https://velorian.de/
Anthrotech Classic
Installation

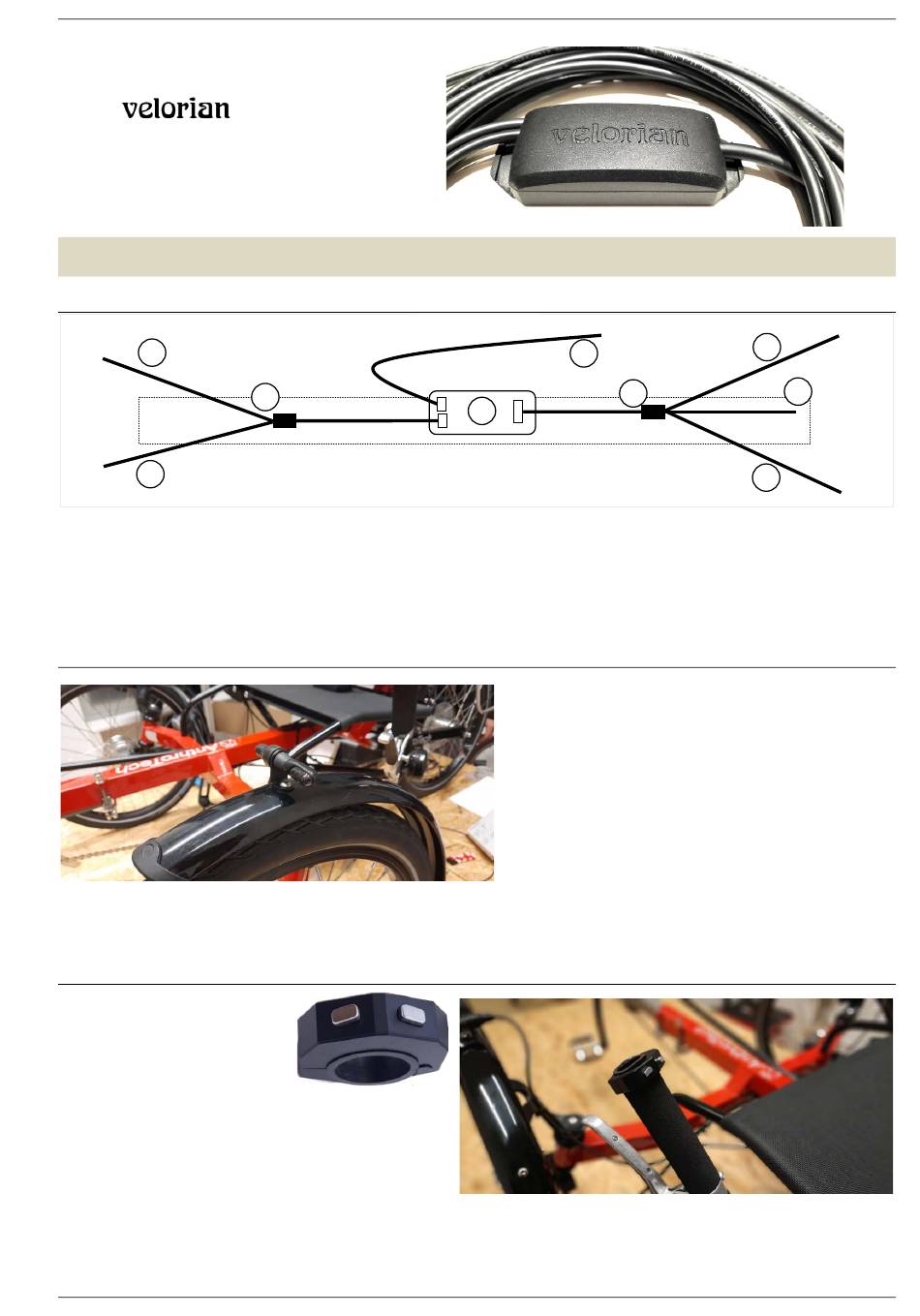

Schematic representation
1
rear
frame
1
L
1. ED Mini turn signal with rubber cap on bracket BHW 1
2. LED Mini turn signal with rubber cap on bracket BHW 1
3. Daytona Double Push Button
4. Blinkerbox
Turn signal mounting front
The cable with the red marking is for the connection of the respective right turn signal in the direction of travel, as long as the double
pushbutton is mounted in the manner described below.
Switch assembly
The double pushbutton is mounted
above the handle as shown in Fig. 2
The cable on the switch can then be
routed below the rubber grip to the
3-pin plug on the splitter
Only in this position (the outer sides
of the pushbuttons point downwards) does the right pushbutton
trigger a flashing on the right side in the direction of travel.
If the switch has to be mounted rotated by 180°, the connections
of the left and right turn signals must be changed accordingly.
Version DE.01.2024.01.07
BLINKERSET
6
Fig. 2
left
7
5
4
right
5. Splitter with 2 x 2-pole connection to the turn signals and 1 x 3-
pole connection to the switch.
6. Rear splitter with 2 x 2-pole connection to the turn signals
7. 2-core power supply cable.
To mount the turn signals, the mudguards are removed and the
mounting brackets for the turn signals are attached to the upper
mounting screws. For mounting, the (smaller) M6 hole of the
angle is provided.
The angles are aligned inwards. See Fig. 1
The turn signals can now be inserted through the M8 hole of the
bracket and reattached with the nut previously unscrewed from
the turn signal. Finally, the rubber cap is pushed over the cable
and the nut.
Fig. 1
Fig. 3
velorian Blinkerset Anthrotech
2
3
front
2
Seite 1/4
