ICE Adventure
Installation

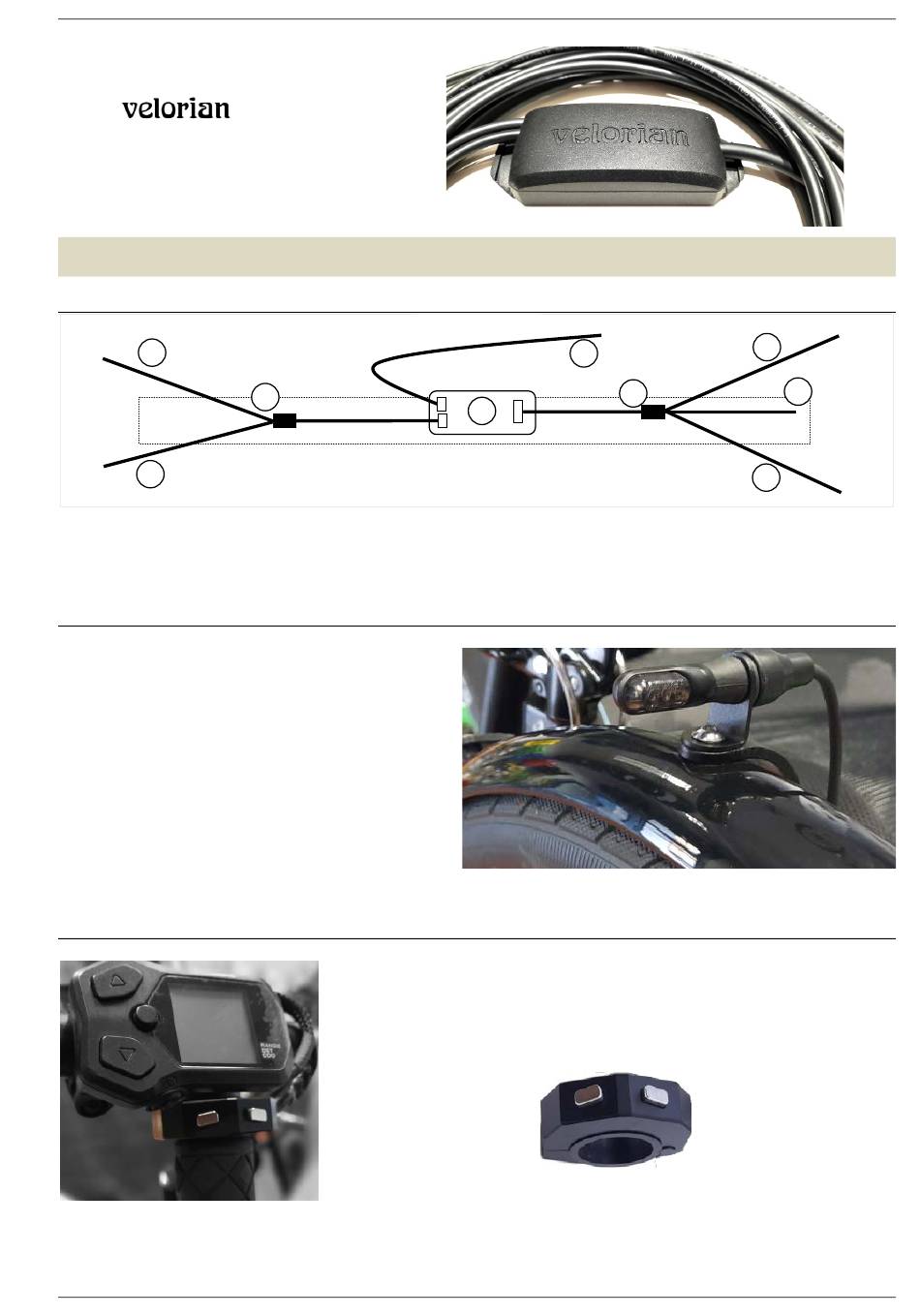

Schematic representation
1
rear
frame
1
1. LED mini turn signal with 2 rubber caps on bracket 2 x BHW 1
2. LED mini turn signal with 2 rubber caps on bracket 2 x BHW 1
3. daytona double pushbutton
4. Blinkerbox
Turn signal mounting front
To mount the turn signals, the mudguards are removed and the
mounting brackets for the turn signals are attached to the upper
mounting screws. For mounting, the (smaller) M6 hole of the
angle is intended.
The angles are thereby aligned inwards. See Fig. 1
The turn signals can now be inserted through the M8 hole of the
bracket and reattached with the nut previously unscrewed from
the turn signal. Finally, the rubber cap is pushed over the cable
and the nut.
Switch assembly
If the switch must be mounted rotated by 180°, the connections of the left and right turn signals must be changed accordingly.
Version EN.01.2023.09.15
BLINKERSET
6
The dual switch is mounted above the handle on the left side as shown in Fig. 2. The cable on
the switch can then be routed up into the handlebar and through to the 3-pin connector on the
splitter.
Only in this position the right button triggers a flashing on the right side in the direction of
travel.
Fig. 2
left
7
5
4
right
5. splitter with 2 x 2-pole connection to the turn signals and 1 x
3-pole connection to the switch
6. rear splitter with 2 x 2-pole connection to the turn signals
7. Pre-assembled two-part 2-core power supply cable.
Abb. 1
Fig. 1
Fig. 3
velorian Blinkerset ICE
2
3
front
2
