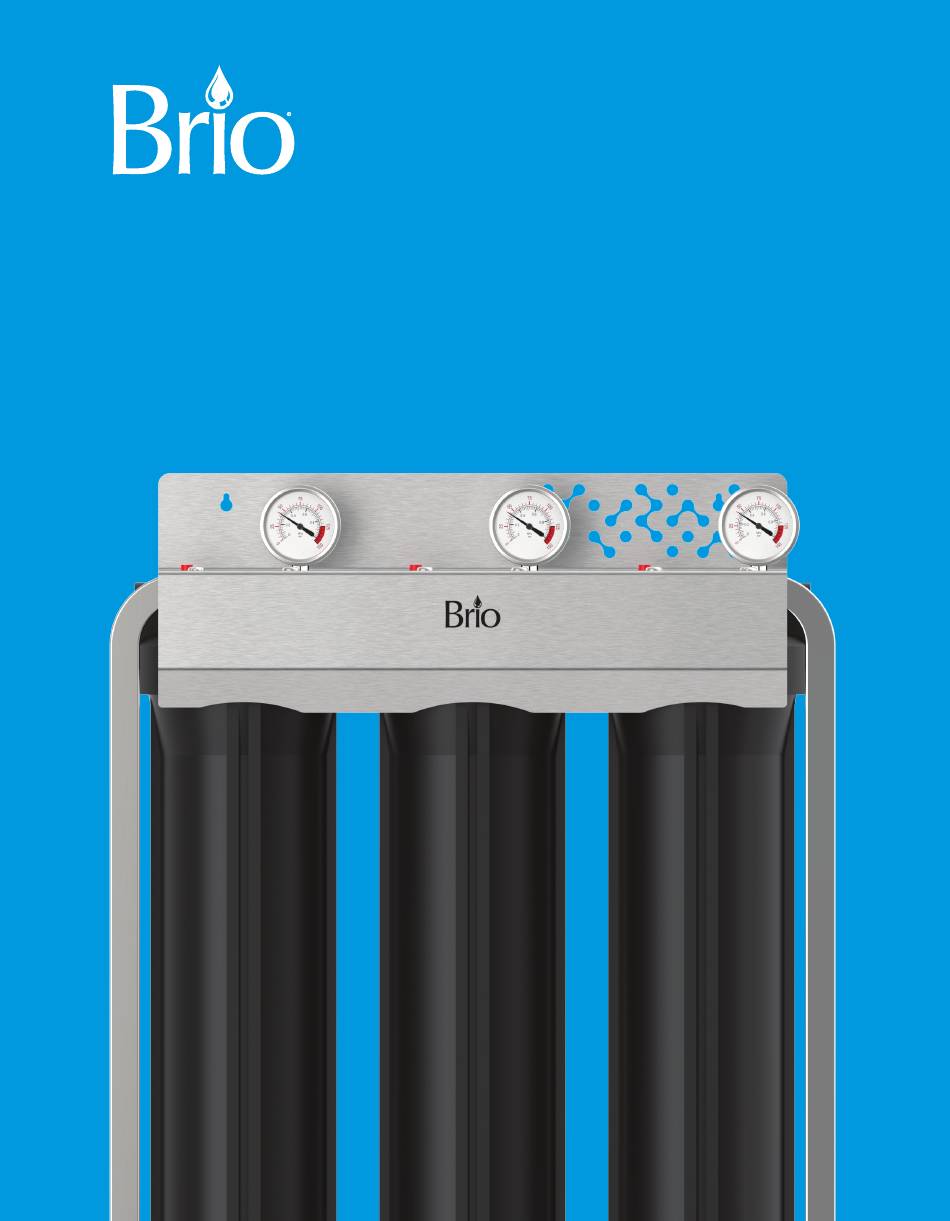

- Page 1 3-Stage Whole House Filtration System (4.5” x 20”) Setup Manual Model Nos.: FSWH300STD, FSWH300KDF, FSWH300PHO, FSWH300IMR...
-
Page 2: Table Of Contents
Table of Contents Installation Conditions and Requirements � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3 Product Overview �... -
Page 3: Installation Conditions And Requirements
Installation Conditions and Requirements • This filtration system should not be used with water that is microbiologically unsafe or of unknown quality without adequate disinfection before and/or after the system� • This filtration system should be installed out of direct sunlight and in a sheltered area that is level and dry, with no exposure to extreme hot or cold temperatures�... -
Page 4: Operational And Technical Specifications
Operational and Technical Specifications Models FSWH300STD, FSWH300KDF, FSWH300PHO, FSWH300IMR Minimum Feedwater Pressure 45 psi Maximum Feedwater Pressure 80 psi Maximum Working Pressure 150 psi Operating Feedwater Temperature 41-113 °F (5-45 °C) pH Range 6�0–9�0 Maximum Flow Rate 15 GPM / 900 GPH Filter Life Cycle 6–12 Months... -
Page 5: Pre-Installation
Pre-Installation • This filtration system should be installed on the main water supply line near where it enters the house but after the main shut-off valve for the whole house� • If your main water supply line branches off to indoor and outdoor lines, you may decide to install the filtration system on the indoor line if that’s the only water you want filtered�... - Page 6 Before Reversing Filter Order: After Reversing Filter Order: • Remove the packaged filters from the filter housings and set them aside in a safe place� Reinstall the empty filter housings� Hand tighten, then use the filter wrench to securely connect� You have successfully reversed the filter order of the filtration system�...
-
Page 7: Installation Overview
Installation Overview BYPASS WATER FLOW WATER FLOW SHUTOFF SHUTOFF VALVE VALVE STAGE 1 STAGE 2 STAGE 3 Installing the Whole House Filtration System IMPORTANT: Installation of this system requires draining your home’s entire plumbing system and shutting down your water heater� Additionally, it may include installing components like a ground jumper wire and pressure reduction valve�... -
Page 8: Installing Filters
Installing Filters • Remove filter housings from bracket� Rinse thoroughly to remove any dirt or dust that may have collected� Dry with a clean cloth� • With clean hands, carefully remove all wrapping and labels from each filter� There is a raised alignment stand at the bottom of each housing�... -
Page 9: Restarting Water Flow And Flushing Filters
RFCTY4520GAC RFCTY45205CTO RFCTY4520KDF RFCTY4520PHO RFCTY45205IMR 4.5” x 20” 4.5” x 20” 4.5” x 20” 4.5” x 20” 4.5” x 20” 4.5” x 20” FSWH300STD Stage 1 Stage 2 Stage 3 — — — FSWH300KDF Stage 1 — Stage 3 Stage 2 —... -
Page 10: Filter Specifications
Filter Specifications Contaminant Filter Type Material Life Cycle** Reduction* 5-micron Layered pure PP Rust, silt, color, 6–12 months / Sediment polypropylene (PP) microthread suspended solids 100,000 Gallons PP shell, silicon Granular activated ring, coconut husk Chlorine, off-tastes, 6–12 Months / carbon granular activated odors, VOCs... -
Page 11: Cleaning Filter Housings
Cleaning Filter Housings We recommend cleaning the filter housings at least once a year� To do this, gather the following supplies: – 1 tablespoon household bleach – 1 gallon warm water – Clean cloths or rags – Protective gloves • Create a cleaning solution by mixing 1 tablespoon of household bleach with one gallon of warm water�... -
Page 12: Warranty
Warranty Brio (“Vendor”) warrants to the original purchaser of the Brio Water Filtration System (the “Product”), and to no other person, that if the Product is assembled and operated in accordance with the printed instructions accompanying it, then for a period of one (1) year from the date of purchase, all parts in the Product shall be free from defects in material and workmanship�... - Page 16 WWW.BRIOWATER.COM ©2025 Brio Water Technology, Inc.
