Summary of Contents for BRIO amphora ROP100

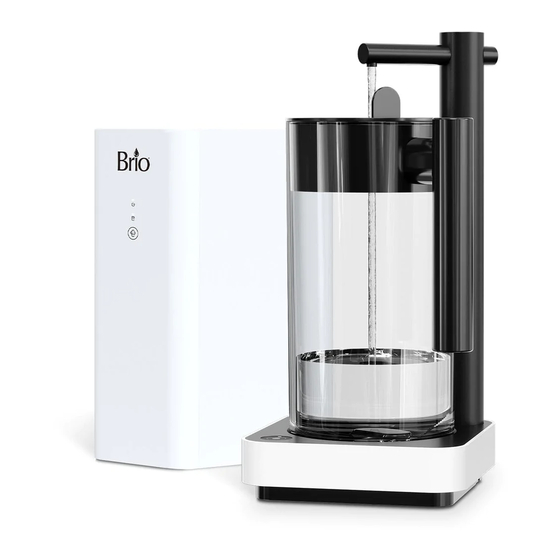

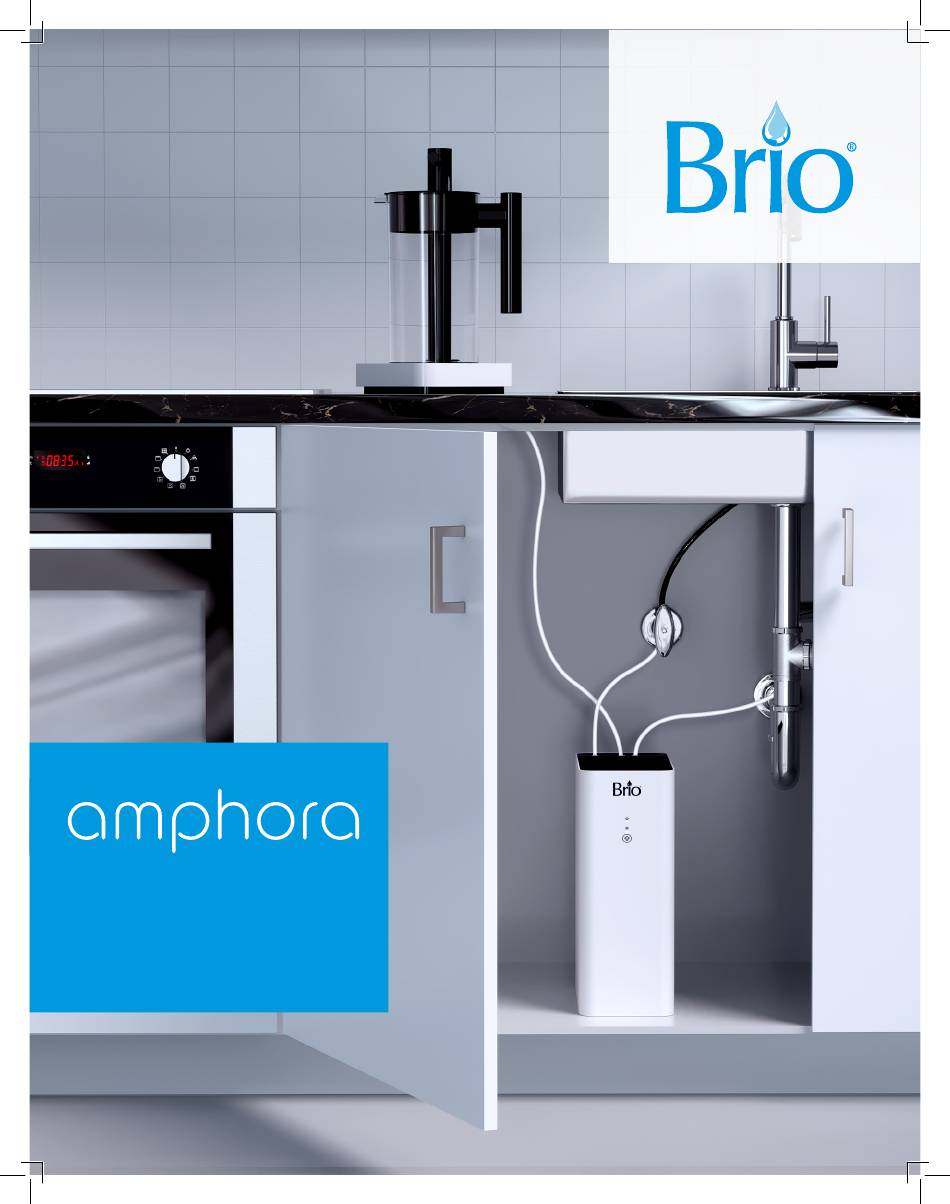

- Page 1 RO Filtration System with Artesian Pitcher Setup Manual Model No.: ROP100...
-
Page 2: Table Of Contents
Table of Contents Safety Information � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3 Intended Use �... -
Page 3: Safety Information
Safety Information WARNING: To reduce risk of injury and property damage, you must read this entire guide before assembling, installing, and operating the filtration system. WARNING: In order to ensure safety and to avoid injury and property loss to you and others, please be sure to follow the following safety precautions. -
Page 4: Intended Use
Intended Use This dispenser is intended to be used in household and similar applications such as: • Staff kitchen areas in shops, offices, and other working environments • Farm houses • Hotels and other hospitality venues • Catering events and similar non-retail applications Package Contents Part Description Part Description... -
Page 5: Product Features/Description
Product Features/Description Item Description Item Description Power LED Pitcher base Filter replacement indicator Water dispenser Filter reset button Pitcher lid placement indicator Water processing and filter life indicator Water connection flip lid Water processing switch/Manual water intake button Liquid level sensor Pitcher locating groove Pitcher lid placement groove Materials Needed... -
Page 6: Installation Overview
Installation Overview... -
Page 7: Installation
Installation 1� Connect to the Cold Water Supply CAUTION: DO NOT CONNECT THIS WATER LINE TO A HOT WATER SUPPLY LINE. The water supply to the unit MUST be from the COLD WATER LINE. Using HOT WATER will severely damage your filters. A�... -
Page 8: Install The Reverse Osmosis Drain Saddle
2� Install the Reverse Osmosis Drain Saddle The “RO” filter assembly requires a drain line connection to be installed, which removes rejected water to the sewer. The drain saddle connects the drain line from the dispenser to your drain pipe. The drain saddle is designed to fit around a standard 1.5 in. -
Page 9: Install The Pitcher
3� Install the Pitcher IMPORTANT: If your sink does not have a second faucet hole, please contact a licensed professional to create one. Do NOT attempt to drill a faucet hole yourself as this may damage the sink. A� Remove the screw nut (1) and directional cap (2) from the adapter (I) and insert the adapter (I) into the mounting hole on your sink/counter. -
Page 10: Make The Connections
4� Make the Connections A� Connect the three colored tubes (D, E, and F) to the engine (A). Operation Startup and Flushing Water Flush the filter in the engine (A) upon first use and each time you change the filter. 1�... -
Page 11: Maintenance
Maintenance Filter Specifications Suggested Filter Name Filter Layer Function Lifespan Integral Filters mud, sand, rust, suspended solid, and other large- 12-24 Composite Filter grained substances. months RO Membrane Filters organics (trichloromethane and carbon tetrachloride) and heavy metals (arsenic, lead, and cadmium). Post-positional Filters organics, remaining chlorine, and odor. -
Page 12: Routine Maintenance
Routine Maintenance • Periodically check all connections for leaks. • Replace any connectors and filter housings with proper replacement parts. Contact Customer Service to order replacement parts. • Always use the proper replacement filter with the correct size and length. •... -
Page 13: Troubleshooting
Troubleshooting Problem Probable Cause Solution The product will not dispense • Liquid level sensor inside the • Check to see if the liquid level water or stop dispensing pitcher lid is blocked. sensor is blocked. If there is water. blockage, remove the blockage. •... -
Page 14: Warranty
Warranty Brio (“Vendor”) warrants to the original purchaser of the Brio Water Filtration System (the “Product”), and to no other person, that if the Product is assembled and operated in accordance with the printed instructions accompanying it, then for a period of one (1) year from the date of purchase, all parts in the Product shall be free from defects in material and workmanship. - Page 15 Culpa quam sedisinimus eatur as resseque natesto reperunt. Sus estis pratus. Pit es as et quisque praere alit veria sitatis autectam et es alibusa quaspis aliquam, is ne lam voluptibus sam, ipsant, cus reiunt harit faccupiende et omnissit atiur solorpor moditin ctecus as sit volo bea corest, iumeniet audist adio veliquist, ut lant, sim volum solut et et quam undus aspit doluptio omnim eostrum quidelit, velisci volest, odignim quiae dolo tem quatem si doluptatem quam volore, nem as ratem quiam et ad maionsequi andessum quis dias delis anim quae volorep uditiss itatem re essequatur simi, odit et facea volorem...
- Page 16 Contact Us Call: +1 844-257-4103 ©2020 DTWUSA...
