BRIO ROSL500 Setup Manual

Tankless 2:1 ro filtration system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
G10-U

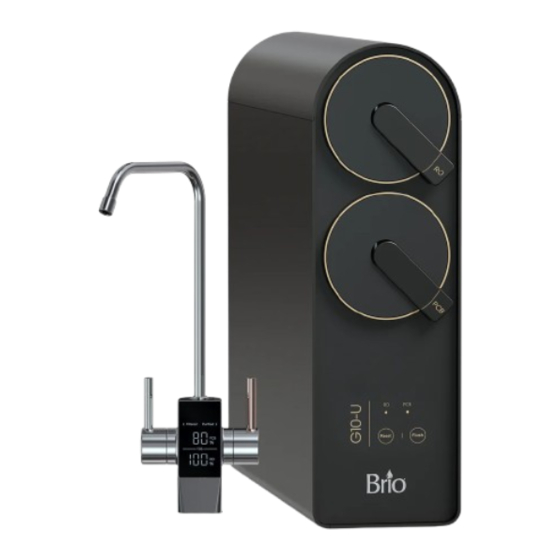

Tankless 2:1 RO Filtration System
Setup Manual
Model No.: ROSL500

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROSL500 and is the answer not in the manual?

Questions and answers

Related Manuals for BRIO ROSL500

Summary of Contents for BRIO ROSL500

  • Page 1 G10-U Tankless 2:1 RO Filtration System Setup Manual Model No.: ROSL500...

  • Page 2: Table Of Contents

    Table of Contents Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Intended Use .

  • Page 3: Safety Information

    Safety Information WARNING: To reduce risk of injury and property damage, you must read this entire guide before assembling, installing, and operating this filtration system . • If the power cable is damaged, do not use . Contact Customer Service for a replacement . •...

  • Page 4: Intended Use

    Intended Use This appliance is intended to be used in household and similar applications such as: • Staff kitchen areas in shops, offices, and other working environments • Farm houses Clients in hotels, motels, and other residential type environments • Bed and breakfast type environments •...

  • Page 5: Indicator Panel Description

    Indicator Panel Description Filter indicator lights – When blinking, indicates it is time to change filters (RO or PCB). Reset button – Press to reset the system after changing filters. Flush button – Press to flush newly installed filters. Reset Flush Product Dimensions Height...

  • Page 6: Package Contents

    Package Contents Part Description Quantity Part Description Quantity Drain saddle RO filtration system RO water outlet tube Faucet Shut-off valve tube Power adapter Faucet tubing Feed water adapter 2/8 - 3/8 in .Quick PCB filter connect RO filter 2/8 in . Quick connect Plumbers tape Installation Installation Overview...

  • Page 7: Connect To The Cold Water Supply

    2 . Connect to the Cold Water Supply CAUTION: DO NOT CONNECT THIS WATER LINE TO A HOT WATER SUPPLY LINE . The water supply to the unit MUST be from the COLD WATER LINE . Using HOT WATER will severely damage your filters . Turn off and then disconnect the current cold water supply line.

  • Page 8: Make The Reverse Osmosis Waste Connections

    3 . Make the Reverse Osmosis Waste Connections The “RO” filter assembly requires a drain line connection to be installed, which removes rejected water to the sewer . The drain saddle connects the drain line from the dispenser to your drain pipe . The drain saddle is designed to fit around a standard 1 .5 in .

  • Page 9: Install The Faucet

    4 . Install the faucet IMPORTANT: If your sink does not have a second faucet hole, please contact a licensed professional to create one . Do NOT attempt to drill a faucet hole yourself as this may damage the sink . Ensure that you have a faucet mounting hole in your sink or sink countertop for this faucet.

  • Page 10: Complete The Installation

    5 . Complete the Installation Connect the shut off valve tube (J) to the inlet water connection (1). Connect the faucet tubing (K) connected to the 2/8 in. quick connect (M) to the filtered water connection (2). Connect the faucet tubing (K) connected to the 2/8 in.

  • Page 11: Troubleshooting

    Troubleshooting Problem Probable cause Solution The filter is generating The filter can generate a light noise This is normal . a light noise during during operation . operation . The water output • The filter is jammed . • Flush or replace the filter . volume has dropped .

  • Page 12: Filter Replacement Schedule

    Filter Replacement Schedule Filter Type Replacement Schedule Function PCB Composite Filter 12 months Removes mud, sand, rust, suspended (PAC and Carbon) materials, residual chlorine, and abnormal flavor from water . RO Filter 24 months Removes up to 99% of contaminants including arsenic, lead, fluoride, heavy metals and more .

  • Page 13: Warranty

    Warranty Brio (“Vendor”) warrants to the original purchaser of the Brio Water Filters (the “Product”), and to no other person, that if the Product is assembled and operated in accordance with the printed instructions accompanying it, then for a period of one (1) year from the date of purchase, all parts in the Product shall be free from defects in material and workmanship .
  • Page 14 Contact Us Call: +1 844-257-4103 ©2022 Brio Water Technology, Inc.
