Summary of Contents for BRIO FUS300R

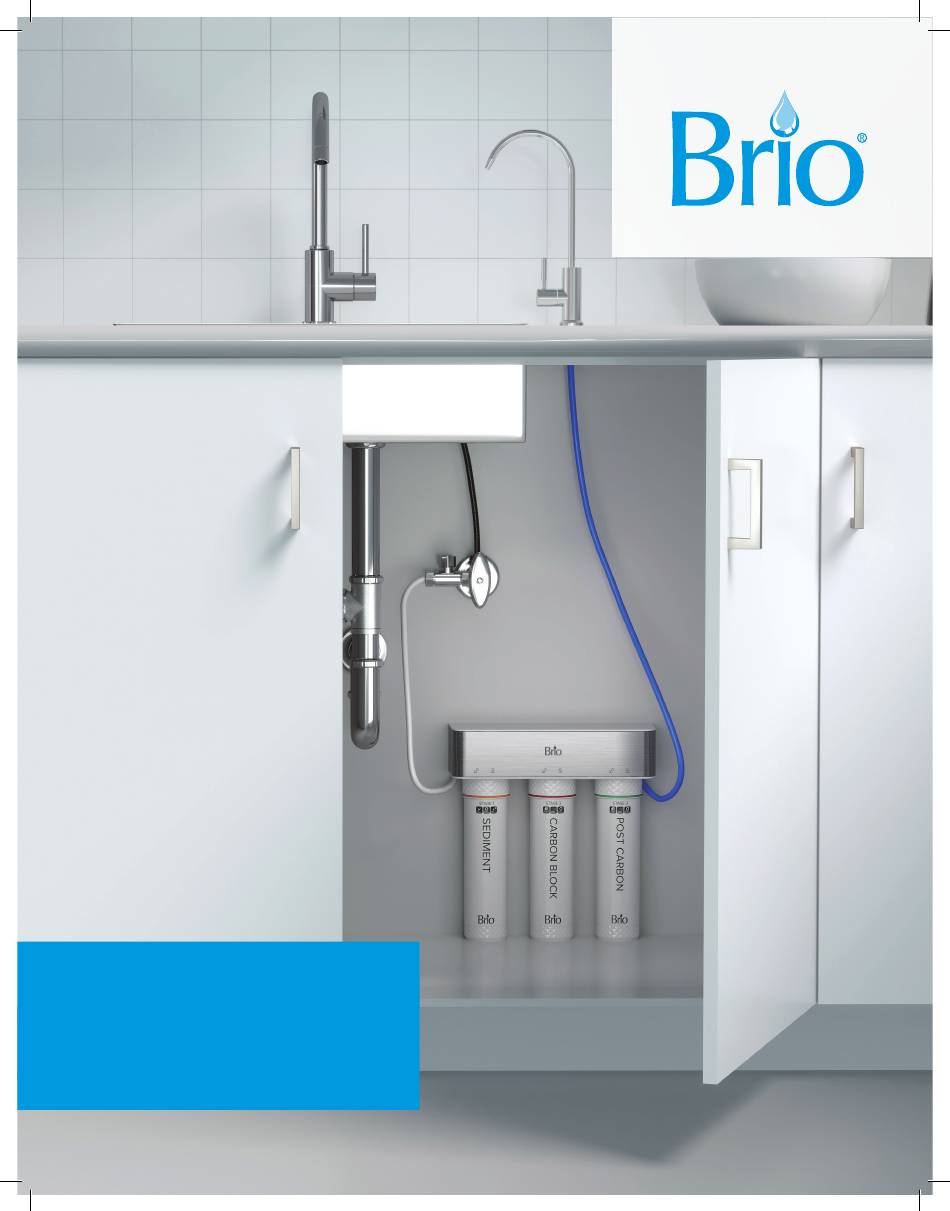

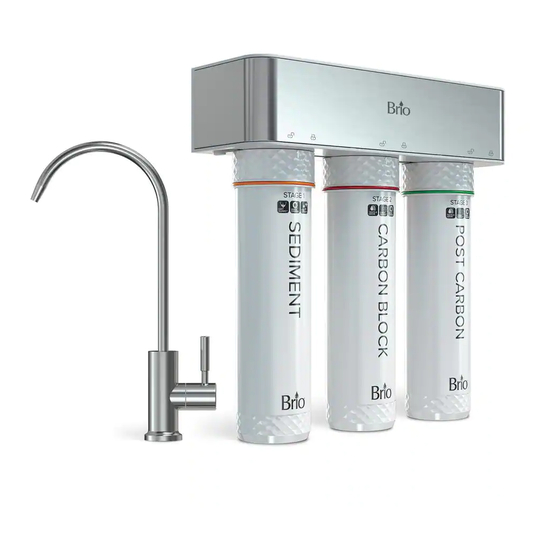

- Page 1 3-Stage Under Sink Filtration System Instruction Manual Model No.: FUS300R...
-
Page 2: Table Of Contents
Table of Contents Safety Information � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3 Intended Use �... -
Page 3: Safety Information
Safety Information WARNING: To reduce risk of injury and property damage, you must read this entire guide before assembling, installing, and operating the filtration system. • Installation needs to comply with state and local laws and regulations. • Product must be installed indoors. Do NOT use outdoors. •... -
Page 4: Package Contents
Package Contents Part Description Part Description Top cover PE tubing, 1/4 in. (qty. 2) Transparent cover plate Quick coupling, 1/4 in. (qty. 2) Filter housing Seal tape Indicator panel Feed water adapter Battery CR2450 Locking clips (qty. 2) Filters (qty. 3) Tube cutter Filtration faucet... -
Page 5: Materials Needed
Materials Needed Adjustable wrench Power drill Drill bit (1 in.) Towel or bucket Installation Overview Part Description Part Description Sediment filter (stage 1) Inlet water tubing (white) Carbon block filter (stage 2) Outlet water tubing (blue) Post carbon filter (stage 3) Existing faucet Cold water supply Filtration faucet... -
Page 6: Installation
Installation 1� Connect to the Cold Water Supply CAUTION: DO NOT CONNECT THIS WATER LINE TO A HOT WATER SUPPLY LINE. The water supply to the unit MUST be from the COLD WATER LINE. Using HOT WATER will severely damage the filters. A�... -
Page 7: Install The Filtration Faucet
2� Install the Filtration Faucet NOTE: If there is no hole in the sink or countertop for the filtration faucet stem, drill a 1 in. hole or use the hole for the soap dispenser. A� Insert the faucet stem (10) through the O-ring (11) and into the hole in the sink or countertop. -
Page 8: Install The Battery
4� Install the Battery A� Lift off the top cover (A) of the filter housing and remove the transparent cover plate (B). B� Insert the battery (E) into the indicator panel (D). The positive side of the battery should be facing outward. C�... -
Page 9: Operation
Operation Operational Specifications Minimum 39 °F (4 °C) Maximum 100 °F (38 °C) Operating Temperature Minimum 30 psi (0.20 MPa) Maximum 100 psi (0.69 MPa) Operating Pressure Minimum 2 Maximum 11 pH Parameters Maximum 0.2 ppm Iron < 1800 ppm TDS (Total Dissolved Solids) <... -
Page 10: Maintenance
Maintenance Replace the Filters Replace the filters every 6 to 12 months or 950 gallons (3600 liters), whichever comes first. The red LED light on the indicator panel flashes to indicate the filter life has expired. 1� Turn off the cold water supply valve. 2�... -
Page 11: Filter Specifications
Filter Specifications Always use proper replacement filter cartridges. Refer to the table below for filter replacement part numbers and specifications. Stage 1 – Sediment Filter Stage 2 – Carbon Block Filter Stage 3 - Post Carbon Filter (Sediment, dirt, and rust removal) (Particles as small as 0.5 microns (Residual taste and odor removal) removal, including lead) -
Page 12: Troubleshooting
Troubleshooting Problem Probable Cause Solution The water has a black or dark The system may not have been Properly flush the system. See appearance. properly flushed. “5. Flush the System” on page 8. The system is noisy. There is an air gap in the filtration The noise will disappear after system faucet. -
Page 13: Warranty
Warranty Brio (“Vendor”) warrants to the original purchaser of the Brio Water Filtration System (the “Product”), and to no other person, that if the Product is assembled and operated in accordance with the printed instructions accompanying it, then for a period of one (1) year from the date of purchase, all parts in the Product shall be free from defects in material and workmanship. - Page 14 Contact Us Call: +1 844-257-4103 ©2022 Brio Water Technology, Inc.
