Installation Instructions

1

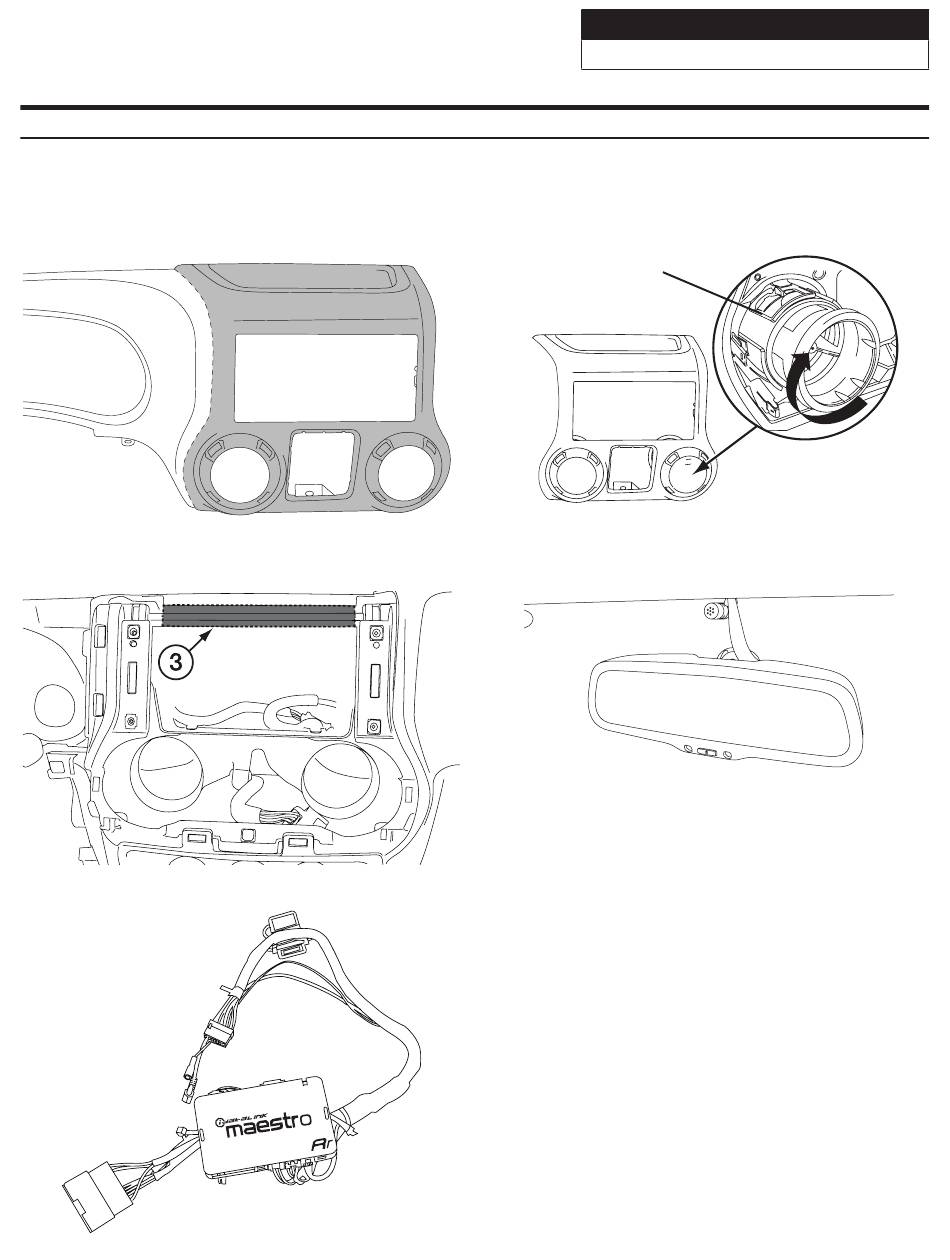

The factory dash panel needs to be trimmed to
allow the new i109-WRA bezel to fit into place.
Remove the highlighted area by cutting along the
dashed line.
3
Use a cutting tool to trim the highlighted area
shown below.
5
Attach iDatalink Maestro to main harness.
WRANGLER
2
Remove the vents from the radio section on the
OEM dash panel by pressing down on the lock tab
and turning right. Mount vents on to the i109-WRA
bezel.
Lock tab
4
Mount the microphone as illustrated and run the
cable to the radio cavity.
Jeep Wrangler
˜ 8/13

Rear view
