Linear Technology LTC2470 Demo Manual

Description
Demonstration circuit 1628A features the
16-bit high performance Δ∑ analog-to-digital converter
(ADC) with an SPI interface. The input is unipolar with a range
of 0V to 1.25V. The modulator's proprietary sampling tech-
nique reduces the average input current to less than 50nA–
orders of magnitude lower than typical Δ∑ ADCs.
DC1628A is a member of Linear Technology's QuikEval™
family of demonstration boards. It is designed to allow easy
evaluation of the LTC2470 and may be connected directly
to the target application's analog signals while using the
INPUT
Selectable 208sps/833sps 16-Bit,
Single-Ended, D∑ ADC with SPI Interface
LTC 2470, a
®

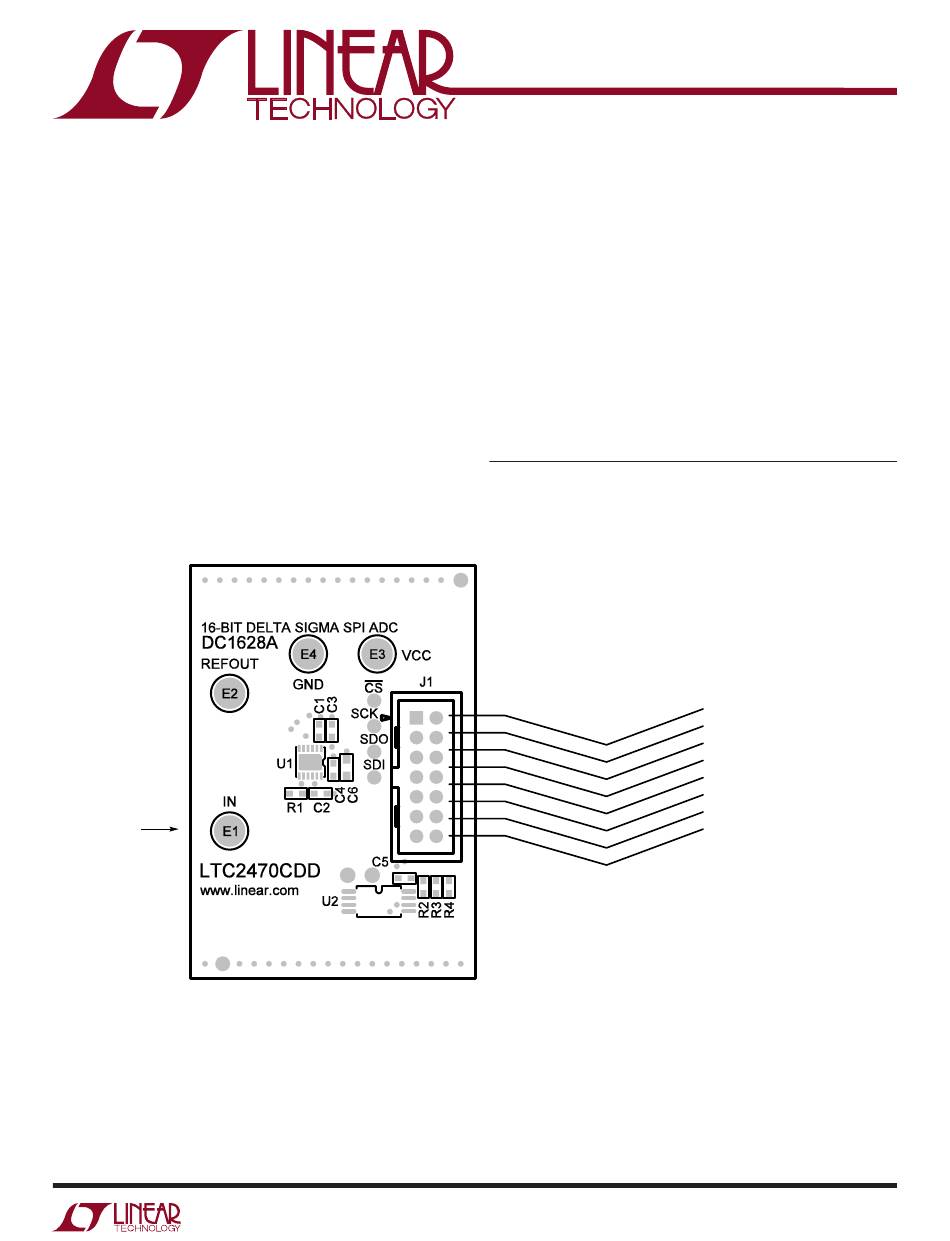

Figure 1. Proper Measurement Equipment Setup
DEMO MANUAL DC1628A
DC590 USB Serial Controller board and supplied software
to measure performance. The exposed ground planes allow
proper grounding to prototype circuitry. After evaluating
with Linear Technology's software, the digital signals can
be connected to the end application's processor/controller
for development of the serial interface.
Design files for this circuit board are available at
http://www.linear.com/demo/1628
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and
QuikEval is a trademark of Linear Technology Corporation. All other trademarks are the property
of their respective owners.
LTC2470
RIBBON CABLE
TO DC590 CONTROLLER
dc1628afc
1
