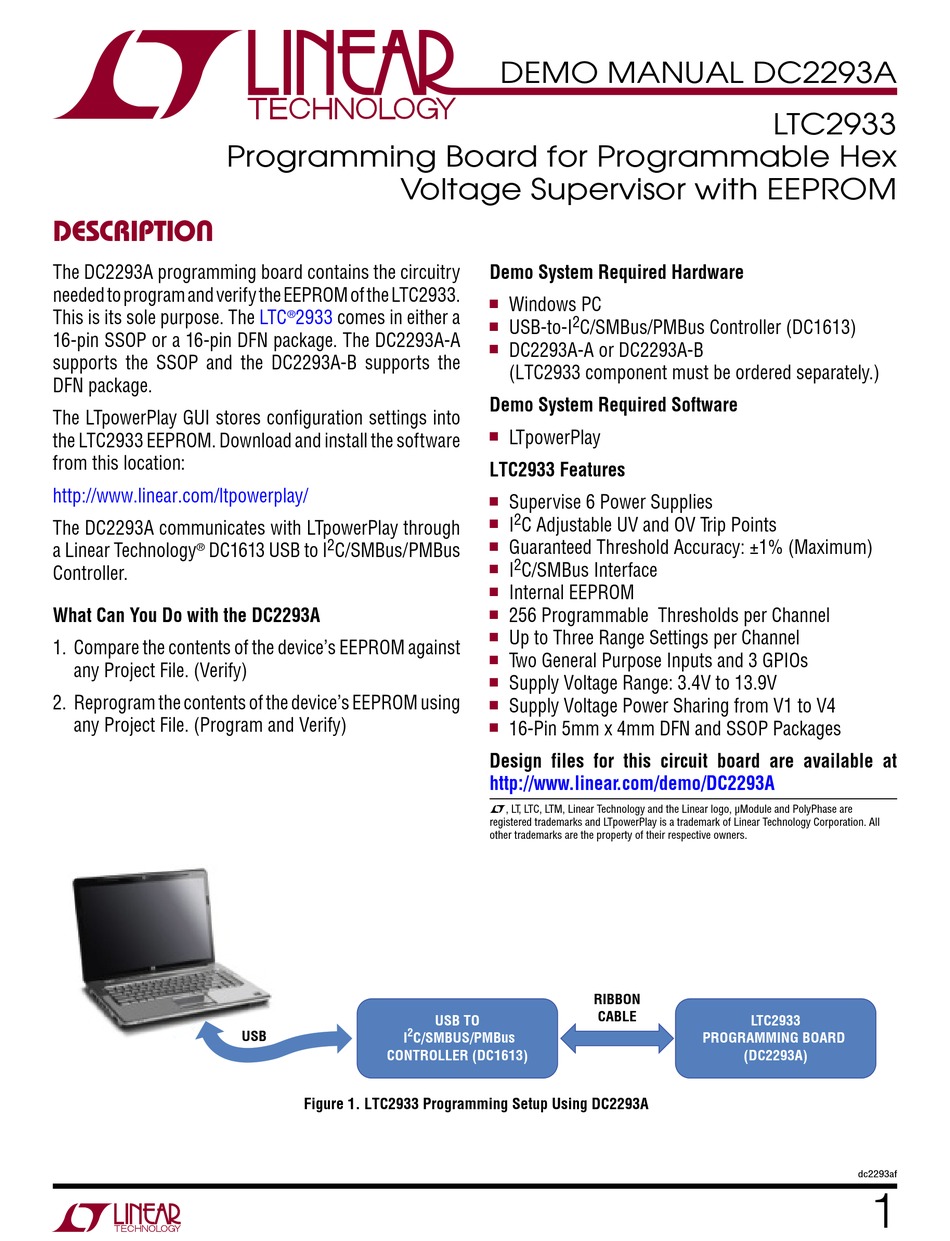

Programming Board for Programmable Hex
Description

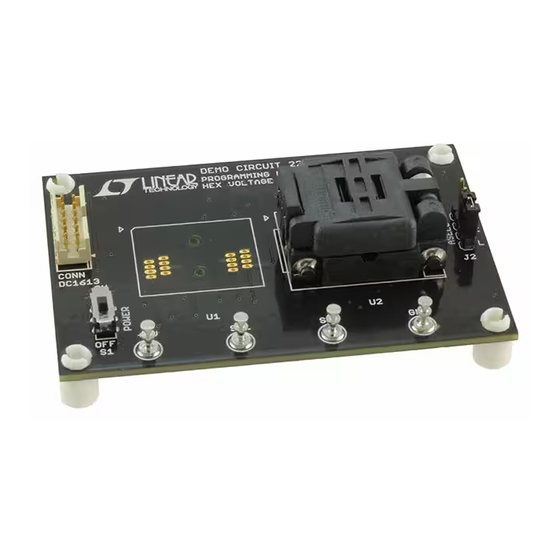

The DC2293A programming board contains the circuitry
needed to program and verify the EEPROM of the LTC2933.
This is its sole purpose. The
16-pin SSOP or a 16-pin DFN package. The DC2293A-A
supports the SSOP and the DC2293A-B supports the
DFN package.
The LTpowerPlay GUI stores configuration settings into
the LTC2933 EEPROM. Download and install the software
from this location:
http://www.linear.com/ltpowerplay/
The DC2293A communicates with LTpowerPlay through
a Linear Technology
DC1613 USB to I
®
Controller.
What Can You Do with the DC2293A
1. Compare the contents of the device's EEPROM against
any Project File. (Verify)
2. Reprogram the contents of the device's EEPROM using
any Project File. (Program and Verify)
Voltage Supervisor with EEPROM
LTC
2933
comes in either a
®
2
C/SMBus/PMBus
2
USB
I
C/SMBUS/PMBus
CONTROLLER (DC1613)
Figure 1. LTC2933 Programming Setup Using DC2293A
DEMO MANUAL DC2293A
Demo System Required Hardware
Windows PC
n
2
USB-to-I
C/SMBus/PMBus Controller (DC1613)
n
DC2293A-A or DC2293A-B
n
(LTC2933 component must be ordered separately.)
Demo System Required Software
LTpowerPlay
n
LTC2933 Features
Supervise 6 Power Supplies
n
2
I
C Adjustable UV and OV Trip Points
n
Guaranteed Threshold Accuracy: ±1% (Maximum)
n
2
I
C/SMBus Interface
n
Internal EEPROM
n
256 Programmable Thresholds per Channel
n
Up to Three Range Settings per Channel
n
Two General Purpose Inputs and 3 GPIOs
n
Supply Voltage Range: 3.4V to 13.9V
n
Supply Voltage Power Sharing from V1 to V4
n
16-Pin 5mm x 4mm DFN and SSOP Packages
n
Design files for this circuit board are available at
http://www.linear.com/demo/DC2293A
L, LT, LTC, LTM, Linear Technology and the Linear logo, µModule and PolyPhase are
registered trademarks and LTpowerPlay is a trademark of Linear Technology Corporation. All
other trademarks are the property of their respective owners.
RIBBON
CABLE
USB TO
LTC2933
LTC2933
PROGRAMMING BOARD
(DC2293A)
dc2293af
