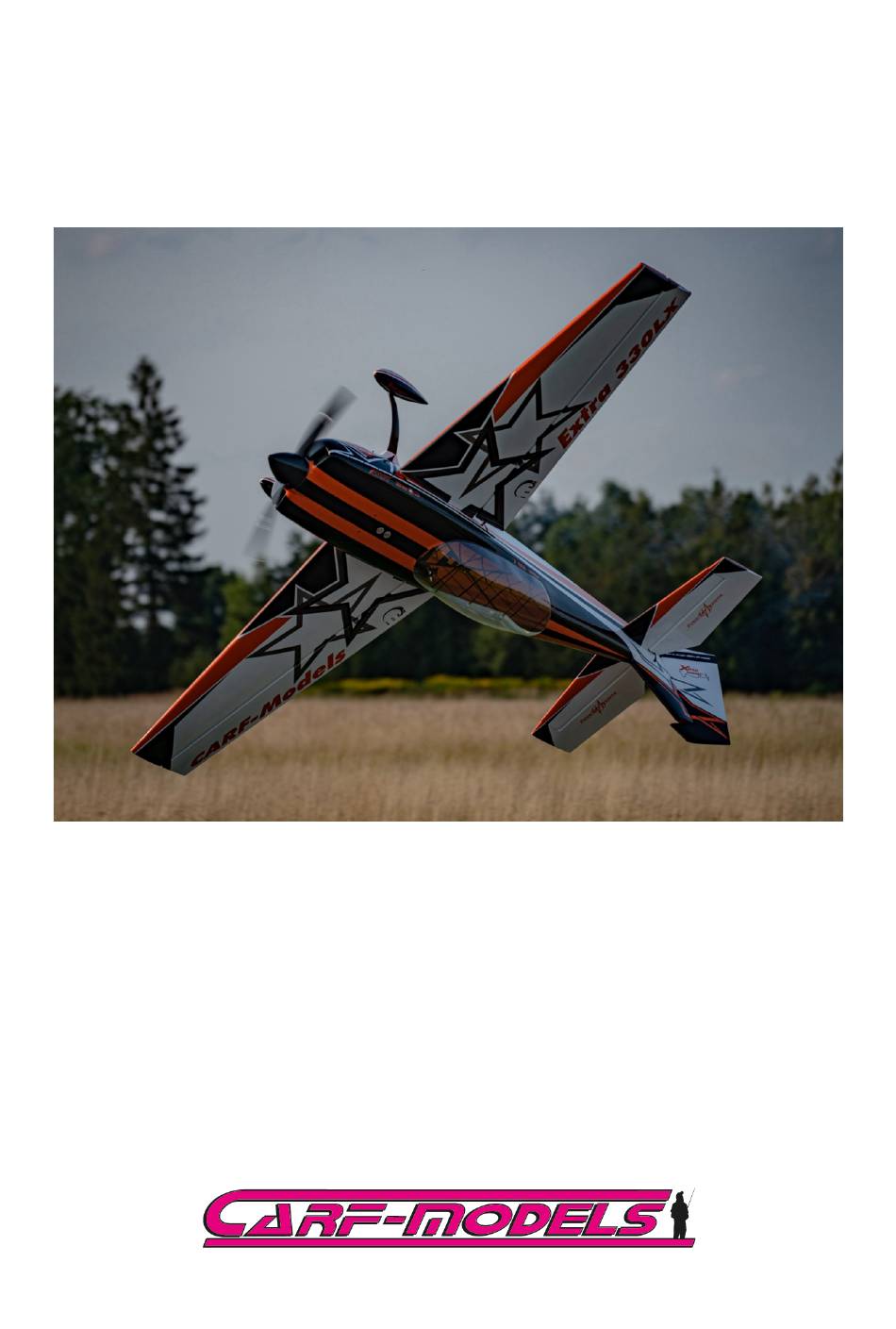

Extra330LX 3.0m V2
Instruction Manual
Even though this Extra330LX 3.0m seems to be very similar to its predecessor with just a longer
canopy and a little bigger control surfaces, by no means this is the case. It is a completely new
design, where almost nothing bases on something which had been done before. This Extra is a
real REVOLUTION in the Large Scale Aerobatic Market, something never done before,
something so special and so different that it was a real risk to start this project in the first place
- because many told us that what we were trying to do was impossible. Boy were they wrong!
The CARF-Models Extra330LX 3.0m is actually defying gravity and inertia.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Extra330LX and is the answer not in the manual?

Questions and answers

Related Manuals for Carf-Models Extra330LX

Summary of Contents for Carf-Models Extra330LX

  • Page 1 Extra330LX 3.0m V2 Instruction Manual Even though this Extra330LX 3.0m seems to be very similar to its predecessor with just a longer canopy and a little bigger control surfaces, by no means this is the case. It is a completely new design, where almost nothing bases on something which had been done before.
  • Page 2 There are a couple of things that are good to keep in mind when you are assembling your CARF-Models Extra330LX 3m. Some of them are common sense, but it doesn’t hurt to be reminded. While you are working with tools and sharp implements, be aware of others around you and the environment you are working in.
  • Page 3 About This is a quick guide to the successful installation of RC and propulsion equipment into your new Extra330LX 3.0m. We do not have a lengthy manual to bore you with how to tighten a bolt or how to clean a surface before gluing and such.

  • Page 4: What Do You Need

    An expample of the basic and main accessories required… This is list of required products to complete your Extra330LX 3.0m KIT. This list only is a recommendation of what to equip your airplane with. There is no reason similar products from other brands cannot be used in this plane.
  • Page 5 Build Description Wings Make sure the servos are tight on the mounting plate (16x allen bolt M3) • Drill a hole between the servos and place a rubber grommet to put the servo wire through • The carbon arm needs to be placed below the actual servo arm •...
  • Page 6 Wing Connector As shown in the picture before you can use a Multiplex plug as well as other types of connectors for the • wing (plugs, screws and washers not included) Stab The elevators are moved by a large bell crank in the tail of the airplane. Install and gang the two elevator servos following the guidelines given in the previous chapter for the •...
  • Page 7 Rudder Servo installation • Install and gang the two rudder servos following the guidelines given in the previous chapter for the ailerons and elevators with the included linkage hardware (it’s important that the two servos won’t work against each other! = Servomatching) •...
  • Page 8 Rudder cable installation Even tho this pictures show the Extra330LX 2.6m, it’s exactly the same procedure with this Extra330LX 3.0m V2 The rudder is connected via a rather traditional pull/pull setup (no crossover of the cables). The exit hole for the rudder wire already should be installed by the factory.
  • Page 9 Engine, Canister, Spinner, Prop & Fuel Tank installation Engine installation The firewall is not set with the prefect offset to match the cowling • Special standoffs are needed for the engine mount (different standoffs for different engines) • • We recommend to stand the plane up on its tail with the upper half of the cowling bolted Then use the engine with your standoffs and the 6”...
  • Page 10 Canister installation • The KIT has no canister mount included Take your time to create a mount which should be placed in the middle of the canisters (in the best case • this position is at the rear of the gear mount •...
  • Page 11 • If you are going to use stock mufflers please just install them to your engine and cut the two holes into the lower cowling ⇩ Installation of stock mufflers ⇩ If you want to install your ignition switch or smoke pump on the muffler compartment later, you’ll need •...

  • Page 12: Propeller And Spinner Installation

    Propeller and Spinner installation After you have drilled the spinner backplate as well as the propeller you place them on the crankshaft • You should be able to screw every single screw by hand until they are all in (if that’s not possible you •...
  • Page 13 Throttle Servo, Ignition, Baffling & Air Exit Throttle Servo installation ⇩ For most standard engines ⇩ • Create a servo slow with a wood frame into the muffler compartment Place your throttle Servo in this servo slot and screw it with 4x Servo Screws from your Servo •...
  • Page 14 Ignition installation Take a small wood board more less the same size as your ignition and glue it to the top inside the fuselage front or • on the left or right side of the firewall (at the inside) • Drill two slots on the left and right side of your glued board for a strap of welcro Another option is two drill two approx.
  • Page 15 Baffling • You can just use some soft styrofoam like epp to create easy bafflings which will adjust to the cylinders because of the cylinder temperature (very useful for two cylinder engines) • This is the best and easiest way to create bafflings for the cylinders and the carburator •...
  • Page 16 Air Inlets These inlets are very important if you’re using the ZDZ 195 engine • The air coming through the inlets will bring fresh air to the rear carburator of the engine • This is essential for the performance of the ZDZ 195 engine! Landing Gear, Gear Cuffs, Wheels, Wheel Pants &...
  • Page 17 Gear Cuffs • Next up you put the gear cuffs on and adjust them to the carbon landing gear and the fuselage (that’s another way to check if your landing gear is centered) • We recommend to either drill 8 or 12 small holes, secure the gear cuffs with 4 - 6 srews each at the bottom On each top side left &...
  • Page 18 Tail Wheel • Fix the tail wheel in position using tape and mark the spots where you need to drill two holes in your tail wheel and tail hatch • During your tail wheel is preplaced put your rudder to full deflection and mark the maximum spot of the ball link for the steering pin (at full deflection there should still be approx.

  • Page 19: Canopy Installation

    Canopy installation Even tho this pictures show the Extra330LX 2.6m canopy, it’s exactly the same procedure with the Extra330LX 3.0m V2 canopy The canopy needs to be trimmed at the cut line (we recommend trimming step by step and meanwhile •...
  • Page 20 Center of Gravity & Batteries The center of gravity should be measured at the middle of the wing tube. If the plane takes the tail • down a little bit the cg will be fine • The ignition battery can by placed on the left side of the rudder servo tray The two rx-batteries should be placed between the end of the canopy and the rear end of the elevator •...
  • Page 21 This manual has been created while the first Extra330LX’s 3.0m V2 have been test flown. We have made subsequent changes in the production line with whatever we found during the test flights to be improved.
  • Page 22 Hardware KIT Components Extra330LX 3.0m V2 Part Product Quantity Fuselage Allen bolt M4x12 mm (canopy lock) Allen bolt M3x10 mm (cowling) Allen bolt M4x10 mm (flat head bolt) T-Nut M4 Allen Bolt M4 x 12 mm Washer D4 mm Milled Parts...
  • Page 23 Sheet metal screws 2.9x16 mm Rudder Ball link M3 Steel cable 0.8 mmx1500 mm Allen bolt M3x20 mm Crimp tube 2.8 Stop Nut M3 Nut M3 Threaded end with hole for steel cable Aluminum clevis M3 with Pin and Clip Spare Items Plastic Ball Link M3 Plastic Ball Link M4...
