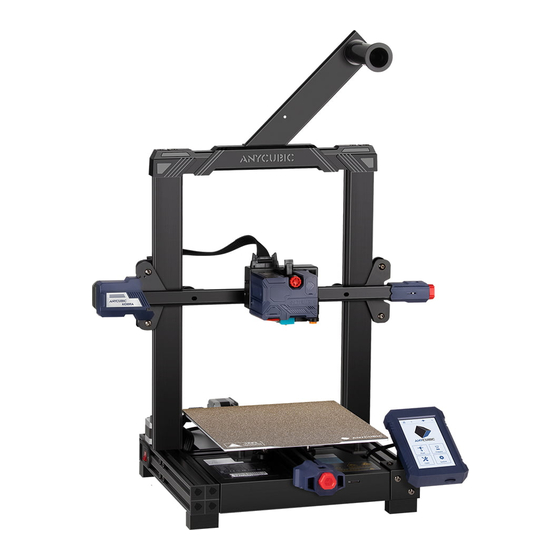

AnyCubic Kobra User Manual

Hide thumbs Also See for Kobra:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Kobra and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AnyCubic Kobra

Summary of Contents for AnyCubic Kobra

  • Page 2 Dear customer, Thank you for choosing ANYCUBIC products. Maybe you are familiar with 3D printing technology or have purchased ANYCUBIC printers before, but we still highly recommend that you read this manual carefully. The installation techniques and precautions in this manual can help you avoid any unnecessary damage or frustration.

  • Page 3: Table Of Contents

    Contents Safety Instructions Technical Specification Packing List Product Overview Menu Directory Installation Check Before Use Leveling Loading Filament Printing Models Removing Filament Introduction to Slicing Software Resume from Outage Maintenance Troubleshooting...

  • Page 4: Safety Instructions

    It is recommended to use protection glasses when cleaning/sanding the printed models to avoid small particles in eyes. Keep the Anycubic 3D printer and its accessories out of the reach of children. Vapors or fumes may be irritating at operating temperature. Always use the Anycubic 3D printer in an open and well ventilated area.

  • Page 5: Technical Specification

    Technical Specification Printing Technology FDM (Fused Deposition Modeling) Build Size 220 mm(L) × 220 mm(W) × 250 mm(H) Layer Thickness 0.05 - 0.3 mm Positioning Accuracy X / Y / Z 0.0125 / 0.0125 / 0.00125 mm Extruder Quantity Single Nozzle Diameter 0.4 mm Print Speed...
  • Page 6 Technical Specification Software Slicing Software Cura, Simplify3D, Repetier-HOST Software Input Formats .STL, .OBJ, .JPG, .PNG Software Output Formats GCode Connectivity Memory card; Data cable (expert users only) Electrical Power Input 110 V / 220 V AC, 50 / 60 Hz Rated Power 400 W Physical Dimensions...

  • Page 7: Packing List

    Packing List Spring Washers (4PCS) Frame Base M5 x 45 Screws (4PCS) M5 x 14 Screw (1PCS) Touchscreen Print Head Filament Holder M5 x 6 Screws (2PCS) M3 x 6 Screws (4PCS) M4 x 6 Screws (3PCS) Spare Nozzle R Type Cable Clamp Card Reader Spare Teflon Tube Power Cord...

  • Page 8: Product Overview

    Product Overview Front Filament holder Print head Proximity switch Printing platform Touchscreen Y belt tensioner Data cable port Memory card slot...
  • Page 9 Product Overview Back Lead screw X belt tensioner X motor Z motor Voltage regulator Power switch Y motor...

  • Page 10: Menu Directory

    Menu Directory Main menu...
  • Page 11 Menu Directory Print File List: Return to main menu File list Refresh the list Page up Page down Print the selected file in memory card Prepare Leveling: Click to heat the print head to target temp and level the platform automatically Click to fine-tune the distance between nozzle and platform after auto-leveling...
  • Page 12 Menu Directory Preheat: Click to set extrusion temp (0-260℃) Click to set bed temp (0-110℃) Display current / target Display current / target temp of nozzle temp of bed Click to preheat PLA Click to preheat PLA Filament: 23/230 Display current / target temp of extrusion Click to automatically heat the print head to target temp, and...
  • Page 13 Menu Directory Tool Move Axis: Set the step distance of motor Move the platform forward Move the print head up Move print head to the left Move print head to the right Move the platform back Move the print head down Click to move the print head to the zero position in the X axis direction Click to move the platform to the...
  • Page 14 Menu Directory Speed: Click to set fan speed(0-100%) Increase fan speed Decrease fan speed Click to set print rate(0-500%) Increase print rate Decrease print rate Motor: Disable all motors (only valid when machine is not printing). System Language: Change language (English / Chinese). Voice: Turn on/off the screen sound.

  • Page 15: Installation

    If there are some tiny scratches on the aluminum beams or slight unevenness on the platform, it is normal and won’t affect the printing quality. Thank you very much for your kind understanding. Team ANYCUBIC...
  • Page 16 Installation 1. Cut off the zip tie on the X-axis bracket. Cut off the zip tie 2. Turn the coupler to raise the X axis. (Back side) Coupler...
  • Page 17 Installation 3. Install the frame. (Front side) Make sure the Z aluminum beam is accurately mounted onto the groove of the base aluminum beam. Spring washer M5 x 45 Screw...
  • Page 18 Installation 4. Install the print head. (Front side) M3 x 6 Screw 5. Install the screen. (Front side) M5 x 14 Screw M5 x 6 Screw...
  • Page 19 Installation 6. Install the filament holder. (Back side) M4 x 6 Screw...
  • Page 20 Installation 7. Wiring: connect all these cables to their ports following the corresponding label. （The cables are packed under the heated bed, please tear off the tape and pull out the cables carefully.) Do not connect or disconnect any cables when the machine is powered on. Do not twist the print head cable.
  • Page 21 Installation 8. Secure the print head cable to the bracket with an R type cable clamp and one M4 X 6 screw. (Back side) M4 x 6 Screw...

  • Page 22: Check Before Use

    Check Before Use 1. D-shape wheels D-shape wheels of the base and print head may be loose due to transportation. After assembly, place the printer on a flat desktop and check the wheels. ① X axis: Shake the print head manually. If it wobbles, tighten the wheel by rotating the eccentric nut with an open-end wrench until the print head does not wobble and moves smoothly along X axis.
  • Page 23 Check Before Use ② Rotating the eccentric nuts with an open-end wrench until the wheels no longer turn freely and move smoothly along Z axis. ③ Tighten the screws after adjusting the wheels. ③ Y axis: Shake the printing platform manually. If it wobbles, tighten the two wheels by rotating the eccentric nuts with an open-end wrench until the platform does not wobble and moves smoothly along Y axis.
  • Page 24 2. Belts Please tighten the belt tensioners if the belts are loose. Y-axis belt tensioner X-axis belt tensioner...

  • Page 25: Leveling

    Once leveled, it is not necessary to level every time before each printing. Anycubic Kobra supports auto-leveling, which is easy to level the platform. * Before leveling, please ensure that the platform and nozzle are clean and free of foreign matters to avoid affecting the leveling effect.
  • Page 26 Leveling 2. Before leveling, use a metal tool such as the included wrench to touch the proximity switch and the indicator will light. If the indicator still does not light after repeated touching, please contact the after-sales service. 3. Return to main menu, click Prepare → Leveling → Auto-leveling→ OK on the pop-up interface.
  • Page 27 Leveling 4. After probing the platform, put a piece of paper onto the platform, click Z offset → ＋ or — to adjust the Z-axis height until the nozzle touches the paper (feel slight drag resistance when pull the paper), then click OK .

  • Page 28: Loading Filament

    Loading Filament 1. Return to main menu, click Tools → Move Axis , click continuously to rise the print head, so that there is enough space for loading. 2. Return to main menu, click Prepare → Filament → Filament In, and the heating up interface will pop up, click “OK”.
  • Page 29 Loading Filament 3. Cut the end of the filament at a 45 degree angle and straighten the filament, then place the filament spool on the filament holder.
  • Page 30 Loading Filament 4. Check the temperature on the screen. When the nozzle reaches the target temperature, click “Filament In” again. Press the extruder handle and insert filament into filament intake until the filament is fed by the extruder and melted through the nozzle.
  • Page 31 Loading Filament Supplement: During feeding, if the extruded filament is not smooth or too thin, please adjust the extrusion force by rotating the knob as shown below. Loosen Tighten • If the filament is not extruded or extrusion is not smooth, please increase the extrusion force by tightening the knob.

  • Page 32: Printing Models

    Printing Models After the leveling and filament feeding are completed, the printing can be started. A printable file "owl.gcode" has been preloaded in the memory card and the users can print it directly. * In order to let the printer better recognize the GCode file in the memory card, you need to back up all the files in the memory card to the computer, and keep the memory card only for the GCode files.
  • Page 33 Printing Models * Before printing, the nozzle will start heating after the heated bed reaches target temperature. When the temperature reaches target value, the printer will start printing. 2. There might be three kinds of results for the first or second layer of the test print: ①...
  • Page 34 Printing Models The printing effect ① and ③ can be improved by adjust Z-offset during printing. How to adjust the Z-offset: Click Settings on printing status interface, then click “＋” or “—” of the Z- offset to adjust the distance between nozzle and printing platform and observe the printing effect.
  • Page 35 Printing Models Please adjust the Z-offset patiently until the effect likes ②. If the printing effect is still not good after multiple adjustments, please stop printing and level the platform again. The nozzle and heated bed are still at a high temperature when printing is finished.

  • Page 36: Removing Filament

    Removing filament 1. Return to main menu, click Tools → Move Axis , click continuously to rise the print head, so that there is enough space between the nozzle and platform. 2. Return to main menu, click Prepare → Filament → Filament Remove, and the heating up interface will pop up, click “OK”.
  • Page 37 Removing filament 3. Check the temperature on the screen. When the nozzle reaches the target temperature, click Filament Remove again. The extruder will extrude a few filament first and then retract it to the gear. You need to pull out the filament in time to avoid clogging.

  • Page 38: Introduction To Slicing Software

    Double click Ultimaker_Cura-4.2.1-win64, and follow the steps as shown below. * Ultimaker Cura 4.2.1 is used for example here, please refer to the memory card for the actual version. * File path: Memory card → “Files_ English_Anycubic Kobra” → “Cura” → “Windows” or “Mac”. ①...
  • Page 39 Introduction to slicing software ③ ④ ⑤ ⑥ * Printing online requires the installation of a driver, as shown below. If you don't print online, you don't need to install it.
  • Page 40 Introduction to slicing software 2. Machine Settings Upon completion of installation, the first launch of the software will display the following welcome screen. Click Get started to start the machine settings. ① ②...
  • Page 41 Introduction to slicing software ③ ④ ⑤ ⑥ ⑧ ⑦ 1.75...
  • Page 42 Import button to import the desired print profile. * Choose different parameter profiles according to different filament types. * The provided profiles only match Cura 4.2.1. * Profile path: Memory card → "Files _ English _Anycubic Kobra" → “Suggested Parameters Profiles”...
  • Page 43 Introduction to slicing software (3) Select the profile that you just imported, and then click the Activate button。...
  • Page 44 Introduction to slicing software * Note: An interface may pop up after clicking the Activate button. If so, please check the values of listed parameters. You can click Keep to keep the custom values or click Discard to enable the values in the profile.
  • Page 45 Introduction to slicing software Supplementary Explanation ① You can customize some parameters after importing the profile, but we still recommend that you use the parameters in the profile that we provide. ② The paremeter Build Plate Adhesion → Build Plate Adhesion Type needs to be set to “None”...
  • Page 46 Introduction to slicing software 4. Manipulate 3D model in Cura * Model files can be downloaded from www.anycubic.com (ANYCUBIC website) and www.thingiverse.com. (1) Click the open file button in the top left corner to import the model file or directly drag the file into the software.
  • Page 47 Introduction to slicing software Other operations: ① Press the mouse wheel and move the mouse to move the platform. ② Scroll the mouse wheel to zoom in and out the platform. ③ Right click and move the mouse to change the viewing angle. * Note: When moving the model, make sure that the model is in the printable area.
  • Page 48 Introduction to slicing software Use the layer slider and simulation view to check important parts of your 3D slice. Layer Slider...
  • Page 49 Introduction to slicing software 6. Print offline and online There are two operational modes for Anycubic Kobra: print offline and print online. • Print offline: Insert memory card into the memory card slot, click on the Home Menu “Print” to enter the file list, and print a selected file (GCode files ONLY).
  • Page 50 * Anycubic Kobra uses CH340 chip for communication. * CH340 driver file path: “Files_English_Anycubic Kobra” → “Driver_CH341”. There are two versions, Windows and Mac version. (* CH341 driver file is suitable for CH340 chip).
  • Page 51 Introduction to slicing software (2) Here we take Windows PC system for example. Double click “CH341SerSetup.exe” and follow the wizard to install it. If the driver has installed automatically in step (1), skip this step. * After the installation is completed, refer to the method in step (1) to see if the driver has been identified (no exclamation mark).

  • Page 52: Resume From Outage

    Resume from Outage In case of a power loss during printing, the machine will automatically save the printing status. After restarting, you will see the interface shown below, please click "Continue" to continue your printing or “Cancel” to cancel it.

  • Page 53: Maintenance

    Maintenance It is necessary to perform routine maintenance to the 3D printer to achieve consistent and quality results. Some maintenance suggestions are shown as below: 1. Clean the nozzle with a needle under preheating conditions. If the filament residue in the nozzle could not be cleared 100%, please replace the nozzle. 2.

  • Page 54: Troubleshooting

    Troubleshooting 1. Motor shaking or abnormal sound The motor cable are not connected properly. Please Check each connection ① and then inspect the cable routing for any faults. Drive current is too large / small (please contact customer service). ② The motor is damaged.
  • Page 55 Please check if the soft cable above the screen is loose. ① Inspect if the touchscreen has been pressed by something. ② Check if screen has cracks, if so, please contact our after sale service via ③ official website www.anycubic.com...
  • Page 56 Troubleshooting 8. T0 sensor abnormal Check the wiring of the hotend and ensure a good connection. ① Check if there is any pins bent inside the connector. ② 9. Print head move abnormal The setting of machine type in slicing software is wrong. Please see page 41 ①...
  • Page 57 Troubleshooting The printing temperature is too high, which causes the fluidity and viscosity ③ of the filament to be strong. The printing temperature needs to be set a little lower. 13. Nozzle is too low or too high when printing Nozzle is too close to the platform, resulting in insufficient extrusion of ①...
  • Page 58 ATTENTION 1. Anycubic 3D printer generates high temperature. DO NOT reach inside of the printer during operation. Contact with extruded materials may cause burns. 2. Use high temperature resistant gloves when operating the product. 3. This equipment is not suitable for use in locations where children are likely to be present.
