5.3 Emergency Reverse Switch
The red button located at the top of the rudder handle serves as the emergency reverse switch, as shown in
Figure 2-3.
When this switch is activated, the vehicle will immediately reverse direction.
Emergency reverse
switch
Magnetic key
5.4 Lift and Drop Switches, and Horn Button
The lift and drop switches, along with the horn button, are located as shown in Figure 2-4:
•
The lift button is positioned on the right side above the rudder handle. Press this switch to raise the forks.
•
The drop button is located on the left side above the rudder handle. Press this switch to lower the forks.
•
The horn button is in the center above the rudder handle. Press this switch to sound the horn.
.
5.5 Driving and Braking
The rudder handle operates in three vertical zones: A, B, and C:
• Zones A and C are braking zones. When the rudder handle is in either of these positions, the
vehicle is in a braking state.
• Zone B is the normal operating zone. When the rudder handle is in this position, the vehicle is in a
driving state.

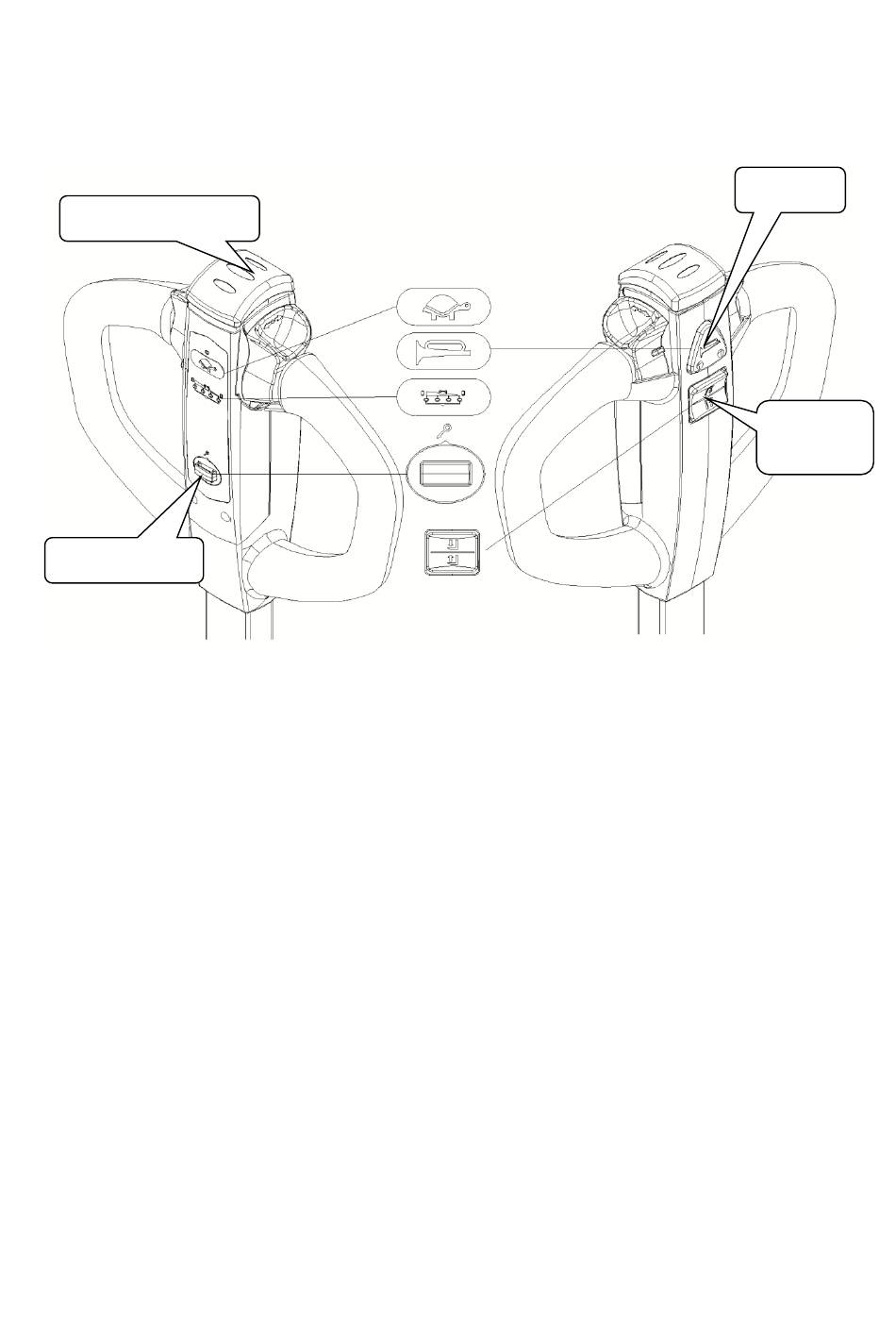

Figure 2-3
Figure 2-4
7
Horn
Rise and
fall
