Summary of Contents for EKKO EPC18Li

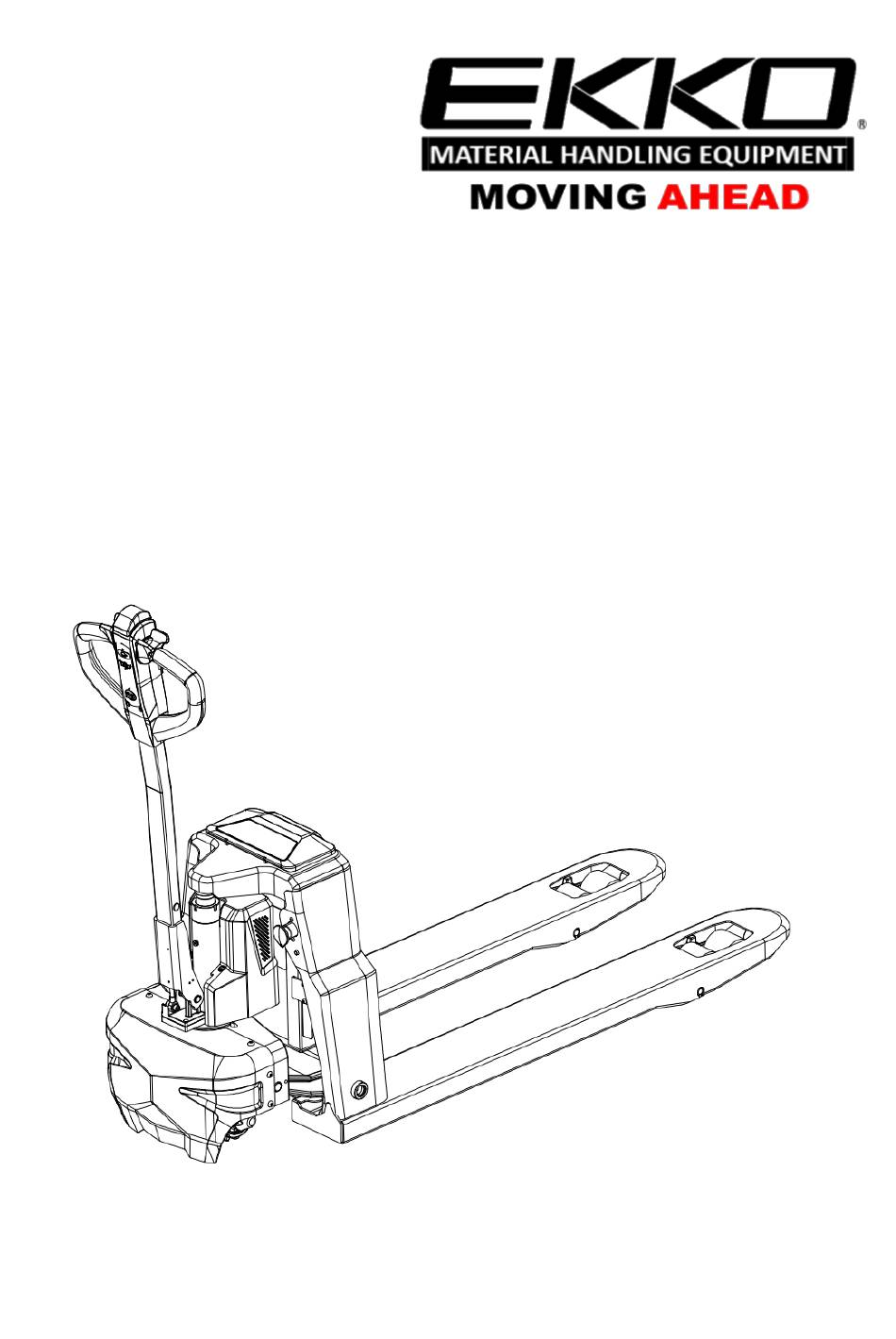

- Page 1 Operations & Maintenance Manual EPC18Li / EPC20Li /EPC25Li...
-
Page 2: Part Description
Part description 1, operation handle 2, handle lever 3, electric bin cover 4. Scram switch 5, oil pump 6, hydraulic station cover shell, 7, Fender 8, frame 9. Fork wheel (bearing wheel) - Page 3 Main performance parameters...
- Page 4 Model QBM1504 QBM2004 Model number number peculiari all-electric power power 3300 4400 Rated load Rated load Load center Load center distance distance Self-weight Self-weight (including Weight (including battery) battery) Drive Φ6.29×2.16 wheel Wheel size wheel Fork Φ3.15×2.75 Φ2.91×2.75 wheel Three supports Wheel layout Wheel layout 7.67...
- Page 5 Operation guide lift down Spin backward Spin forward Running and braking The rudder handle is divided into three sections A, B and C in the vertical plane, and the two zones A and C are the braking zones. When the rudder handle is located in zone A or zone C, the vehicle is in the braking state.
- Page 6 Handle accelerator function : Turtle speed button : Power display : Key switch : horn button...
- Page 7 Battery operating environment Keep batteries away Avoid water, Please use the Keep metal objects from heat sources, beverages, and away from the battery at -14°F ~ open flames, corrosive liquids battery box 113°F flammable and explosive gases (liquids) Battery charging environment Charging time should not exceed Please charge the BBA battery at the ambient...
- Page 8 4, if your battery charges for more than 12 hours is still not full, please stop charging and call you authorized EKKO dealer to make an appointment for maintenance. 5, In order to ensure battery life and excellent performance, please recycle between 20% and 90% of the power as far as possible.
-
Page 9: Troubleshooting
We recommend that you do your first maintenance one month after purchasing your vehicle, followed by regular maintenance checks every six months. The official EKKO authorized dealer will provide you with maintenance services to keep your vehicle in the best handling condition. - Page 10 "storage forklift parts three guarantees standard". 2, During the warranty period, the EKKO Authorized dealer will provide you with repair and...
- Page 11 replacement services. If your vehicle exceeds the "three guarantees" service period and scope, please according to the local market conditions and maintenance prices, warehousing forklift authorized service center will provide you with paid services. 3, the warranty service period of the sold products is calculated from the day of shipment of the goods.
- Page 12 Hydraulic schematic diagram QBM1504...
- Page 13 Electrical schematic diagram QBM1504...
-
Page 14: Maintenance Record
Maintenance record Date Fault Troubleshooting Date of Maintenance situation/cause situation submission personnel...
