Summary of Contents for IOGear GCS62DP

  • Page 1 Quick Start Guide DisplayPort KVM 2-Port DisplayPort KVM Switch GCS62DP PART NO. Q1391 www.iogear.com...
  • Page 2: System Requirements

    Package Contents 1 x GCS62DP 2 x USB 2.0 A to B Cable 2 x 3.5mm Audio Cable 2 x DisplayPort Cable 1 x Port Selection Remote 1 x Quick Start Guide 1 x Warranty Card System Requirements Computer • USB Type A port •...

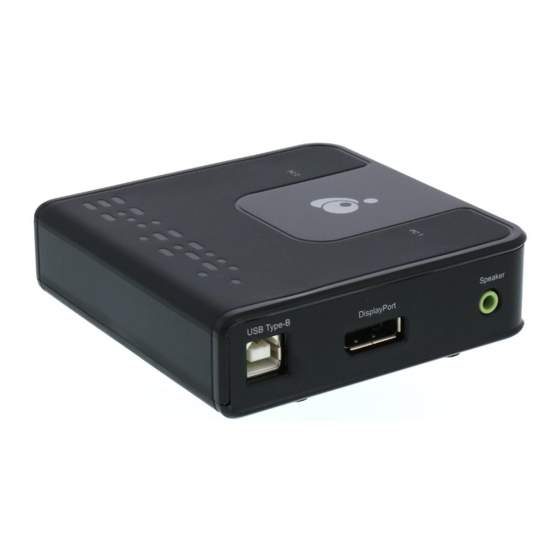

  • Page 3 Back 1. Remote Port 4. Console USB Mouse Port 2. Console DisplayPort 5. Console Audio Connection 3. Console USB Keyboard Port Side 1. CPU 1 / 2 USB Connection 2. CPU 1 / 2 DisplayPort 3. CPU 1 / 2 Audio Port USB Type-B Port Selection Remote 1.
  • Page 4: Hardware Installation

    Hardware Installation 1. Please make sure your source devices and displays are powered off before you start. Note: Make sure you select DisplayPort as the video input on your Display. 2. Connect the DisplayPort cable from your monitor to the console DisplayPort. 3.
  • Page 5: Operation

    4. If you choose to use the Port Selection Remote, plug it into the Remote Port. 5. Connect DisplayPort, USB 2.0, and Audio cables from the KVM switch to each computer. Audio DisplayPort USB 2.0 6. Turn on your computers and other devices. Operation Users have two options to switch between the two connected computers: Option 1.
  • Page 6: Firmware Update

    Connect a USB cable from any open USB port of the KVM to the USB port on the computer. Connect the power adapter from your power outlet to the KVM. Step 2 Go to www.iogear.com to download the latest available firmware or the specific firmware that you wish to upgrade the KVM to. Step 3 Shut down all the computers that are connected to the KVM.
  • Page 7 Step 7 If you have checked the “Check Firmware Version” checkbox, then the utility will check the current firmware that is on your KVM. If the current firmware is newer than the firmware that you wish to upgrade to, a window will pop up and ask if you wish to proceed.
  • Page 8: Hotkey Summary

    Hotkey Summary Function Hotkey Description [Scroll Lock], [Scroll Lock] [Enter] Switch KVM with audio 1. Change [Scroll Lock], [Scroll Lock] to [Ctrl], [Ctrl] [Scroll Lock], [Scroll Lock] [X] / [x], [Enter] 2. Press again to change back [S] / [s], [Enter] [Scroll Lock], [Scroll Lock] Switch audio only Starts Auto Scan.
  • Page 9: Compliance Information

    Disclaimers MST (Multi-Stream Transport) requires either monitors that are capable of DisplayPort 1.2 daisy-chaining, or use of a powered DisplayPort MST Hub. PC source must be DisplayPort 1.2 compliant. DisplayPort v1.1a display can be the last display in a DP v1.2 chain. DP++ (DP Dual Mode) requires use of a powered DP++ adapter.
  • Page 10: Limited Warranty

    WE’RE HERE TO HELP YOU! NEED ASSISTANCE SETTING UP THIS PRODUCT? Make sure you: 1. Visit www.iogear.com for more product information 2. Visit www.iogear.com/support for live help and product support www.iogear.com iogear.custhelp.com support@iogear.com 19641 Da Vinci, Foothill Ranch, CA 92610...
