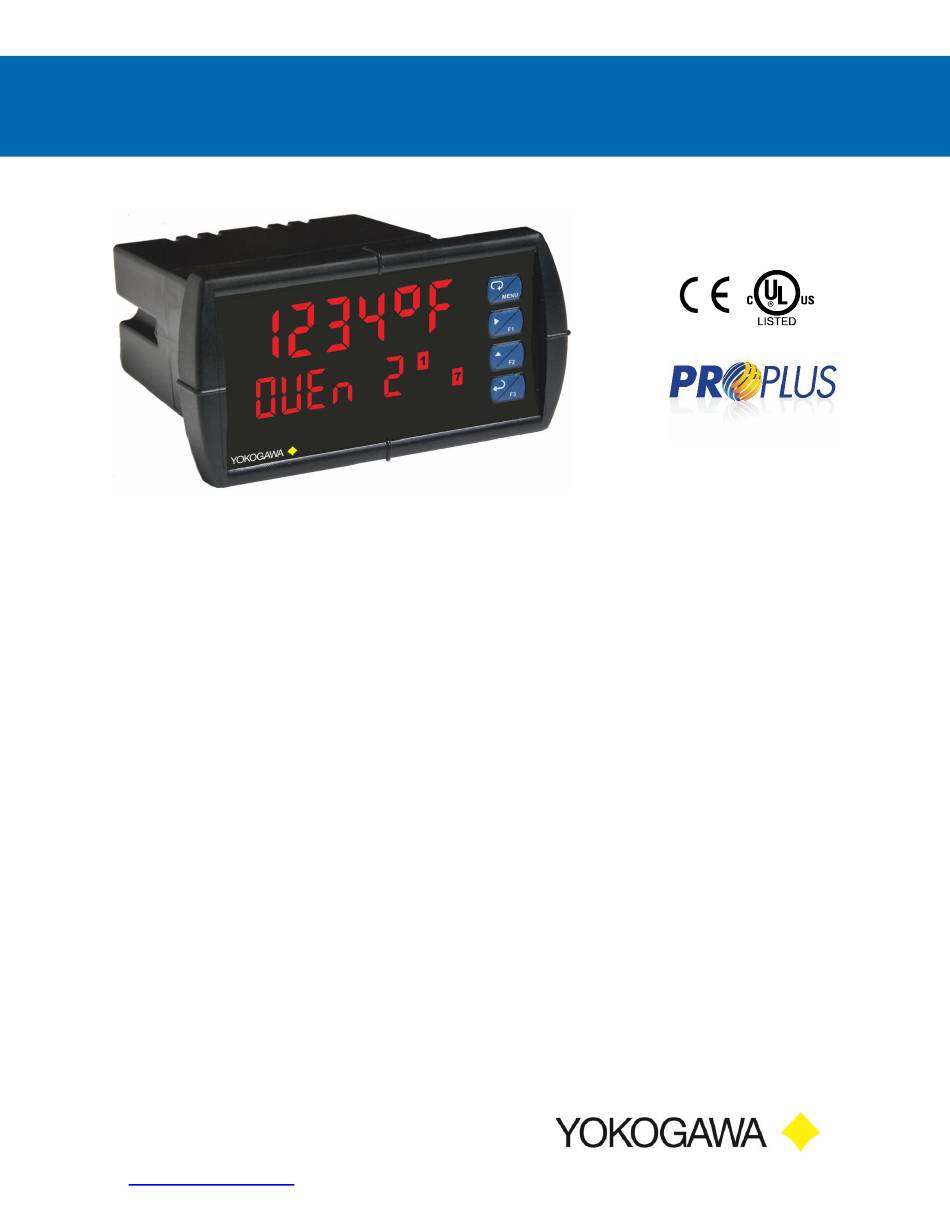

YPP7000 Temperature Meter
Instruction Manual
•
1/8 DIN Digital Panel Temperature Meter with NEMA 4X, IP65 Front
•
J, K, T, E, R, S, B, N, C Thermocouples
•
100 or 1000 Ω Platinum, 10 Ω Copper, 120 Ω Nickel RTDs
•
Optional Isolated 4-20 mA Output Turns the Meter into a Temperature Transmitter
•
1° or 0.1° Resolution
•
Averages up to 10 RTD Sensors
•
Automatic Cold Junction Compensation
•
Dual-Line 6-Digit Display, 0.6" (15 mm) & 0.46" (12 mm)
•
2 or 4 Relays with Interlocking Capability + Isolated 4-20 mA Output Options
•
Free PC-Based, On-Board, PROPLUS USB Programming Software
•
No Assembly Required
•
Optional SunBright Display Models for Outdoor Applications
•
Operating Temperature Range: -20 to 65°C (-4 to 149°F)
•
UL & C-UL Listed. E348677; 508 Industrial Control Equipment
•
Input Power Options: 85-265 VAC / 90-265 VDC or 12-24 VDC / 12-24 VAC
•
Programmable Display, Function Keys & Digital Input
•
External 4-Relay & Digital I/O Expansion Modules
•
RS-232 & RS-485 Serial Communication Options with Modbus RTU
•
Password Protection
•
NEMA 4X Enclosures for up to Two Meters
•
3-Year Warranty
YOKOGAWA
2 Dart Road • Newnan, Georgia 30265
Tel (800) 888-6400
www.yokogawa.com/us
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for YOKOGAWA YPP7000
Summary of Contents for YOKOGAWA YPP7000
- Page 1 YPP7000 Temperature Meter Instruction Manual • 1/8 DIN Digital Panel Temperature Meter with NEMA 4X, IP65 Front • J, K, T, E, R, S, B, N, C Thermocouples • 100 or 1000 Ω Platinum, 10 Ω Copper, 120 Ω Nickel RTDs •...
-
Page 2: Programming Software
Cancer and Reproductive Harm - www.P65Warnings.ca.gov connect the YPP7000 to your PC with the provided USB cable – do not use a different cable. DO NOT Limited Warranty... -
Page 3: Table Of Contents
YPP7000 Temperature Meter Instruction Manual Table of Contents Introduction ......................6 Ordering Information ..................6 Specifications ..................... 7 General ......................7 Temperature Input ..................8 Relays ......................8 Isolated 4-20 mA Output ................9 USB Connection ..................... 9 On-Board Digital Input (F4) ................9 Modbus RTU Serial Communications ............ - Page 4 YPP7000 Temperature Meter Instruction Manual Relay and Alarm Operation Diagrams ............25 High Alarm Operation (Set > Reset) ............. 25 Low Alarm Operation (Set < Reset) ............25 High Alarm with Fail-Safe Operation (Set > Reset) ........25 Low Alarm with Fail-Safe Operation (Set < Reset)........25 Relay Sampling Operation .................
- Page 5 Figure 1: 1/8 DIN Panel Cutout and Mounting ..........11 Figure 2. Meter Dimensions - Side View ............11 Figure 3. Meter Dimensions - Top View ............11 Figure 4. YPP7000-##0 Connectors Label ............13 Figure 5. YPP7000-##2 Connectors Label ............13 Figure 6. YPP7000-##3 Connectors Label ............13 Figure 7.
-
Page 6: Introduction
RS-232 to RS-485 isolated converter average up to ten (10) RTD sensors. YPPA8008 USB Adapter A fully loaded YPP7000 meter has the following: four YPPA8232-N USB to RS-232 non-isolated converter SPDT relays, 4-20 mA output, and one 24 VDC power... -
Page 7: Specifications
YPP7000 Temperature Meter Instruction Manual Specifications Overvoltage Installation Overvoltage Category II: Category Local level with smaller transient overvoltages than Installation Overvoltage Except where noted all specifications apply to Category III. operation at +25°C. Environmental Operating temperature range: General -20 to 65°C (-4 to 149°F) Storage temperature range: Line 1: 0.60"... -
Page 8: Temperature Input
YPP7000 Temperature Meter Instruction Manual Temperature Input Relays Thermocouple: J, K, T, E, R, S, B, N, C Inputs Rating 2 or 4 SPDT (Form C) internal and/or RTD: 100 Ω platinum (0.00385 & 0.00392 4 SPST (Form A) external; rated 3 A coefficients), 10 Ω... -
Page 9: Isolated 4-20 Ma Output
YPP7000 Temperature Meter Instruction Manual Isolated 4-20 mA Output Modbus RTU Serial Communications Output PV (temperature), max, min, set points 1-8, Source Modbus PV input, or manual control mode 1 – 247 (Meter address) Slave Id Scaling 1.000 to 23.000 mA for any display range 300 –... -
Page 10: Compliance Information
YPP7000 Temperature Meter Instruction Manual Compliance Information EU Declaration of Conformity Safety For reference, a Declaration of Conformity is available UL & C-UL Listed USA & Canada on our website www.yokogawa.com/us. UL 508 Industrial Control Equipment UL File Number E348677 Front Panel UL Type 4X, NEMA 4X, IP65;... -
Page 11: Panel Mounting Instructions
YPP7000 Temperature Meter Instruction Manual Mounting Dimensions Panel Mounting Instructions • Prepare a standard 1/8 DIN panel cutout – 3.622" x 1.772" (92 mm x 45 mm). Refer to Figure 1: 1/8 DIN Panel Cutout and Mounting below for more details. -
Page 12: Installation Overview
USB cable. We recommend that the first thing you do after taking the meter out of the box is connect the YPP7000 to your PC with the provided USB cable. DO NOT apply AC or DC power to the... -
Page 13: Connections
Use copper wire with 60°C or 60/75°C insulation for all line voltage connections. Observe all safety regulations. Electrical wiring should be performed Figure 7. YPP7000-##4 Connectors Label in accordance with all applicable national, state, and local codes to prevent damage to the meter and ensure personnel safety. -
Page 14: Power Connections
YPP7000 Temperature Meter Instruction Manual Power Connections Power connections are made to a two-terminal connector labeled POWER. The meter will operate regardless of DC polarity connection. The + and - symbols are only a suggested wiring convention. There are separate models for low voltage and high voltage power. -
Page 15: Connections For Averaging Rtd Sensors
Serial communications connection is made to an operation. RJ45 connector labeled M-LINK. For interfacing to the YPP7000, use the YPPA1232 for RS-232 or the Install the RC network at the meter's relay screw YPPA1485 for RS-485. The same port is used for terminals. -
Page 16: F4 Digital Input Connections
YPP7000 Temperature Meter Instruction Manual F4 Digital Input Connections External Relays & Digital I/O Connections A digital input, F4, is standard on the meter. This digital input should be connected with a normally The relay and the digital I/O expansion modules open closure across F4 and COM, or with an active YPPA1004 &... -
Page 17: Interlock Relay Feature
YPP7000 Temperature Meter Instruction Manual Interlock Relay Feature As the name implies, the interlock relay feature reassigns one, or more, alarm/control relays for use as interlock relay(s). Interlock contact(s) are wired to digital input(s) and activate the interlock relay. This... -
Page 18: Setup And Programming
YPP7000 Temperature Meter Instruction Manual Setup and Programming Front Panel Buttons and Status LED Indicators There is no need to recalibrate the meter when first received from the factory. Simply select the input type, ºF or ºC, and decimal point. -
Page 19: Display Functions & Messages
YPP7000 Temperature Meter Instruction Manual Display Functions & Messages Display Functions & Messages The meter displays various functions and messages Display Parameter Action/Setting during setup, programming, and operation. The Description following table shows the main menu functions and Disable relay and front messages in the order they appear in the menu. -
Page 20: Main Menu
YPP7000 Temperature Meter Instruction Manual Main Menu Display Functions & Messages The main menu consists of the most commonly used Display Parameter Action/Setting functions: Setup, Reset, Control, and Password. Description • Press Menu button to enter Programming Mode Rst HL Reset Press Enter to reset max &... -
Page 21: Setting Numeric Values
YPP7000 Temperature Meter Instruction Manual Setting the Input Signal (Input) Setting Numeric Values Enter the Input menu to set up the meter to accept The numeric values are set using the Right and Up thermocouple (tc) or RTD (rtd) inputs. The Type arrow buttons. -
Page 22: Setting The Display Parameter & Intensity (Dsplay)
YPP7000 Temperature Meter Instruction Manual Setting the Display Parameter & Display Intensity (d-Inty) Intensity (dsplay) The meter has eight display intensity levels to give the best performance under various lighting conditions. Display line 1 (line 1) can be programmed to Select intensity 8 for outdoor applications. -
Page 23: Setting The Relay Operation (Relay)
YPP7000 Temperature Meter Instruction Manual Setting the Relay Action Setting the Relay Operation Operation of the relays is programmed in the Action (relay) menu. The relays may be set up for any of the This menu is used to set up the operation of the following modes of operation: relays. -
Page 24: Programming Set And Reset Points
YPP7000 Temperature Meter Instruction Manual Programming Set and Reset Programming Time Delay Points The On and Off time delays may be programmed for each relay between 0 and 999.9 seconds. The relays High alarm indication: program set point above reset will transfer only after the condition has been point. -
Page 25: Relay And Alarm Operation Diagrams
YPP7000 Temperature Meter Instruction Manual High Alarm with Fail-Safe Relay and Alarm Operation Operation (Set > Reset) Diagrams The following graphs illustrate the operation of the relays, status LEDs, and ACK button. High Alarm Operation (Set > Reset) Note: Relay coil is energized in non-alarm condition. In case of power failure, relay will go to alarm state. -
Page 26: Relay Sampling Operation
YPP7000 Temperature Meter Instruction Manual Relay Sampling Operation Time Delay Operation The following graphs show the operation of the time delay function. When the signal crosses the set point, the relay trips and the sample time starts. After the sample time has elapsed, the relay resets. -
Page 27: Relay Operation Details
YPP7000 Temperature Meter Instruction Manual Front Panel LEDs Relay Operation Details The alarm status LEDs on the front panel are Overview available on all meters, even those without relays The relay capabilities of the meter expand its installed, and provide status indication for the... -
Page 28: Non-Latching Relay (Auto)
YPP7000 Temperature Meter Instruction Manual Non-Latching Relay (Auto) Latching Relay with Clear (Lt-Clr) In this application, the meter is set up for automatic In this application, the meter is set up for manual reset (non-latching relay). Acknowledging the alarm reset only after the signal passes the reset point while it is still present has no effect on either the LED (alarm condition has cleared). -
Page 29: Setting Up The Interlock Relay (Force On) Feature
YPP7000 Temperature Meter Instruction Manual Setting Up the Interlock Relay Interlock Relay Operation (Force On) Feature Relays 1 & 2 are configured to energize (their front panel LEDs are steady on) when SW1 & SW2 Relays 1-4 can be set up as interlock relays. To set switches (above) are closed. -
Page 30: Scaling The 4-20 Ma Analog Output (Aout)
YPP7000 Temperature Meter Instruction Manual Scaling the 4-20 mA Analog Reset Menu (reset) Output (Aout) The Reset menu is used to reset the maximum or minimum reading (peak or valley) reached by the The 4-20 mA analog output can be scaled to provide process;... -
Page 31: Setting Up The Password (Pass)
YPP7000 Temperature Meter Instruction Manual Disabling Password Protection Setting Up the Password (pass) To disable the password protection, access the The Password menu is used for programming three Password menu and enter the correct password levels of security to prevent unauthorized changes to twice, as shown below. -
Page 32: Advanced Features Menu
YPP7000 Temperature Meter Instruction Manual Advanced Features Menu Display Parameter Action/Setting To simplify the setup process, functions not needed Parity Parity Select parity for most applications are located in the Advanced Even, Odd, or None with 1 or 2 stop bits Features menu. -
Page 33: Offset Adjust (Adjust)
YPP7000 Temperature Meter Instruction Manual Recommended Calibration Points Display Parameter Action/Setting To recalibrate the meter, it is recommended to use nmref Measured Enter the measured the Fahrenheit scale; this will give a greater degree of temp reference temperature accuracy to the calibration. The scale can be changed... -
Page 34: Noise Filter Bypass (Bypass)
RS-485 option is required; see Ordering Information on page 6 for details. • DO NOT connect any equipment other than Yokogawa’s expansion modules, cables, or meters to the RJ45 M-LINK connector. Otherwise damage will occur to the equipment and the meter. -
Page 35: Analog Output Programming (Aoutpr)
Procedure overrange condition Underrange: Analog output value with display in Wire the YPP7000 4-20 mA output to a current underrange condition loop that includes a power supply (internal or external 12 to 24 VDC), and the mA input on the Break: Analog output value when input break is digital meter. -
Page 36: Programmable Function Keys User Menu (User)
YPP7000 Temperature Meter Instruction Manual Programmable Function Keys Function Keys & Digital I/O Available Settings User Menu (user) Refer to the following table for descriptions of each The User menu allows the user to assign the front available function key or digital I/O setting. -
Page 37: Internal Temperature Calibration (Ical)
YPP7000 Temperature Meter Instruction Manual 10. This completes the calibration of all the Internal Temperature Calibration thermocouple ranges. (ICAL) The meter is factory calibrated prior to shipment to read temperature in degrees Fahrenheit with calibration equipment that is certified to NIST standards. -
Page 38: Meter Operation
YPP7000 Temperature Meter Instruction Manual Meter Operation Maximum/Minimum Readings The max & min readings (peak & valley) reached by The meter is capable of accepting a variety of the process can be displayed either continuously or thermocouples and RTDs. momentary:... -
Page 39: Troubleshooting
YPP7000 Temperature Meter Instruction Manual Troubleshooting Reset Meter to Factory Defaults When the parameters have been changed in a way The rugged design and the user-friendly interface of that is difficult to determine what’s happening, it might the meter should make it unusual for the installer or be better to start the setup process from the factory operator to refer to this section of the manual. -
Page 40: Factory Defaults & User Settings
YPP7000 Temperature Meter Instruction Manual Factory Defaults & User Settings Parameter Display Default Setting Off 4 The following table shows the factory setting for most Off delay relay 4 0.0 sec of the programmable parameters on the meter. ignore Input break relay 1... -
Page 41: Troubleshooting Tips
YPP7000 Temperature Meter Instruction Manual Troubleshooting Tips This meter is a highly sophisticated instrument with an extensive list of features and capabilities. If the front panel buttons are used to program the meter, it may be a difficult task to keep everything straight. That is why we strongly recommend the use of the free PROPLUS software for all programming activities. -
Page 42: Sales And Technical Support
YPP7000 Temperature Meter Instruction Manual How to Contact Yokogawa Corporation of America Sales and Technical Support Call: (800) 888-6400 Email: meters-instr@us.yokogawa.com For the latest version of this manual please visit www.yokogawa.com/us YOKOGAWA 2 Dart Road • Newnan, Georgia 30265 Tel (800) 888-6400 www.yokogawa.com/us...
