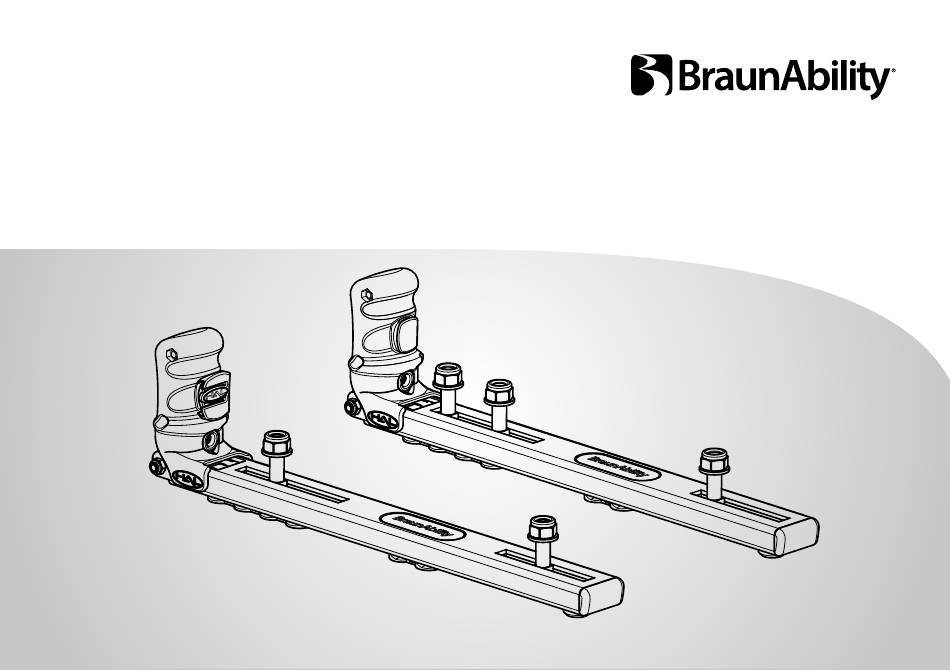

- Page 1 HAL lockable A removable, and easy-to-operate seat fixture Installation and user manual...
- Page 4 If you have any questions about your adaptation, please contact your installation engineer. If you want to know more about us and our range of car adaptation solutions visit www.braunability.eu. Once again, thank you for placing your confidence in our products!
- Page 5 HAL lockable Safety Hand Actuated Lockable (HAL) Installation Fitting the HAL lockable to the seat legs Operation Fixing the seats into the rails Removing the seat from the rails Care instructions...
- Page 6 HAL lockable Safety Hand Actuated Lockable (HAL) Handle Push button Location M10 nyloc nuts wheel & M10 washers Feet...
-
Page 7: Installation
HAL lockable Installation Fitting HAL lockables to seat legs 35-40 Nm Remove the bolts and Ensure the seat is placed Tighten the M10 nyloc nuts washers from each HAL. facing towards the front of with a torque wrench to a the vehicle. - Page 8 HAL lockable Installation Adjusting HAL setting to the rail Adjust the HAL lockable to the thickness depth of the rail profile. Setting 1: Standard rail Try and lock the seat by pushing the handle forward to the locked position. If the handle locks smoothly and the seat doesn’t rattle;...
-
Page 9: Operation
HAL lockable Operation Fixing the seat into the rails Before locating the seat into Align both HAL wheels To lock the seat into the rail, the rail, unlock the HAL, by into the rail, tilt the seat push the handle forward to... -
Page 10: Care Instructions
HAL lockable Operation Removing the seat from the rails To release the seat from the Tip the seat backwards and rail, push the handle forward remove from the rail. while pressing the push button, then pulling the handle fully back. - Page 11 ECE R14, ECE R17 and ECE R145. and ISO 14001:2015 Illustrations, descriptions and specifications in the user manual are based on current product information. BraunAbility Europe AB reserves the right to make alterations without previous notice. © 2025 BraunAbility Europe AB...
- Page 12 BraunAbility Europe AB Åkerivägen 7 Phone: +46 302 254 00 443 61 Stenkullen E-mail: info@braunability.eu Sweden www.braunability.eu...
