U-Line H-11453 Quick Start Manual

π
H-11453
TOP SHELF FOR
Z-RACK
TOOLS NEEDED
Phillips Allen Wrench
Screwdriver (included)
T-Bar x 2
NOTE: Small bolts come assembled on T-Bar.

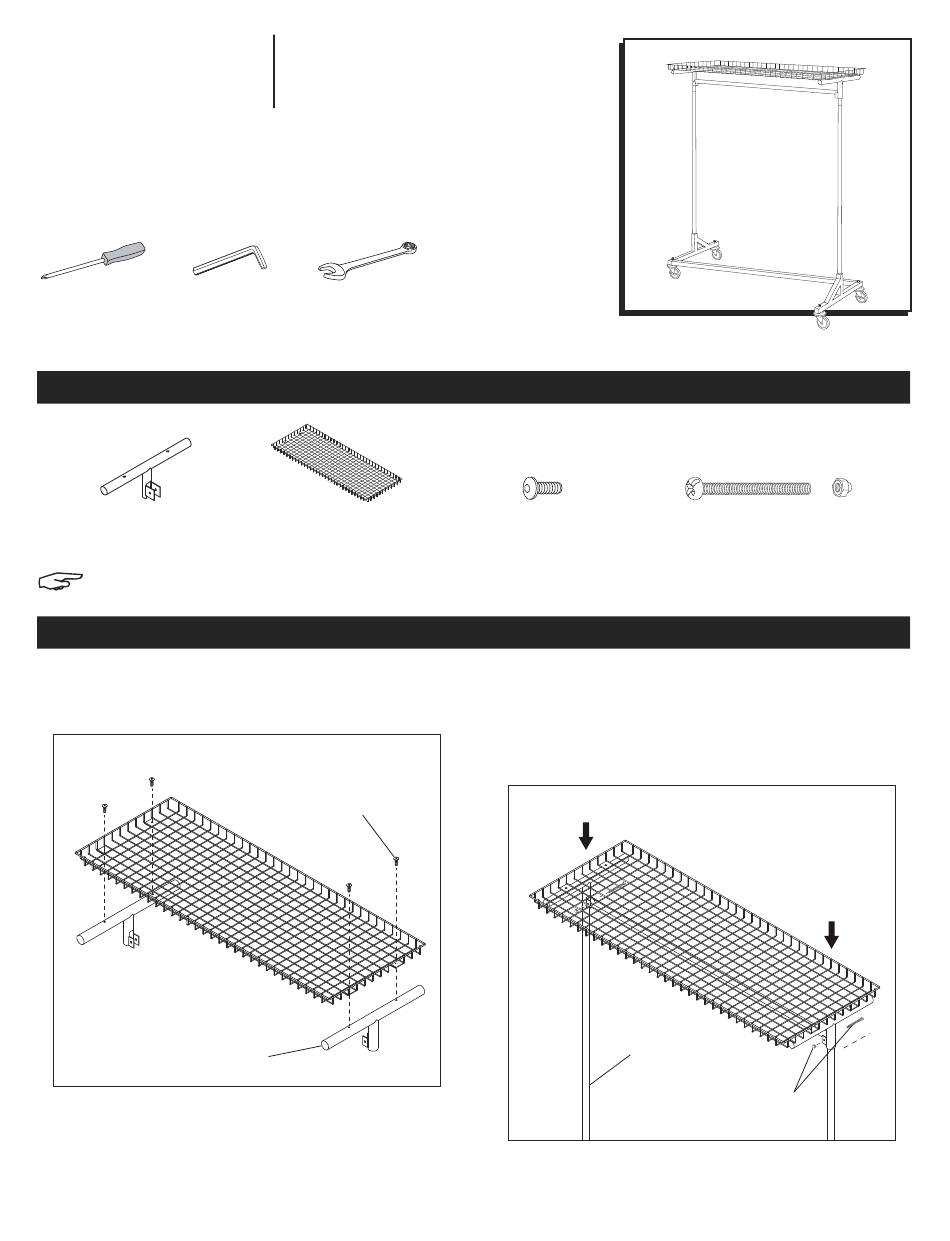

1. Attach T-Bars to top shelf using small bolts. Tighten
with Allen wrench. (See Figure 1)
Figure 1
PAGE 1 OF 3
1-800-295-5510
uline.com
Wrench
(optional)
Shelf x 1
INSTALLATION
Small Bolt
T-Bar
PARTS
Small Bolt x 4
2. Slide assembled shelf onto Z-Rack. (See Figure 2)
3. Use large bolt and cap nut to secure shelf to Z-Rack.
Tighten with Phillips screwdriver and wrench if
needed. (See Figure 2)
Figure 2
Z-Rack
Para Español, vea página 2.
Pour le français, consulter la page 3.
Large Bolt with Cap Nut x 2
Large Bolt With
Cap Nut
