Homelegance 2320F-1 Assembling Instructions

* DO NOT TIGHTEN BOLTS UNTIL COMPLETELY ASSEMBLED
2320F-1/ 2320-1 PARTS LISTS
NO. SKETCH DESCRIPTION
A
Headboard
2320F-3/ 2320-3 PARTS LISTS
NO.
DESCRIPTION
SKETCH
B
RSF Side Rail
C
LSF Side Rail
D
Footboard
E
Slat Support Leg
F
Slat Roll
MADE IN VIETNAM / FABRIQUÉ AU VIETNAM

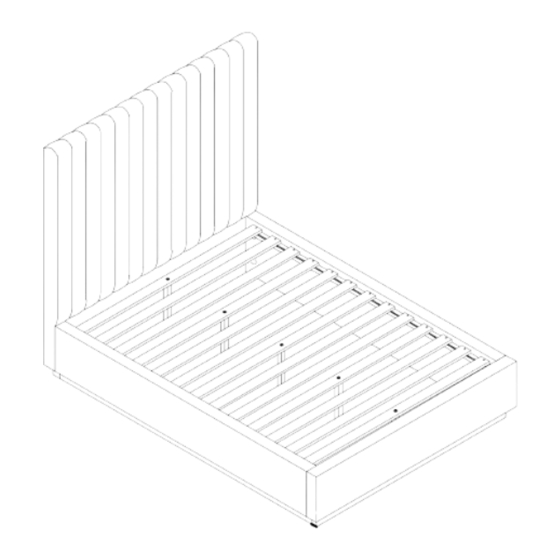

ASSEMBLING INSTRUCTIONS
ITEM NO.: 2320F-1 Full Headboard
2320-1 Queen Headboard
2320F-3 Full Footboard with Rails & Slats
2320-3 Queen Footboard with Rails & Slats
Thank you for purchasing this product. Please take time to read and follow the instructions below.
Check that you have all parts and hardware before assembly. Parts apparently missing are often found
in the packing materials. If you do not have all the parts listed, have your dealer contact us and they be
sent to you immediately.
It is recommended to install protective pads under all legs and support to avoid damage or
scratches when placing furniture on a wood floor or orther hard surface, and to limit Indentation
and prevent discoloration if placing on carpet.
QTY NO.
SKETCH
1 PC 1
2
3
QTY
1 PC
4
1 PC
5
1 PC
6
* ABOVE HARDWARE ARE PACKED IN 2320-3/ 2320F-3
5 PCS
FOR ASSEMBLY
1 ROLL /
13 PCS
HARDWARE LISTS
DESCRIPTION SIZE -DIMENSION
Ø5/16 " x 2-3/16"
Full - Thread Bolt
Ø5/16" x 1-3/16"
Curve Washer
Ø5/16"
Hex Nut
Screw #4 x 1-3/16"
Open Wrench
Screwdriver Not Provided
QTY
8 PCS
8 PCS
8 PCS
26 PCS
1 PC
Page: 1/4
