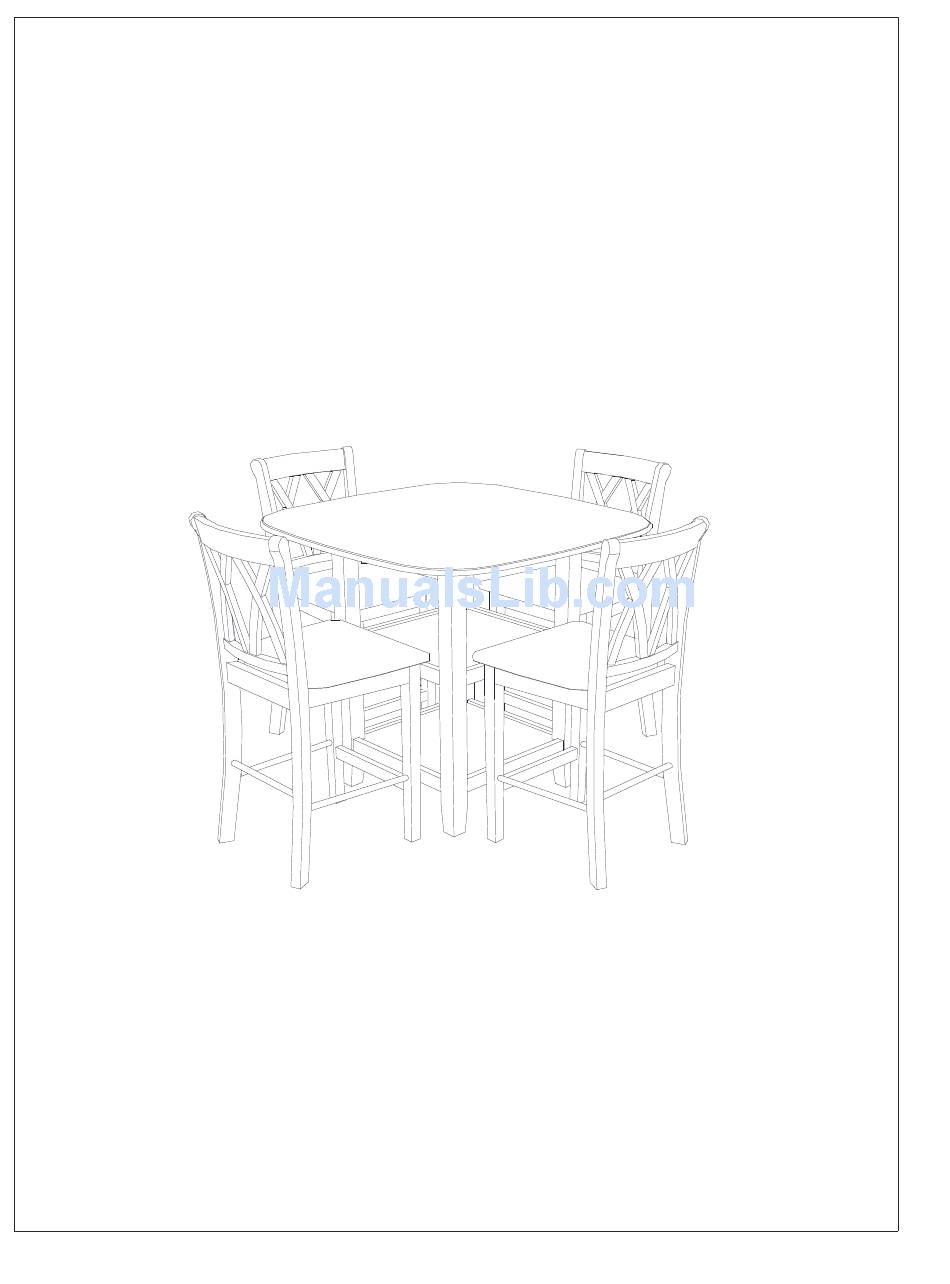

ASSEMBLY INSTRUCTIONS
5pcs Pack Counter Height Set
This page lists all the contents included in the box. Please take time to identify the
hardware as well as the individual components to this product. As you unpack and
prepare for assembly, place the contents on a carpeted or padded area to protect
them from damage.
c l e a n i n g & c a r e
damp soft cloth. Do not use abrasive cleaners. Hardware may loosen over time.
Periodically check that all connections are tight.
A Phillips head screwdriver is necessary for assembly.
ITEM: 2514BK-36
Black Finish
Treat surface with care. Clean surfaces with a dry or
1

Advertisement

loading

Summary of Contents for Homelegance Norman 2514BK-36

  • Page 1 ASSEMBLY INSTRUCTIONS ITEM: 2514BK-36 5pcs Pack Counter Height Set Black Finish This page lists all the contents included in the box. Please take time to identify the hardware as well as the individual components to this product. As you unpack and prepare for assembly, place the contents on a carpeted or padded area to protect them from damage.
  • Page 3 STEP 1 REQUIRED HARDWARE IN THIS STEP DESCRIPTION SKETCH ALLEN BOLT 4 PCS 4 PCS SPRING WASHER FLAT WASHER 4 PCS 1 PC ALLEN WRENCH LEVELER 2 PCS Attach table shelf (C) to the table legs (B) using Allen bolts (1), spring washers (2) and flat washers (3) as shown.
  • Page 4 STEP 3 Turn the assembly upright. Place table top (A) down to the assembly unit as shown, making sure table legs secure into top STEP 4 REQUIRED HARDWARE IN THIS STEP DESCRIPTION SKETCH ALLEN BOLT 4 PCS 4 PCS SPRING WASHER FLAT WASHER 4 PCS 1 PC...
  • Page 5 STEP5 Turn the table upright. The table is now ready for use...
  • Page 6 REQUIRED HARDWARE IN THIS STEP STEP 6 DESCRIPTION SKETCH 7 PCS SPRING WASHER FLAT WASHER 7 PCS 1 PC OPEN WRENCH 4 PCS LONG BOLT SHORT BOLT 3 PCS Attach seat frame (F) to chair back frame (D) using short bolts (6), long bolts (5), spring washers (2) and flat washers (3) as shown.
  • Page 7 STEP 8 REQUIRED HARDWARE IN THIS STEP DESCRIPTION SKETCH 4 PCS 4 PCS SPRING WASHER FLAT WASHER 4 PCS 1 PC OPEN WRENCH 6 PCS WOOD SCREW Attach chair left and right front legs (G & H) to seat frame (F) with flat washers (3), spring washers (2), and nuts (8) as shown.
  • Page 8 STEP 9 Turn the chair upright. The chair is now ready for use Repeat Step 6-8 to assemble the remaining chairs.
